PO 14538 LT (960480071-00) - Poulan Lawn Tractor (2013-11) ENGINE Parts Diagram

Lawn Tractor

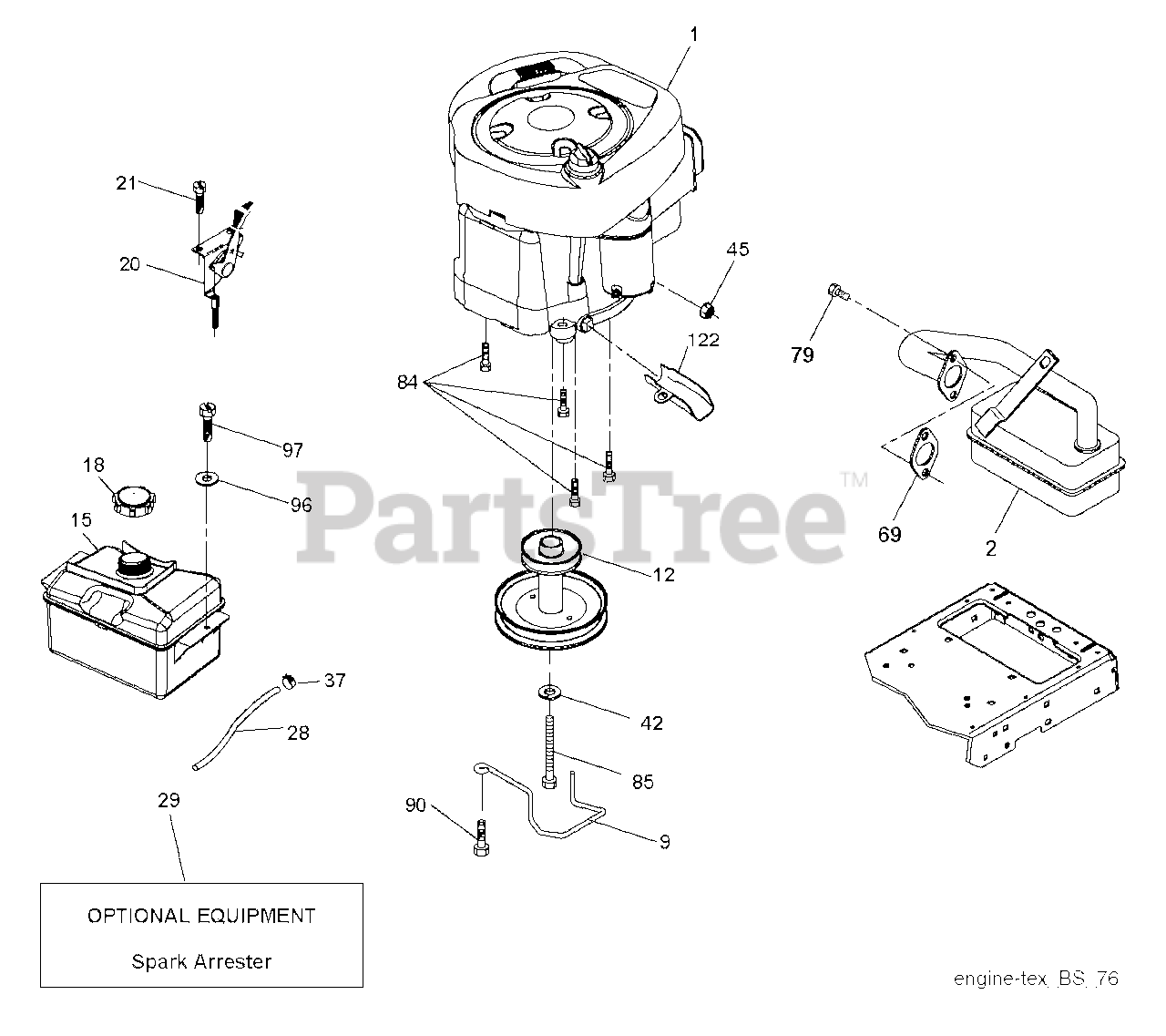

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: ENGINE B S MODEL NO 31R607-0011-G1 (586254601)

$

$

Not available

2

Poulan 532137352

MUFFLER.LT.BRIGGS.14HP.IC/OHV

$53.99

$

In Stock, Qty 19

0

9

Poulan 532194319

KEEPER.BELT.ENGINE.3.25

$13.99

$

In Stock, Qty 5

0

12

Poulan 532401985

PULLEY ENGINE
(Superseded to 586729001)

$33.99

$

Usually ships in 3-10 days

0

15

Poulan 581289901

FUEL.TANK.ASM.1.5.GAL.NON-EPA

$62.99

$

In Stock, Qty 6

0

18

Poulan 581176101

CAP.FUEL.2 WAY VENT

$39.99

$

In Stock, only 2 left!

0

20

Poulan 532170545

(Superseded to 583045801)

$35.99

$

In Stock, only 2 left!

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 9

0

28

Poulan 532137040

LINE.FUEL.20
(Superseded to 587044820)

$14.99

$

In Stock, Qty 10

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$203.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

45

Poulan 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

69

Poulan 532165291

(Superseded to 532272293)

$14.99

$

Usually ships in 3-10 days

0

79

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

84

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

85

Poulan 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.99

$

In Stock, only 2 left!

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

96

Poulan 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

97

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

122

Poulan 532421922

EXTENSION DRAIN OIL

$31.99

$

In Stock, Qty 6

0
