PO 175A42 LT (960480024-00) - Poulan Lawn Tractor (2011-09) DRIVE Parts Diagram

Lawn Tractor

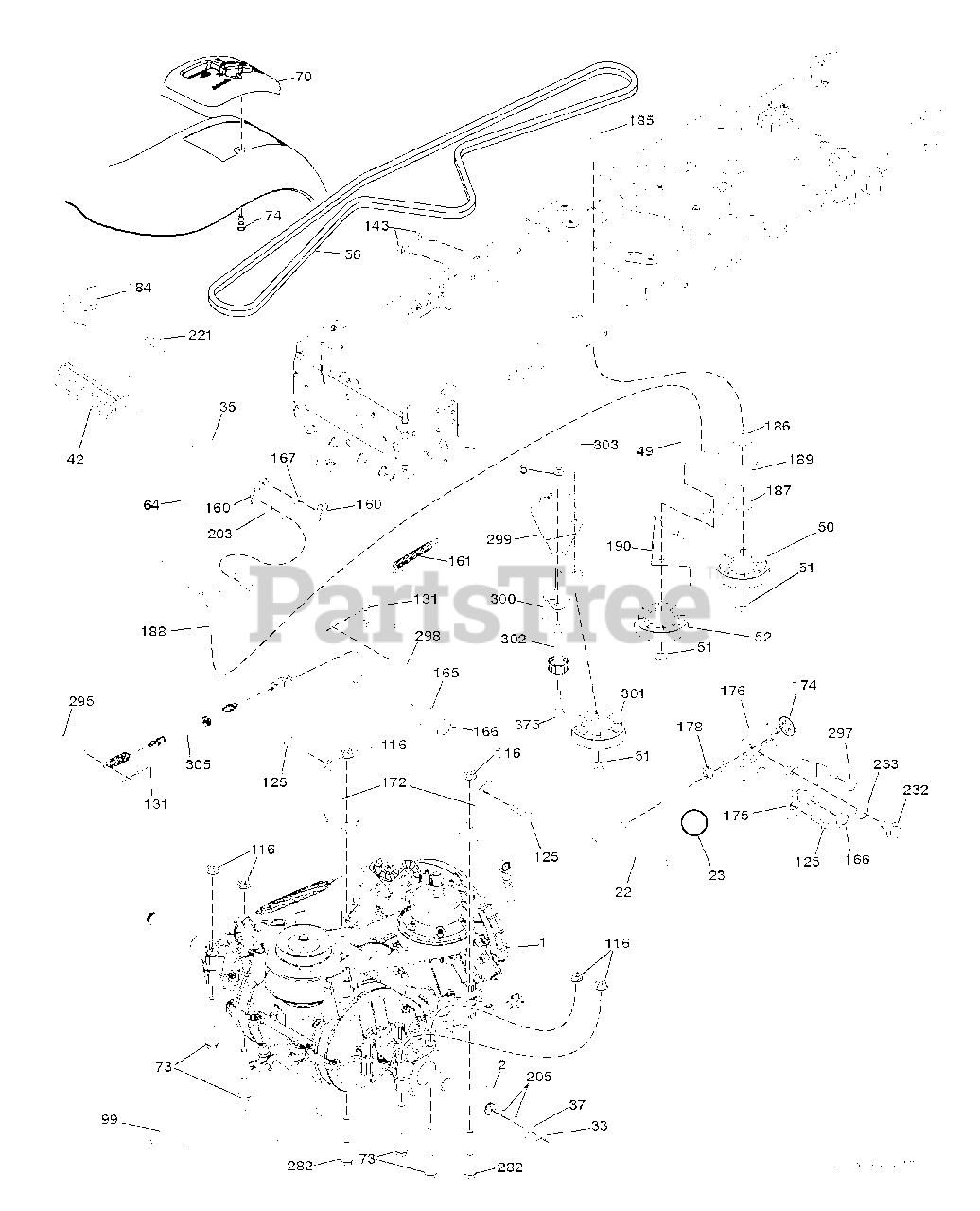

DRIVE Parts Diagram

  • Title

1

Poulan 000000000

Note: TRANSMISSION GENTRANS (415663)

$

$

Not available

2

Poulan 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 8

0

5

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

22

Poulan 532421063

ROD.SHIFT.LT.TEX.VARIATOR

$42.99

$

Usually ships in 3-10 days

0

23

Poulan 532106933

KNOB T (1/2-HOLE)

$7.49

$

In Stock, only 4 left!

0

33

Poulan 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

35

Poulan 532197722

ROD.BRAKE.PARKING.LT.T

$12.99

$

Usually ships in 3-10 days

0

37

Poulan 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

42

Poulan 532124872

(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

49

Poulan 872110614

BOLT
(Superseded to 596136201)

$3.99

$

In Stock, Qty 8

0

50

Poulan 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Poulan 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Poulan 532197253

BELT.DRIVE.MOWER.TEX.42"
(Superseded to 592855001)

$30.99

$

In Stock, Qty 20+

0

64

Poulan 532196200

SHAFT.ASM.PEDAL.BRAKE.

$34.99

$

Usually ships in 3-10 days

0

70

Poulan 532440323

CONSOLE.AUTO.VARIATOR.BLACK

$24.99

$

Usually ships in 3-10 days

0

73

Poulan 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

74

Poulan 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

99

Poulan 532427340

ROD.BYPASS.VARIATOR

$

$

Not available

116

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

125

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

131

Poulan 876020312

(Superseded to 876020308)

$

$

Not available

143

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

160

Poulan 532169484

RETAINER CLIP
(Superseded to 596029401)

$3.99

$

In Stock, Qty 14

0

161

Poulan 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

165

Poulan 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.49

$

Usually ships in 3-10 days

0

166

Poulan 532429164

NUT.PUSH.625

$6.49

$

In Stock, Qty 6

0

167

Poulan 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

172

Poulan 583974201

STRAP.TORQUE.VARIATOR

$3.99

$

In Stock, only 1 left!

0

174

Poulan 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Poulan 532415677

SHAFT.ASM.SHIFT.VARIATOR

$42.99

$

Usually ships in 3-10 days

0

176

Poulan 532196214

ARM.CLEVIS.ROD.SHIFT

$7.49

$

Usually ships in 3-10 days

0

178

Poulan 532197456

SPRING.SHIFT.GT2006

$6.49

$

In Stock, only 2 left!

0

184

Poulan 532441504

HANDLE.PARKING.BRAKE.LTTEX.667

$7.99

$

Usually ships in 3-10 days

0

185

Poulan 872110622

BOLT

$3.99

$

In Stock, only 3 left!

0

186

Poulan 532194321

SPACER.RETAINER

$7.49

$

In Stock, only 1 left!

0

187

Poulan 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$3.99

$

In Stock, Qty 18

0

188

Poulan 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Poulan 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Poulan 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, Qty 19

0

203

Poulan 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

205

Poulan 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

221

Poulan 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

232

Poulan 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

233

Poulan 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0

282

Poulan 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 2 left!

0

295

Poulan 532420306

PIN.CLEVIS.183

$4.99

$

Usually ships in 3-10 days

0

297

Poulan 532420223

NUT.PUSH.1/4

$4.99

$

Usually ships in 3-10 days

0

298

Poulan 532415694

PIN.CLEVIS.CBL.BRK.VARIATOR.TX

$2.99

$

Usually ships in 3-10 days

0

299

Poulan 532415683

BRACKET.MOUNT.IDLERS

$10.99

$

In Stock, only 2 left!

0

300

Poulan 532415681

KEEPER.IDLERS.REAR.VARIATOR

$6.49

$

Usually ships in 3-10 days

0

301

Poulan 532415680

PULLEY.IDLER.V-GROOVE

$31.99

$

In Stock, Qty 20+

0

302

Poulan 532415666

RB PULLEY.IDLER.FLAT.2.0"OD RP
(Superseded to 581583601)

$31.99

$

In Stock, Qty 6

0

303

Poulan 872110618

BOLT CARRIAGE

$6.49

$

Usually ships in 3-10 days

0

305

Poulan 532415692

CABLE.BRAKE.VARIATOR.TEX

$

$

Not available

375

Poulan 874760636

BOLT

$6.49

$

In Stock, only 1 left!

0
