PO GT 20T48ST A - Poulan Lawn Tractor (2003) Mower Lift Parts Diagram

Lawn Tractor

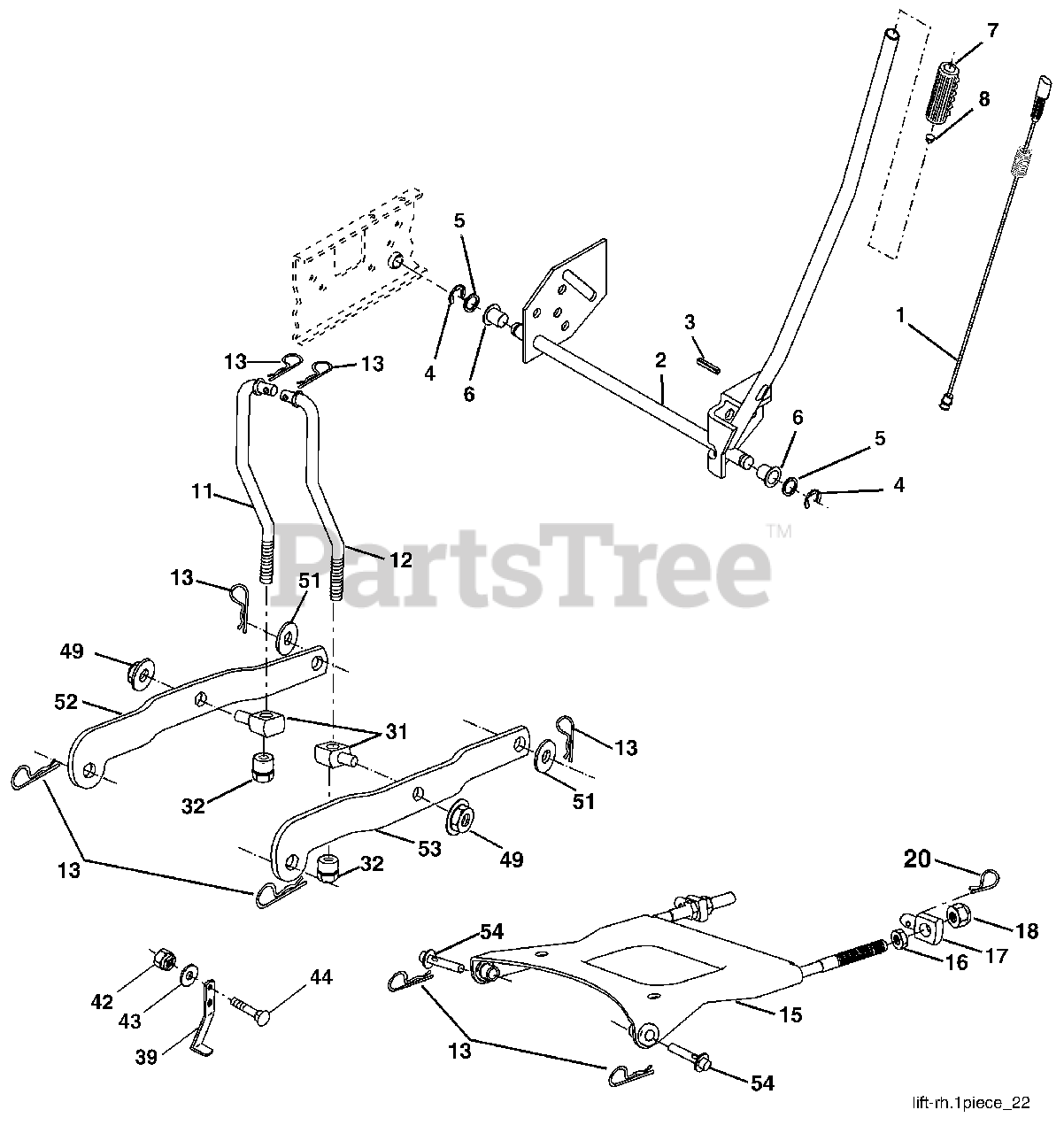

Mower Lift Parts Diagram

  • Title

1

Electrolux/AYP 159461

Wire Asm Inner/Sprg W/plunger
(Superseded to 532159461)

$15.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 159476

Shaft Asm Lift RH w/Inf
(Superseded to 532159476)

$

$

Not available

3

Electrolux/AYP 138284

Pin Groove
(Superseded to 532138284)

$6.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 12000002

E Ring #5133-62

$

$

Not available

5

Electrolux/AYP 19211621

Washer 21/32 X 1 X 21 Ga
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 120183X

Bearing Nylon Blk 629 Id
(Superseded to 532120183)

$6.49

$

In Stock, Qty 7

0

7

Electrolux/AYP 109413X

Grip Handle
(Superseded to 532109413)

$6.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 124526X

Button Plunger

$

$

Not available

11

Electrolux/AYP 185365

Link Lift LH
(Superseded to 583143501)

$10.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 185367

Link Lift RH
(Superseded to 583143601)

$

$

Not available

13

Murray 4939M

Retainer Spring

$

$

Not available

15

Electrolux/AYP 185370

Plate Asm Suspension
(Superseded to 532175562)

$109.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73350800

Nut Hex Jam 1/2-13 unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 175689

Trunnion
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP 73800800

Locknut Hex W/Washer Insert 1/2-13
(Superseded to 596433401)

$3.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 176205

Trunnion
(Superseded to 532176205)

$7.49

$

In Stock, only 2 left!

0

32

Electrolux/AYP 178698

Nut Lift Link

$

$

Not available

39

Electrolux/AYP 176199

Upstop
(Superseded to 583076001)

$7.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 73680600

Nut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 19131612

Washer 13/32 x 1 x 12 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 72240608

Bolt 3/8-16 x 1
(Superseded to 872240608)

$4.99

$

Usually ships in 3-10 days

0

49

Murray 145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

51

Electrolux/AYP 19171416

Washer 17/32 x 7/8 x 13 Ga.
(Superseded to 819171416)

$4.99

$

In Stock, Qty 13

0

52

Electrolux/AYP 175378

Arm Suspension Rear LH
(Superseded to 532175378)

$54.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 175802

Arm Suspension Rear RH
(Superseded to 532175802)

$103.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 175560

Pin Flange
(Superseded to 532175560)

$11.99

$

Usually ships in 3-10 days

0
