PP 1000 E - Poulan Pro Weed 'n Edge Edger Attachment, Type 2 Edger Attachment Assembly Type 2 Parts Diagram

Weed 'n Edge Edger Attachment, Type 2

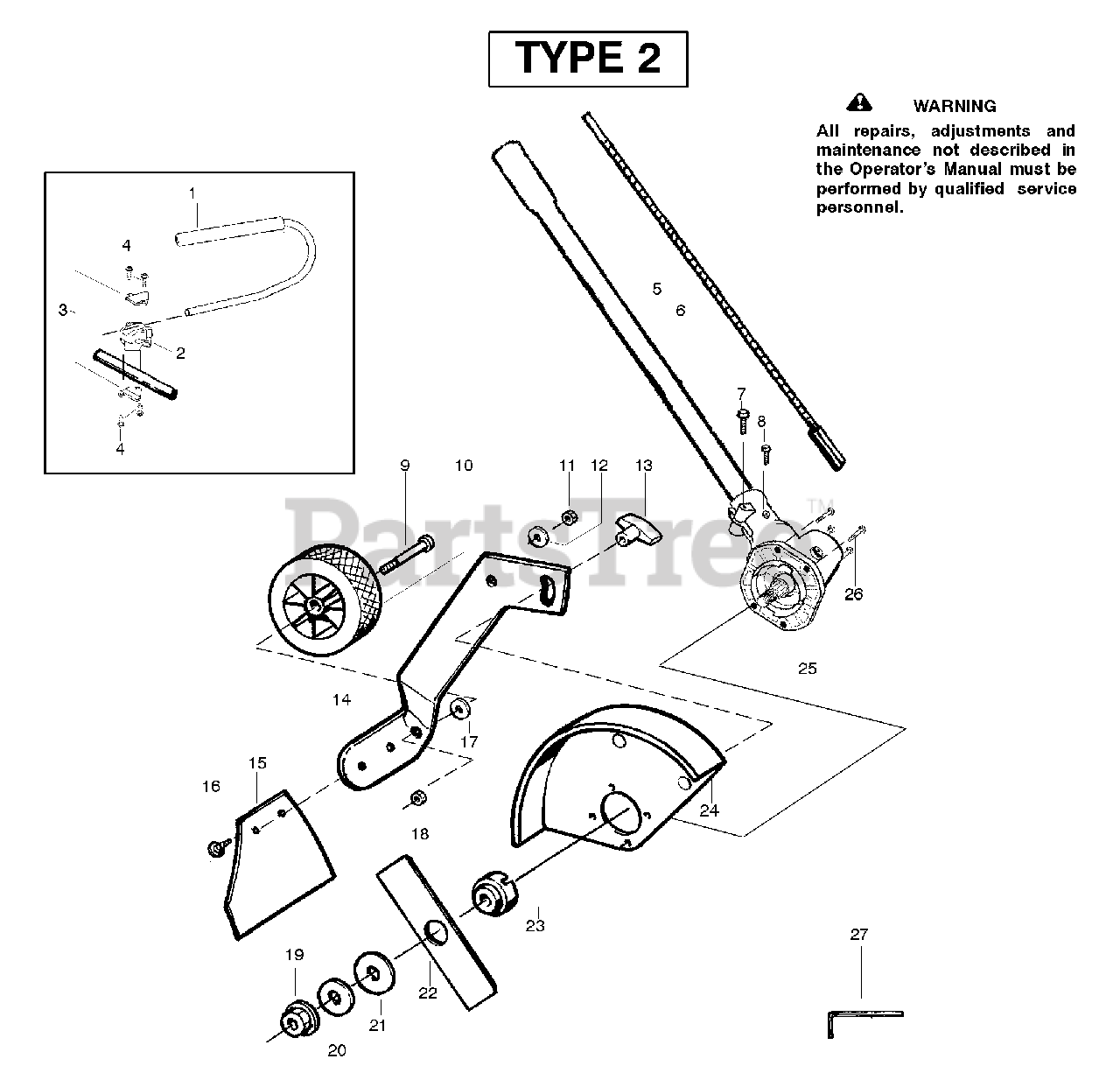

Edger Attachment Assembly Type 2 Parts Diagram

  • Title

1

Poulan 530071394

Kit-Handlebar

Note: (incl. grip,cap,decal)

$12.99

$

Usually ships in 3-10 days

0

2

Poulan 530058766

Clamp-Handlebar (7/8")

$

$

Not available

2

Poulan 530058765

Clamp-Handlebar ( 1")

$

$

Not available

3

Poulan 530058563

Bracket-Clamp

$4.99

$

In Stock, only 1 left!

0

4

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

5

Poulan 530071863

Assy.-Driveshaft

$27.99

$

In Stock, only 1 left!

0

6

Poulan 530096183

Flexshaft-Split boom

$

$

Not available

7

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

8

Poulan 530016224

Screw-Alignment

$4.99

$

In Stock, Qty 5

0

9

Poulan 530015981

Bolt-Shoulder Axle

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 530095125

Wheel-4"

Note: (rubber)

$8.99

$

In Stock, only 1 left!

0

11

Poulan 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

12

Poulan 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530092059

Knob

$9.99

$

In Stock, only 1 left!

0

14

Poulan 530053009

Bracket-Adj. Wheel

$12.99

$

Usually ships in 3-10 days

0

15

Poulan 530071251

Kit-Mud Flap

Note: (incl.#16)

$7.49

$

In Stock, only 1 left!

0

16

Poulan 530053012

Fastener-Mud Flap

$3.99

$

In Stock, only 1 left!

0

17

Poulan 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

19

Poulan 530015793

Nut-Flange

Note: (L.H.)

$6.49

$

In Stock, Qty 10

0

20

Poulan 530016240

Washer-Belleville

$6.49

$

In Stock, Qty 5

0

21

Poulan 530015792

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

22

Poulan 952711625

Accy-7.5" Blade

$

$

Not available

23

Poulan 530054623

Dustcup

$10.99

$

In Stock, only 1 left!

0

24

Poulan 530071384

Kit-Edger Guard
(Superseded to 530071930)

$21.99

$

Usually ships in 3-10 days

0

25

Poulan 530071586

Kit-Gearbox

$

$

Not available

26

Poulan 530016312

Screw

$6.49

$

In Stock, Qty 6

0

27

Poulan 530031159

Wrench-Hex (5/32")

$4.99

$

In Stock, only 1 left!

0

Poulan 530164833

Manual

Note: Not Shown

$

$

Not available

Poulan 530095894

Hanger-Attachment

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

Poulan 545005908

Decal-Shaft Warning

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

Poulan 530053138

Decal-Guard Warning
(Superseded to 545074501)

Note: Not Shown

$

$

Not available
