PP 1036 S - Poulan Pro Lawn Tractor HOOD Parts Diagram

Lawn Tractor

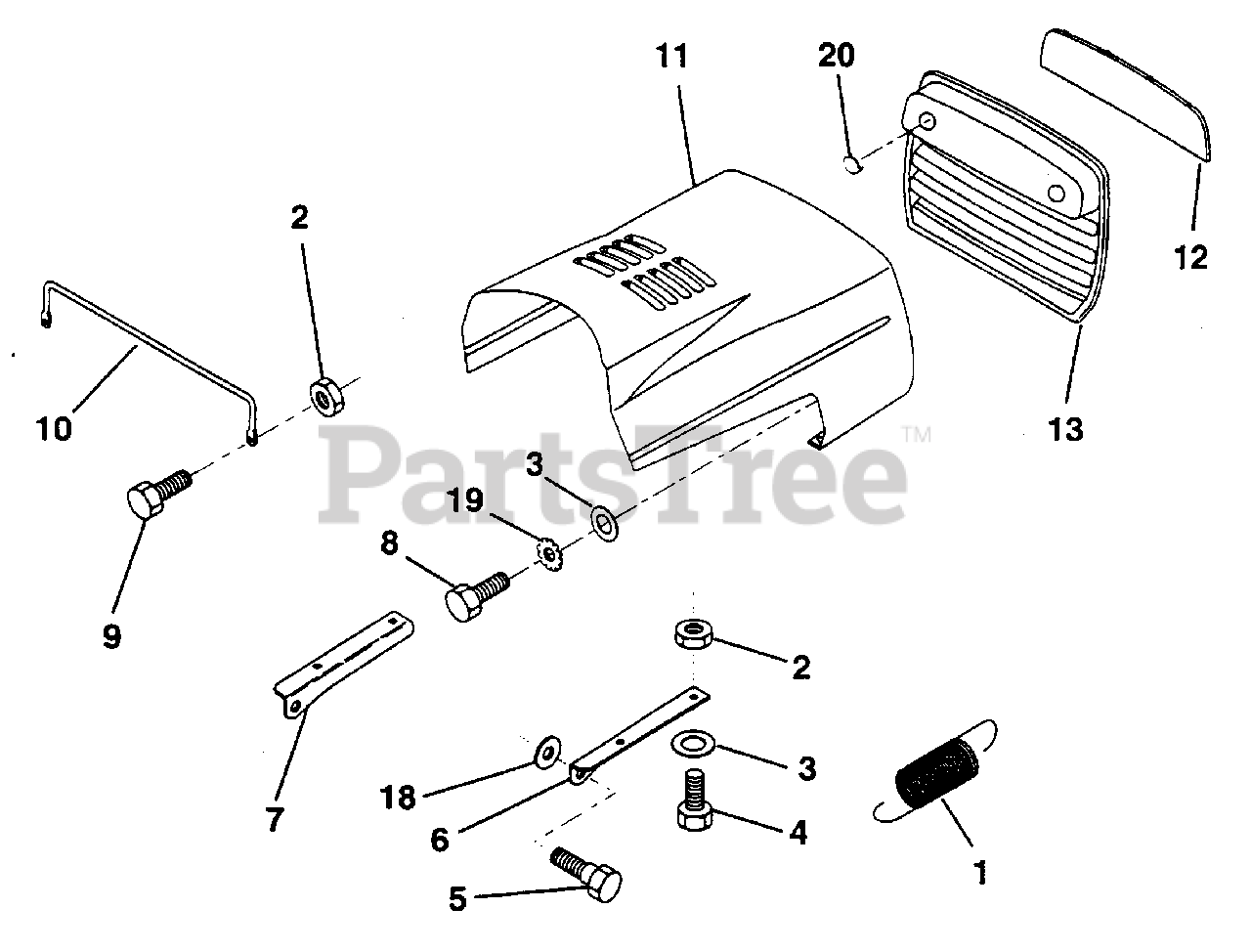

HOOD Parts Diagram

  • Title

1

Poulan 532124657

Extension, Spring (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

2

Poulan 873510400

Nut, Hex, Keps 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

3

Poulan 819091016

Washer, 9/32 x 5/8 x 16 Ga. (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 11

0

4

Poulan 874780410

Bolt, Hex Fin. 1/4-20 UNC 5/8 Gr.5 (AYP part number)
(Superseded to 74780410)

$3.99

$

In Stock, only 3 left!

0

5

Poulan 532126675

Bolt, Shoulder (AYP part number)
(Superseded to 532139888)

$6.49

$

In Stock, Qty 9

0

6

Poulan 532122549

Bracket, Hood R. H. (AYP part number)
(Superseded to 122549X)

$

$

Not available

7

Poulan 532122548

Bracket, Hood L.H. (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

8

Poulan 817411310

Screw, Fin. Hex #13-16 Hi-Lo x 5/8 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 874780412

Bolt, Hex Fin. 1/4-20 x 3/4 Gr. 5 (AYP part number)
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 532123693

Brace, Hood (AYP part number)

$

$

Not available

11

Poulan 532125386

Hood (AYP part number)

$

$

Not available

12

Poulan 532122035

Lens, Plate, Grill (AYP part number)

$14.99

$

Usually ships in 3-10 days

0

13

Poulan 532127029

Grill (AYP part number)

$

$

Not available

18

Poulan 819111116

Washer 11/32 x 11/16 x 16 Ga. (AYP part number)
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 811030400

Washer Lock 1/4 int/ext tooth (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

20

Poulan 532131139

Plug Socket Light

$

$

Not available
