PP 1036S A - Poulan Lawn Tractor (1993) ENGINE / THROTTLE Parts Diagram

Lawn Tractor

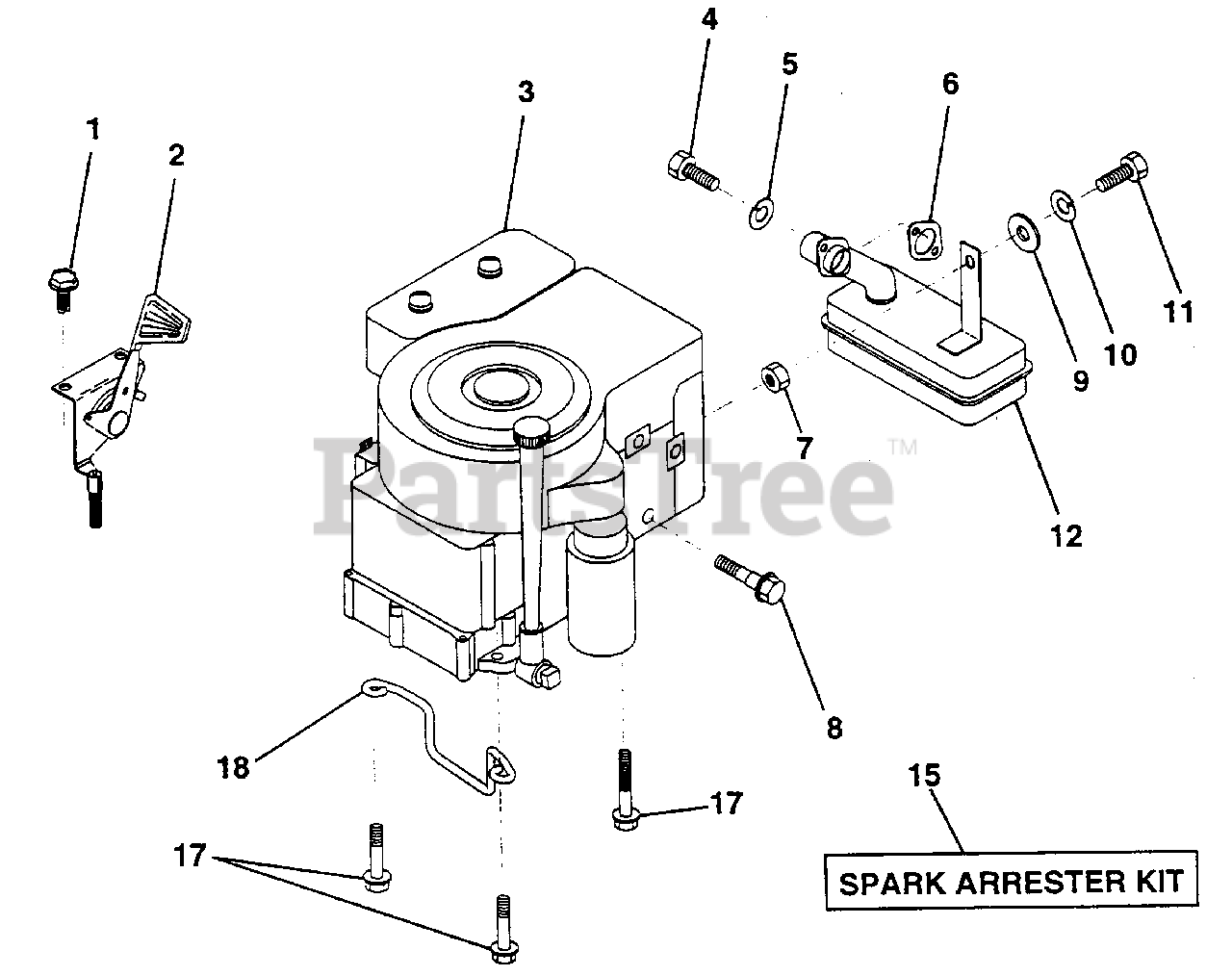

ENGINE / THROTTLE Parts Diagram

  • Title

1

Electrolux/AYP 817720408

Screw, Hex Thd. Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532132752

Control, Throttle

$24.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 871070512

Screw, Hex, Cap 5/16-18 x 3/4
(Superseded to 532192334)

$

$

Not available

5

Electrolux/AYP 810040500

Washer, Lock Heavy Helical Spring 5/16

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532125593

Gasket, Exhaust
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 873220500

Nut, Hex 5/16-18

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532121094

Bolt, Shoulder 5/16

$2.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 819101216

Washer 5/16 x 3/4 x 16
(Superseded to 734115441)

$4.99

$

In Stock, Qty 11

0

10

Electrolux/AYP 810040400

Washer, Lock Heavy Helical Spring 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

11

Electrolux/AYP 874760416

Bolt, Hex Fin 1/4-20 UNC x 1
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532137437

Muffler

$242.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532137180

Arrester, Spark (Optional equipment)
(Superseded to 532121851)

$

$

Not available

17

Electrolux/AYP 817490624

Screw, Hex Wsh Hd Thdrol 3/8-16 x 1-1/2
(Superseded to 874930624)

$

$

Not available

18

Electrolux/AYP 532126636

Keeper, Ground Drive Belt

$8.99

$

Usually ships in 3-10 days

0
