PP 1036S A - Poulan Lawn Tractor (1993) SEAT Parts Diagram

Lawn Tractor

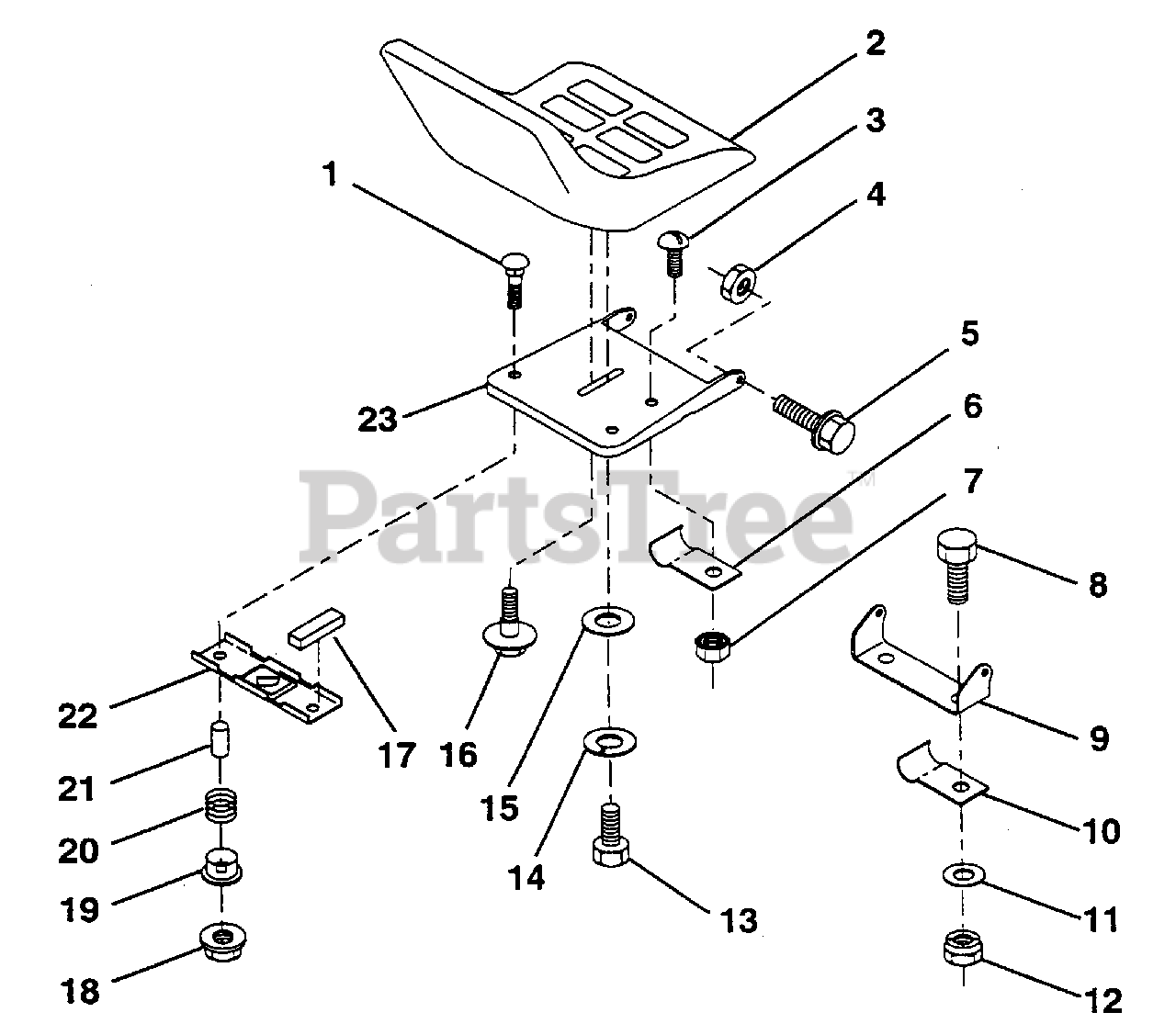

SEAT Parts Diagram

  • Title

1

Electrolux/AYP 872050411

Bolt, Carriage 1/4-20 x 1-3/8

$

$

Not available

2

Electrolux/AYP 532127427

Seat
(Superseded to 532140119)

$206.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 874641008

Screw, Slotted Pan Head #10-32 x 1/2

$2.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 532105529

Bolt, Shoulder 5/16-18 UNC
(Superseded to 532139888)

$6.49

$

In Stock, Qty 10

0

6

Electrolux/AYP 532124967

Clip, Insulated

$

$

Not available

7

Electrolux/AYP 873951000

Nut, Keps #10-32 UNF

$5.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 874760612

Bolt, Fin Hex 3/8-16 UNC x 3/4

$4.99

$

In Stock, Qty 19

0

9

Electrolux/AYP 532126656

Bracket, Pivot Seat

$

$

Not available

10

Electrolux/AYP 532126471

Clip, Insulated

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 819133210

Washer 13/16 x 2 x 10 Ga.
(Superseded to 596135501)

$3.99

$

In Stock, Qty 19

0

12

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 874780814

Bolt, Fin Hex 1/2-13 UNC x 7/8 Gr. 5
(Superseded to 871110814)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 810040800

Washer, Lock Hvy Helical Spring

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 819171912

Washer, 17/32 x 1-3/16 x 12 Ga.

$7.49

$

In Stock, only 2 left!

0

16

Electrolux/AYP 532127018

Bolt, Shoulder

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532121251

Strip, Foam

$

$

Not available

18

Electrolux/AYP 532123976

Nut, Hex Large Flange Lock
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532121250

Spring, Compression

$7.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532134300

Spacer, Split 28 Id. x .96 Lg.

$7.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 532121246

Bracket, Switch, Mounting
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 532131451

Pan, Seat
(Superseded to 532140552)

$21.99

$

Usually ships in 3-10 days

0
