PP 1036S A - Poulan Lawn Tractor (1993) TRANSAXLE Parts Diagram

Lawn Tractor

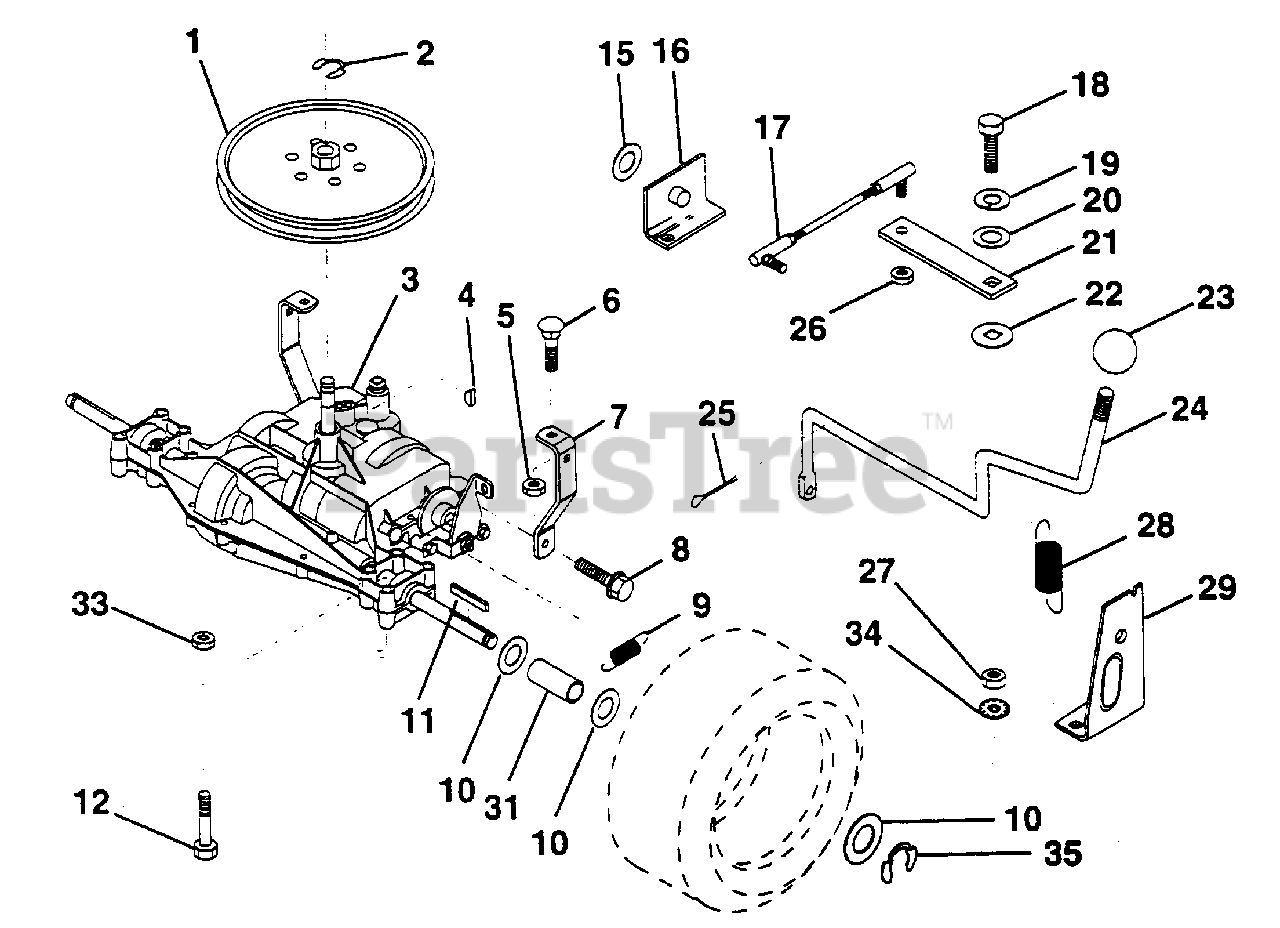

TRANSAXLE Parts Diagram

  • Title

1

Electrolux/AYP 532123385

Pulley

$34.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 812000028

Ring, Retainer
(Superseded to 532002267)

$7.49

$

In Stock, Qty 20+

0

4

Electrolux/AYP 532125096

Key, Woodruff #9

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 872140506

Bolt, Carriage 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 532123378

Strap, Torque
(Superseded to 123378X)

$

$

Not available

8

Electrolux/AYP 871490512

Screw 5/16 - 18 x 3/4

$

$

Not available

9

Electrolux/AYP 532110422

Spring, Brake
(Superseded to 532146682)

$8.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

11

Electrolux/AYP 532123583

Key, Square

$4.99

$

In Stock, Qty 8

0

12

Electrolux/AYP 874760644

Bolt, Fin Hex 5/16-18 x 2-1/2

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 819171616

Washer 17/32 x 1 x 16 Ga.
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 532124600

Support, Handle Shift L. H.

$

$

Not available

17

Electrolux/AYP 532123632

Link, Shift

$

$

Not available

18

Electrolux/AYP 871040412

Bolt, Fin Hex 1/4-28 UNF x 3/4 Gr. 8

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

20

Electrolux/AYP 819091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 734115441)

$4.99

$

In Stock, Qty 13

0

21

Electrolux/AYP 532123484

Arm, Shift

$

$

Not available

22

Electrolux/AYP 532105701

Washer, Shift Plate

$6.49

$

In Stock, only 1 left!

0

23

Electrolux/AYP 532106933

Knob, Shift Control

$7.49

$

In Stock, only 4 left!

0

24

Electrolux/AYP 532128215

Shift Rod

$

$

Not available

25

Electrolux/AYP 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 873810500

Nut, Hex Nylon
(Superseded to 873610500)

$

$

Not available

27

Electrolux/AYP 873510500

Nut, Keps 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 532128085

Extension, Spring

$

$

Not available

29

Electrolux/AYP 532128084

Support, Handle Shift R. H.

$

$

Not available

31

Electrolux/AYP 532123409

Spacer, Split

$

$

Not available

33

Electrolux/AYP 8736800600

Nut Crownlock 3/8 - 16

$

$

Not available

34

Electrolux/AYP 811050500

Washer External Tooth 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 812000001

E-Ring

$4.99

$

In Stock, Qty 20+

0
