PP 1036S - Poulan Lawn Tractor (1993) FENDER / CHASSIS Parts Diagram

Lawn Tractor

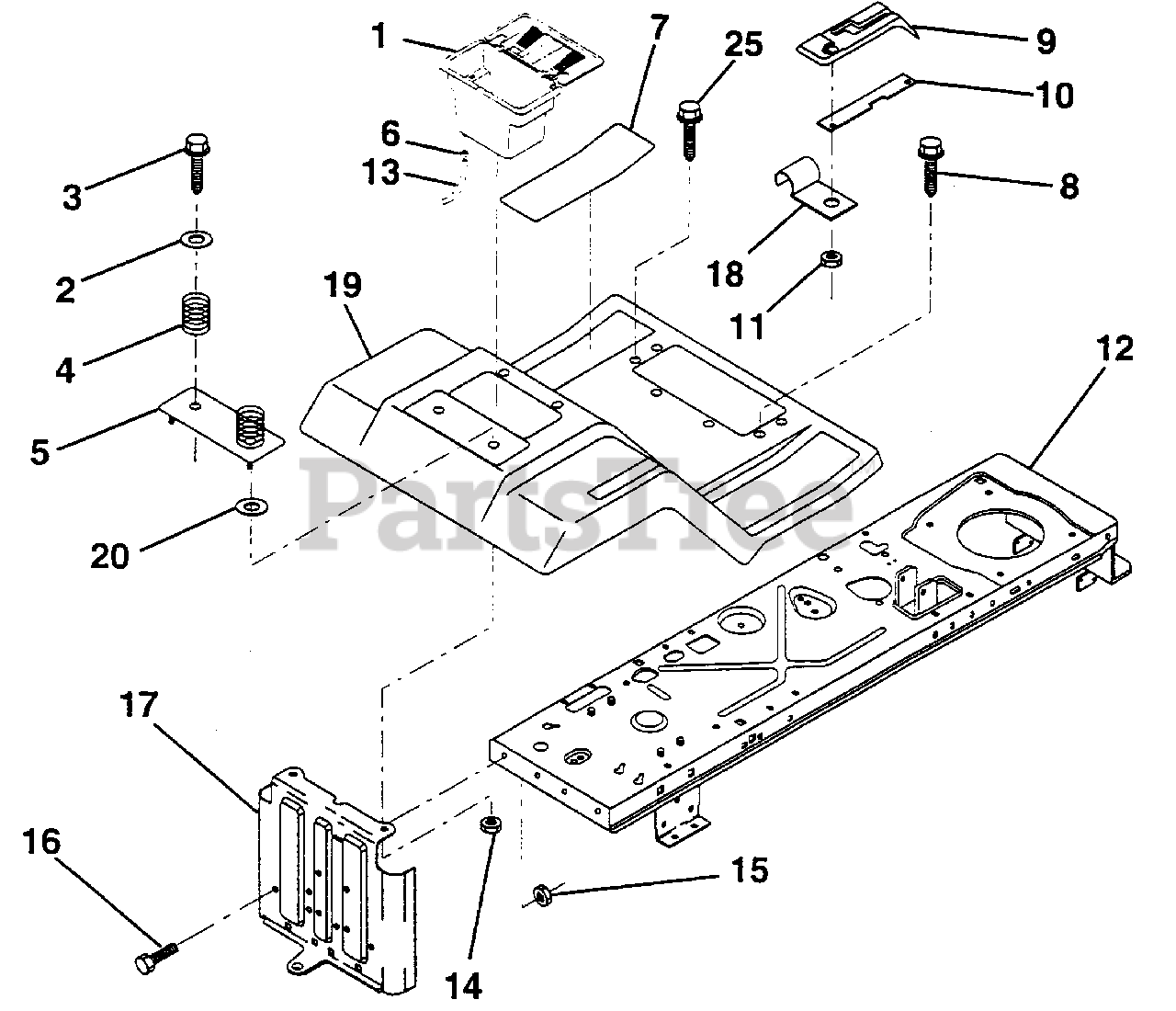

FENDER / CHASSIS Parts Diagram

  • Title

1

Electrolux/AYP 532129965

Case, Battery
(Superseded to 532144940)

$

$

Not available

2

Electrolux/AYP 819132012

Washer 13/32 x 1-1/4 x 12 Ga.

$1.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 874780612

Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4

$7.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 532124181

Spring, Compression, Seat
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

5

Electrolux/AYP 532127115

Plate, Asm. Battery
(Superseded to 127115X421)

$

$

Not available

6

Electrolux/AYP 532109596

Clamp, Hose

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532124144

Pad, Footrest

$

$

Not available

8

Electrolux/AYP 817490512

Screw, Hex Wsh. Thrdrol. 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 532126997

Console, Shift Control
(Superseded to 126997X)

$

$

Not available

10

Electrolux/AYP 532124602

Bar, Shift Lock

$

$

Not available

11

Electrolux/AYP 532124346

Nut, Self-Thrd., Wsh. Head 3/16

$4.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 532137097

Assembly, Frame
(Superseded to 532139893)

$

$

Not available

13

Electrolux/AYP 532109238

Tube, Battery Drain

$

$

Not available

14

Electrolux/AYP 873680400

Nut, Crownlock 1/4-20 UNC
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 874760512

Bolt, Hex Hd. 5/16-18 UNC x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532127880

Drawbar

$

$

Not available

18

Electrolux/AYP 532126470

Clip, Insulated

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532125140

Fender/Footrest
(Superseded to 532141266)

$

$

Not available

20

Electrolux/AYP 819091413

Washer 9/32 x 7/8 x 13 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 817490516

Screw Hx 5/16 - 18 x 1
(Superseded to 539113226)

$6.49

$

Usually ships in 3-10 days

0
