PP 105G30 (960220027-01) - Poulan Lawn Tractor (2016-08) STEERING Parts Diagram

Lawn Tractor

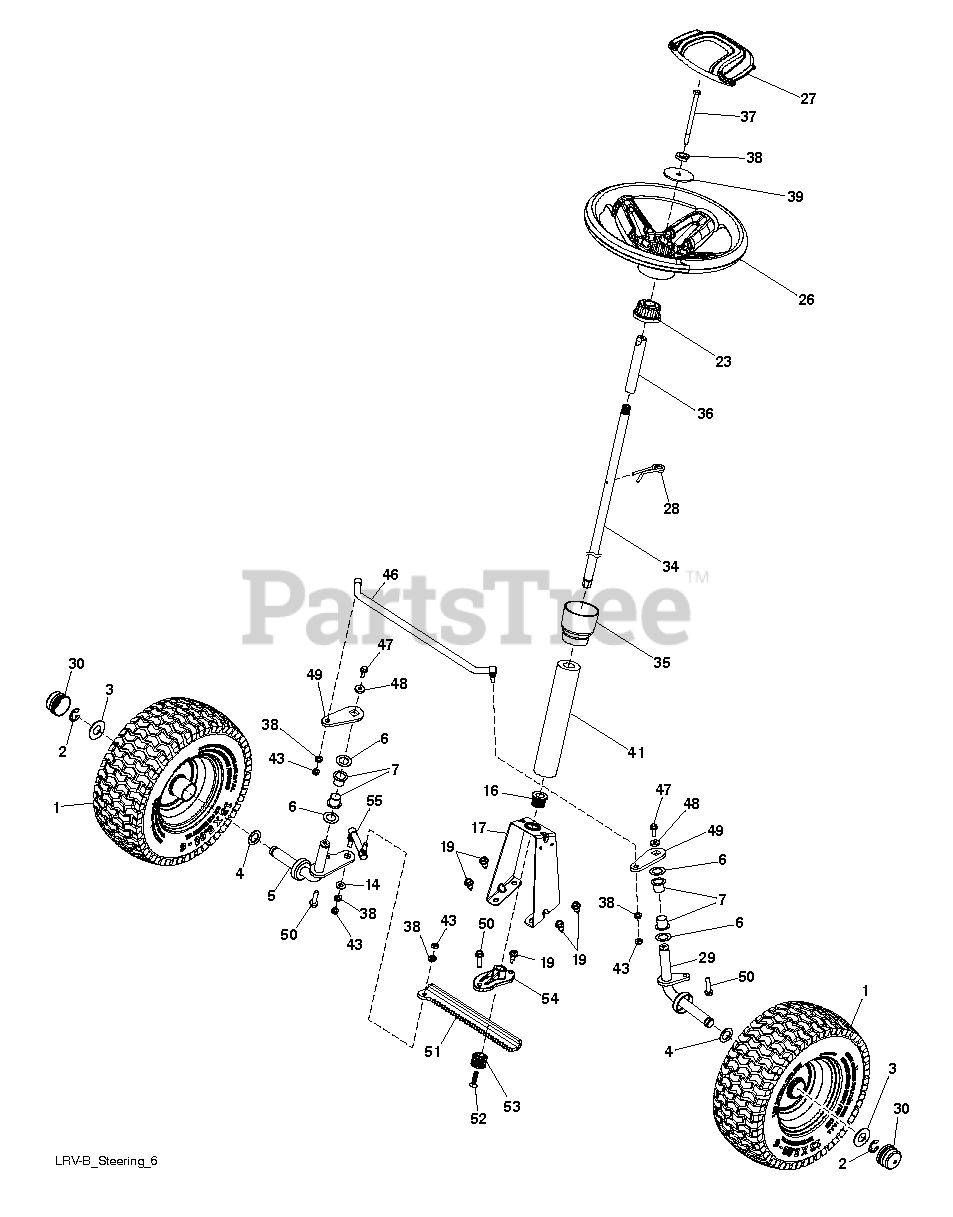

STEERING Parts Diagram

  • Title

1

Poulan 532442064

WHEEL.TUBE.13X5.00-6.YELLOW

$

$

Not available

2

Poulan 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

3

Poulan 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

4

Poulan 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

5

Poulan 588078402

SPINDLE.WELDMENT.RH.E-DIP

$26.99

$

Usually ships in 3-10 days

0

6

Poulan 532124931

(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

7

Poulan 532124937

Steering Column Bearing
(Superseded to 532003366)

$3.49

$

In Stock, Qty 20+

0

14

Poulan 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

16

Poulan 585920601

Flanged Bearing, PM 5/8

$4.99

$

In Stock, only 2 left!

0

17

Poulan 532436178

SUPPORT.STEERING.UPPER.LRV2

$12.99

$

Usually ships in 3-10 days

0

19

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

23

Poulan 532437747

STEERING.WHEEL.ADAPTER
(Superseded to 587738905)

$7.99

$

In Stock, Qty 20+

0

26

Poulan 532424551

WHEEL.STEERING.MLT.BR.YEL/OVRM

$100.99

$

Usually ships in 3-10 days

0

27

Poulan 532424553

CAP.WHL.STRNG.MULTI.BRND.YEL

$8.99

$

Usually ships in 3-10 days

0

28

Poulan 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 20+

0

29

Poulan 588078502

Spindle Weldment, LH.E-Dip

$21.99

$

Usually ships in 3-10 days

0

30

Poulan 532193268

CAP.AXLE.FRONT.YELLOW

$6.49

$

In Stock, Qty 9

0

34

Poulan 587236902

Steering Shaft, Plated

$

$

Not available

35

Poulan 532442066

BOOT.LOWER.STEERING.WHEEL.LRVB

$8.99

$

Usually ships in 3-10 days

0

36

Poulan 532444981

SHAFT.EXTENSION.STEER.SPLINED

$9.99

$

In Stock, only 1 left!

0

37

Poulan 747805104

5/16-18X6.5.HEX.HEAD.SCREW

$3.99

$

Usually ships in 3-10 days

0

38

Poulan 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 819113812

WASHER.11/32

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 532436590

FOAM.SHAFT.STEERING

$8.99

$

In Stock, only 1 left!

0

43

Poulan 873540500

NUT, CROWNLOCK

$7.49

$

In Stock, Qty 5

0

46

Poulan 587463501

Front Steering Link

$17.99

$

In Stock, only 2 left!

0

47

Poulan 589028501

SCREW.FLG.LOCKING.1/4-20X.75
(Superseded to 589028502)

Note: (589028501) SCREW

$3.99

$

In Stock, only 1 left!

0

48

Poulan 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, Qty 13

0

49

Poulan 588078302

Steering Upper Arm, Pnt E-Dip

$

$

Not available

50

Poulan 587592101

SCREW.THDROL.5/16-18X1.25.TYTT
(Superseded to 587592102)

$2.49

$

Usually ships in 3-10 days

0

51

Poulan 585920102

Steering Rack Pnt

$

$

Not available

52

Poulan 580683601

Screw Head Socket Lrvb

$4.99

$

Usually ships in 3-10 days

0

53

Poulan 580683701

(Superseded to 587738906)

$5.99

$

In Stock, Qty 7

0

54

Poulan 585920201

Steering Support Bushing

$

$

Not available

55

Poulan 585920501

Drag Link, RH

$10.99

$

Usually ships in 3-10 days

0
