PP 110 - Poulan Pro String Trimmer Drive Shaft & Cutting Head Parts Diagram

String Trimmer

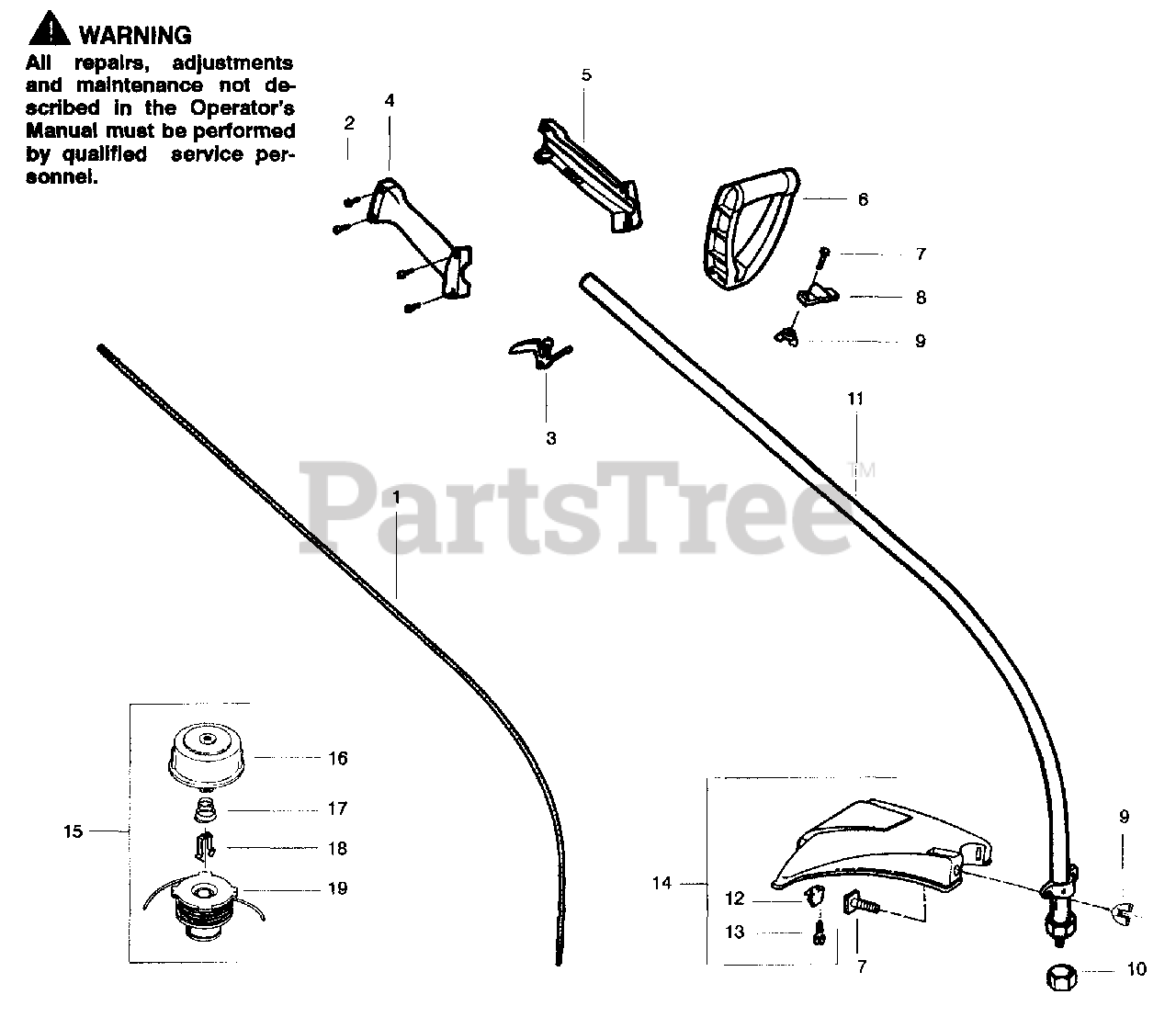

Drive Shaft & Cutting Head Parts Diagram

  • Title

1

Poulan 530053428

Drive Shaft

$

$

Not available

2

Poulan 530016179

Screw - Throttle Hsg.

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 530049107

Trigger

$4.99

$

In Stock, Qty 16

0

4

Poulan 530053029

Throttle Hsg. (Right)

$12.99

$

Usually ships in 3-10 days

0

5

Poulan 530053019

Throttle Hsg. (Left)

$

$

Not available

6

Poulan 530014222

Handle Ass'y.

$

$

Not available

7

Poulan 530015820

Bolt - Handle/Shield

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 530094847

Clamp - Assist Handle

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 530401992

Wingnut
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

10

Poulan 530094543

Dust Cup

$

$

Not available

11

Poulan 530053429

Drive Shaft Hsg. Ass'y.

$

$

Not available

12

Poulan 530052286

Line Limiter

$

$

Not available

13

Poulan 530015814

Screw - Line Limiter

$6.49

$

In Stock, Qty 20+

0

14

Poulan 530069666

Shield Kit Ass'y.

Note: (Incl. 12 & 13)

$

$

Not available

15

Poulan 952701705

Cutting Head Ass'y.
(Superseded to 952711547)

Note: (Incl. 16 - 19)

$

$

Not available

16

Poulan 530053246

Hub Ass'y.
(Superseded to 530095773)

$10.99

$

Usually ships in 3-10 days

0

17

Poulan 530053241

Spring - Return

$

$

Not available

18

Poulan 530401957

Retainer - Spool

$4.99

$

In Stock, Qty 6

0

19

Poulan 952701706

Spool w/Line
(Superseded to 952711548)

$

$

Not available

Poulan 530085856

Operator's Manual

Note: (Not Shown)

$

$

Not available

Poulan 530047899

Decal Shaft Warning

Note: (Not Shown)

$

$

Not available
