PP 113 - Poulan Pro String Trimmer DRIVE SHAFT & CUTTING HEAD Parts Diagram

String Trimmer

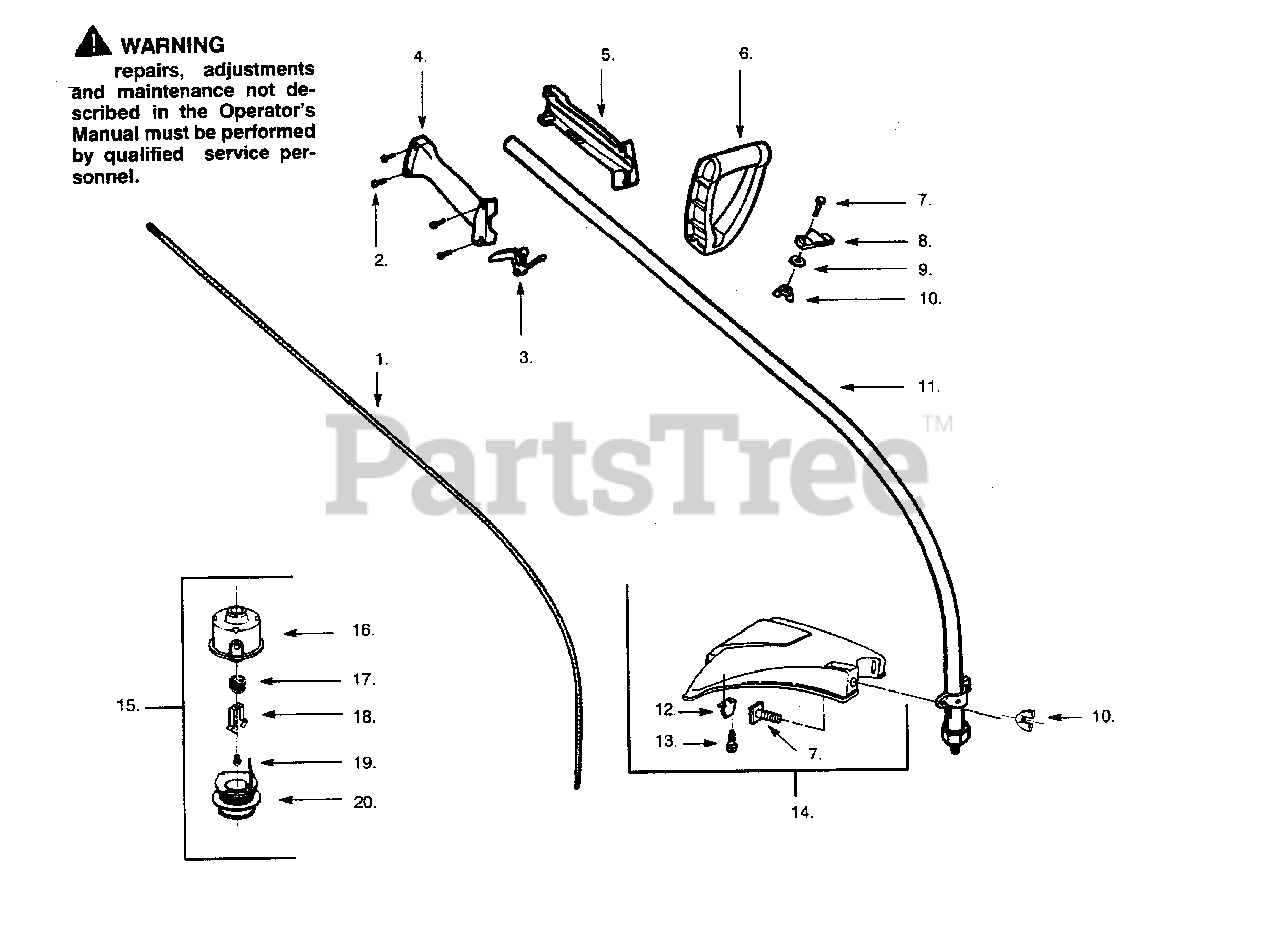

DRIVE SHAFT & CUTTING HEAD Parts Diagram

  • Title

1

Poulan 530095242

Drive Shaft

$

$

Not available

2

Poulan 530015880

Screw-Throttle Hsg.

$4.99

$

In Stock, Qty 8

0

3

Poulan 530038682

Trigger

$3.99

$

In Stock, Qty 13

0

4

Poulan 530038581

Throttle Hsg. (Right)

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 530038580

Throttle Hsg. (Left)

$6.49

$

In Stock, only 1 left!

0

6

Poulan 530038708

Assist Handle

$

$

Not available

7

Poulan 530015820

Bolt-Handle/Shield

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 530038599

Clamp-Handle

$2.49

$

In Stock, only 3 left!

0

9

Poulan 530092062

Washer-Handle

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530401992

Wingnut-Handle/Shield
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

11

Poulan 530069765

Drive Shaft Hsg. Ass'y

$

$

Not available

12

Poulan 530095238

Line Limiter

$

$

Not available

13

Poulan 530015814

Screw-Line Limiter

$6.49

$

In Stock, Qty 20+

0

14

Poulan 530069686

Shield Kit Ass'y. (Incl. 7, 10, 12 & 13)

$

$

Not available

15

Poulan 952701666

Cutting Head Ass'y. (Incl. 16-20)
(Superseded to 590267601)

$26.99

$

In Stock, Qty 6

0

16

Poulan 530069690

Hub Ass'y

$

$

Not available

17

Poulan 530401464

Spring

$

$

Not available

18

Poulan 530401466

Clip-Retainer-Head

$3.99

$

In Stock, Qty 10

0

19

Poulan 530401467

Screw w/ Washer -Head

$

$

Not available

20

Poulan 952711527

Spool w/Line

$

$

Not available

Poulan 530083932

Operator Manual

$

$

Not available

Poulan 530047899

Shaft Warning Decal

$

$

Not available
