PP 113 - Poulan Pro String Trimmer POWER UNIT Parts Diagram

String Trimmer

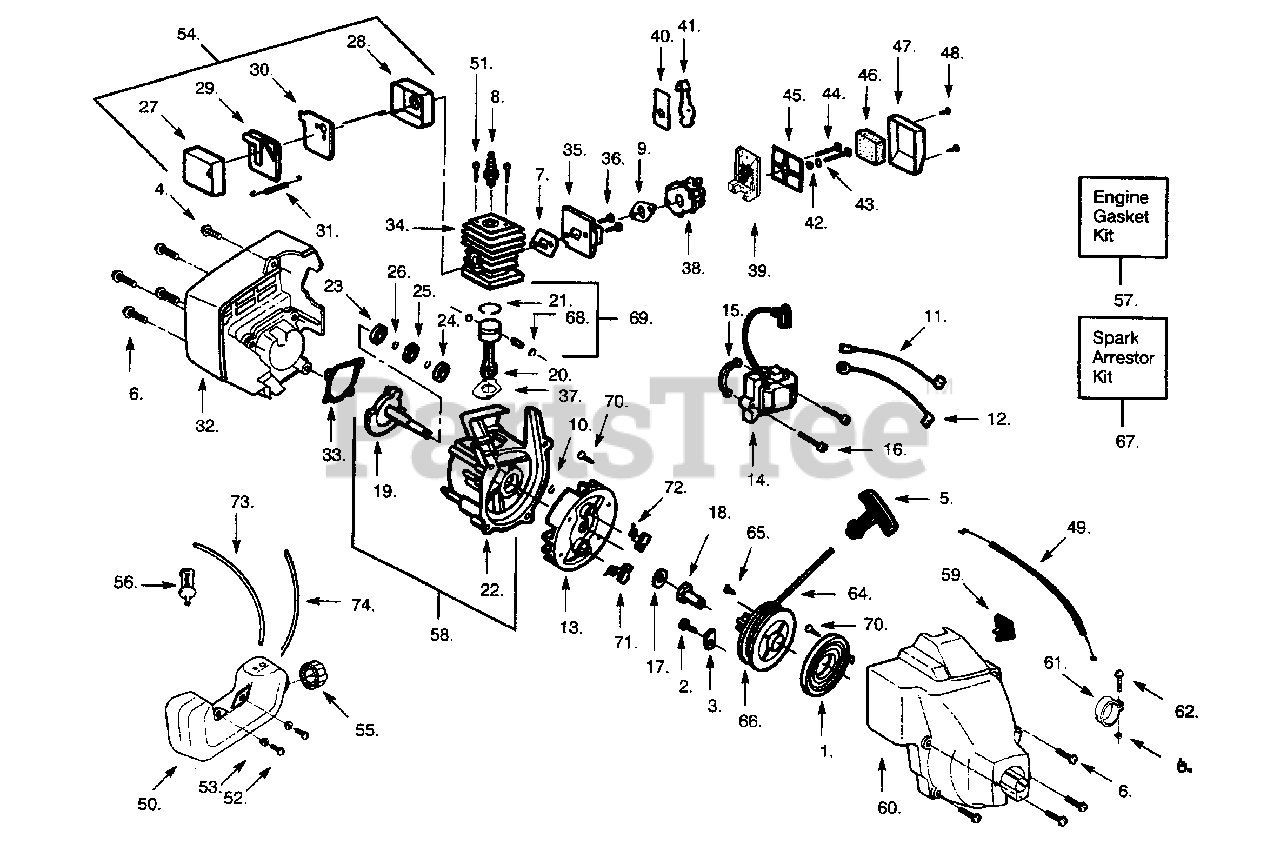

POWER UNIT Parts Diagram

  • Title

1

Poulan 530029395

Starter Spring
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

2

Poulan 530015775

Screw-Pulley

$6.49

$

In Stock, only 2 left!

0

3

Poulan 530027523

Retainer-Pulley

$7.49

$

In Stock, only 2 left!

0

4

Poulan 530015934

Screw-Shrd/Fan Hsg.

$4.99

$

In Stock, only 1 left!

0

5

Poulan 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

6

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

7

Poulan 530019233

Gasket-Cylind./Carb.

$3.99

$

In Stock, only 2 left!

0

8

Poulan 530030075

Spark Plug (RCJ 8Y)

$

$

Not available

9

Poulan 530019194

Gasket-Carb.

$6.49

$

In Stock, Qty 5

0

10

Poulan 530015945

RetainerRing-C'case

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530014663

Lead Wire

$9.99

$

Usually ships in 3-10 days

0

12

Poulan 530014662

Ground Wire

$7.49

$

Usually ships in 3-10 days

0

13

Poulan 530039149

Flywheel
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

14

Poulan 530039163

Ignition Module

$53.99

$

Usually ships in 3-10 days

0

15

Poulan 530036145

Spacer- Ignit. Module

$3.99

$

In Stock, only 3 left!

0

16

Poulan 530015954

Screw-Ignit. Module

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530015828

Washer-Thrust

$4.99

$

In Stock, only 1 left!

0

18

Poulan 530038604

Drive Coupling

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530014532

Crankshaft Ass'y.

$

$

Not available

20

Poulan 530069615

Connecting Rod Ass'y.

$24.99

$

Usually ships in 3-10 days

0

21

Poulan 530036404

Piston Ring

$

$

Not available

22

Poulan 530014861

Crankcase Ass'y.(Incl 23-26)

$

$

Not available

23

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

24

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 530019179

C'case Seal

$7.49

$

Usually ships in 3-10 days

0

26

Poulan 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 530036578

Muffler Body

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 530036577

Muffler Cover

$2.99

$

Usually ships in 3-10 days

0

29

Poulan 530038602

Muffler Baffle-Exit

$1.99

$

Usually ships in 3-10 days

0

30

Poulan 530036579

Muffler Baffle-First

$2.99

$

Usually ships in 3-10 days

0

31

Poulan 530029930

Muffler Spring
(Superseded to 530016197)

$4.99

$

In Stock, Qty 6

0

32

Poulan 530038189

Rear Shroud

$7.49

$

Usually ships in 3-10 days

0

33

Poulan 530019181

Gasket-C'case

$6.49

$

In Stock, only 4 left!

0

34

Poulan 530069618

Cylinder Kit

$84.99

$

Usually ships in 3-10 days

0

35

Poulan 530047659

Carb. Adaptor

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 530016014

Screw-Carb Adaptor

$6.49

$

In Stock, only 3 left!

0

37

Poulan 530019223

Gasket-Cylinder

$4.99

$

In Stock, Qty 6

0

38

Poulan 530069642

Carburetor Kit-WT 223 (Incl. Limiter Cap and Primer Bulb Ass'y)

$

$

Not available

39

Poulan 530038582

Air Box

$

$

Not available

40

Poulan 530038747

Choke Plate

$3.99

$

In Stock, only 3 left!

0

41

Poulan 530038686

Choke Shutter

$3.99

$

In Stock, Qty 7

0

42

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

43

Poulan 530015852

Choke Spacer

$2.49

$

In Stock, only 1 left!

0

44

Poulan 530015887

Screw-Carburetor

$4.99

$

In Stock, only 2 left!

0

45

Poulan 530036569

Filter Plate

$

$

Not available

46

Poulan 530036575

Air Filter Foam

$4.99

$

In Stock, Qty 14

0

47

Poulan 530036568

Air Filter Cover

$

$

Not available

48

Poulan 530015966

Screw-Air Box

$2.49

$

Usually ships in 3-10 days

0

49

Poulan 530036744

Throttle Cable Ass'y.
(Superseded to 530071548)

$

$

Not available

50

Poulan 530047255

Fuel Tank Ass'y

$

$

Not available

51

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 8

0

52

Poulan 530015814

Screw-Fuel Tank

$6.49

$

In Stock, Qty 20+

0

53

Poulan 530016131

Washer- Fuel Tank

$3.99

$

In Stock, only 1 left!

0

54

Poulan 530069389

Muffler Kit
(Superseded to 530069660)

$15.99

$

Usually ships in 3-10 days

0

55

Poulan 530014347

Fuel Cap Ass'y.

$8.99

$

In Stock, Qty 5

0

56

Poulan 530014362

Fuel Pickup Ass'y.
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

57

Poulan 530069616

Engine Gasket Kit (Incl. 7,9,33,37)

$9.99

$

Usually ships in 3-10 days

0

58

Poulan 530014729

C'case & C'shaft Assy. (Incl. 10, 19,22-26)

$

$

Not available

59

Poulan 530038114

On/Off Switch
(Superseded to 530071356)

$8.99

$

Usually ships in 3-10 days

0

60

Poulan 530049116

Fan Housing Ass'y

$

$

Not available

61

Poulan 530016126

Clamp-Nose Cone

$

$

Not available

62

Poulan 530015650

Screw-Nose Cone

$

$

Not available

63

Poulan 530016124

Nut-Nose Cone

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

65

Poulan 530016080

Screw-Rope Retain.

$6.49

$

In Stock, Qty 11

0

66

Poulan 530069400

Starter Pulley Kit (Incl. 65)
(Superseded to 530071786)

$7.49

$

In Stock, Qty 12

0

67

Poulan 530069380

Spark Arrestor Kit

$6.49

$

Usually ships in 3-10 days

0

68

Poulan 530015162

Piston Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

69

Poulan 530069620

Piston Kit (Incl. 21,68 & Pin)

$30.99

$

Usually ships in 3-10 days

0

70

Poulan 530015882

Screw-Flywheel

$

$

Not available

71

Poulan 530029939

Starter Dog

$

$

Not available

72

Poulan 530047570

Starter Dog Spring

$3.99

$

Usually ships in 3-10 days

0

73

Poulan 530069247

Fuel Line-Carb./Tank

$6.49

$

In Stock, Qty 20+

0

74

Poulan 530069216

Fuel Line-Prim./Tank

$6.49

$

In Stock, Qty 20+

0
