PP 1136 A - Poulan Lawn Tractor (1991) ELECTRICAL Parts Diagram

Lawn Tractor

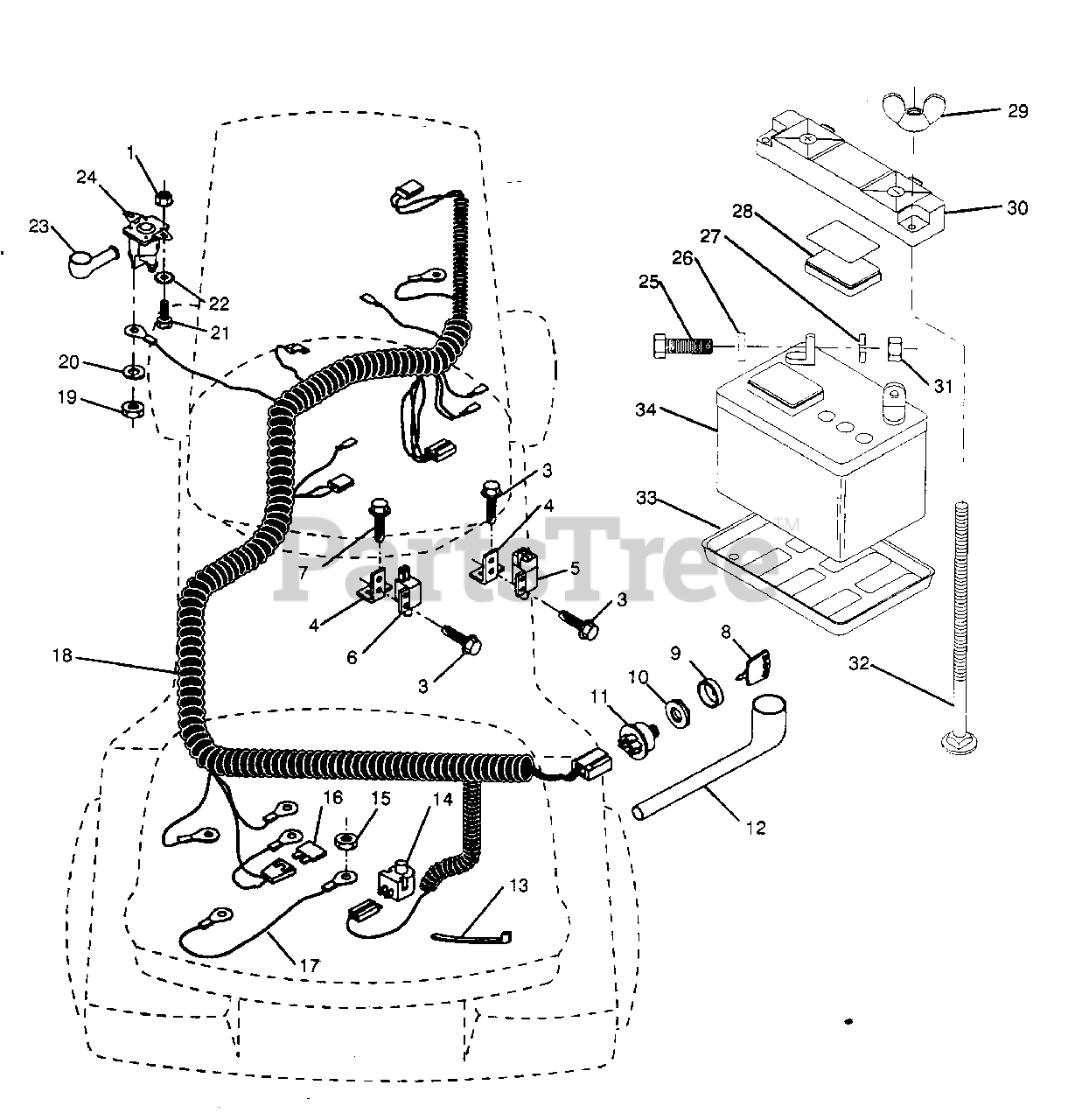

ELECTRICAL Parts Diagram

  • Title

1

Electrolux/AYP 873510400

Nut Hex Keps 1/4-20
(Superseded to 873640400)

$

$

Not available

2

Electrolux/AYP 532105002

Assembly, Cable

$

$

Not available

3

Electrolux/AYP 817021008

Screw, Tap Hex Hd #10-24 x 1/2

$4.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 532108236

Bracket, Switch

$2.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532104445

Switch, Interlock

$17.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 532109553

Switch, Interlock
(Superseded to 539101080)

$7.49

$

In Stock, Qty 20+

0

7

Electrolux/AYP 817211008

Screw, Hex Wsh. Tap #10-16 x 1/2

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532122147

Key, Molded

$

$

Not available

9

Electrolux/AYP 532123620

Cover, Key Ignition
(Superseded to 532141226)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532124211

Nut, Ignition

$4.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 532125099

Switch, Ignition
(Superseded to 532004206)

$

$

Not available

12

Electrolux/AYP 532124083

Cover, Ignition Switch

$

$

Not available

13

Electrolux/AYP 532124756

Tie, Cable
(Superseded to 532007192)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532121305

Switch, Plunger
(Superseded to 532421062)

$10.99

$

In Stock, Qty 19

0

15

Electrolux/AYP 873510500

Keps, Nut 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 532108824

Fuse

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532000596

Assembly, Cable
(Superseded to 532002955)

$

$

Not available

18

Electrolux/AYP 532123703

Harness, Ignition

$

$

Not available

19

Electrolux/AYP 873350400

Nut, Hex Jam 1/4-20
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

20

Electrolux/AYP 810090400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

21

Electrolux/AYP 874780408

Bolt Fin. Hex 1/4-20 UNC x 1/2 Gr.5
(Superseded to 74780408)

$3.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 811050400

Washer, Lock Ext. Tooth 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

23

Electrolux/AYP 532124783

Cover, Terminal
(Superseded to 532131563)

$8.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532109081

Solenoid
(Superseded to 532109946)

$24.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 874760412

Bolt, Hex Hed. 1/4-20 UNC x 3/4

$7.49

$

In Stock, Qty 5

0

26

Electrolux/AYP 819091016

Washer 9/32 x 5/8 x 16 Ga.
(Superseded to 596582301)

$3.99

$

In Stock, Qty 12

0

27

Electrolux/AYP 810040400

Washer, Lock Hvy. Helical Spring 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

28

Electrolux/AYP 532121300

Battery, Cap

$

$

Not available

29

Electrolux/AYP 532123198

Nut, Plastic, Locking Nut 1/4-20
(Superseded to 532146525)

$

$

Not available

30

Electrolux/AYP 532102476

Guard, Terminal
(Superseded to 532150109)

$

$

Not available

31

Electrolux/AYP 873220400

Nut, Fin. Hex 1/4-20 UNC
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

32

Electrolux/AYP 872240460

Bolt, Carriage 1/4-20 UNC x 7 1/2

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532124886

Tray, Battery
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532121310

Battery
(Superseded to 532123888)

$

$

Not available

Electrolux/AYP 532127735

Manual, Operator's(English)

Note: Not Shown.

$

$

Not available

Electrolux/AYP MS9811

Briggs & Stratton, Operating and Maintenance Manual

Note: Not Shown.

$

$

Not available

Electrolux/AYP 532125547

Parts List

Note: Not Shown.

$

$

Not available

Electrolux/AYP 532101539

Sheet, Slope

Note: Not Shown.

$

$

Not available
