PP 115 - Poulan Pro String Trimmer CUTTING HEAD & DRIVE SHAFT ASSEMBLIES Parts Diagram

String Trimmer

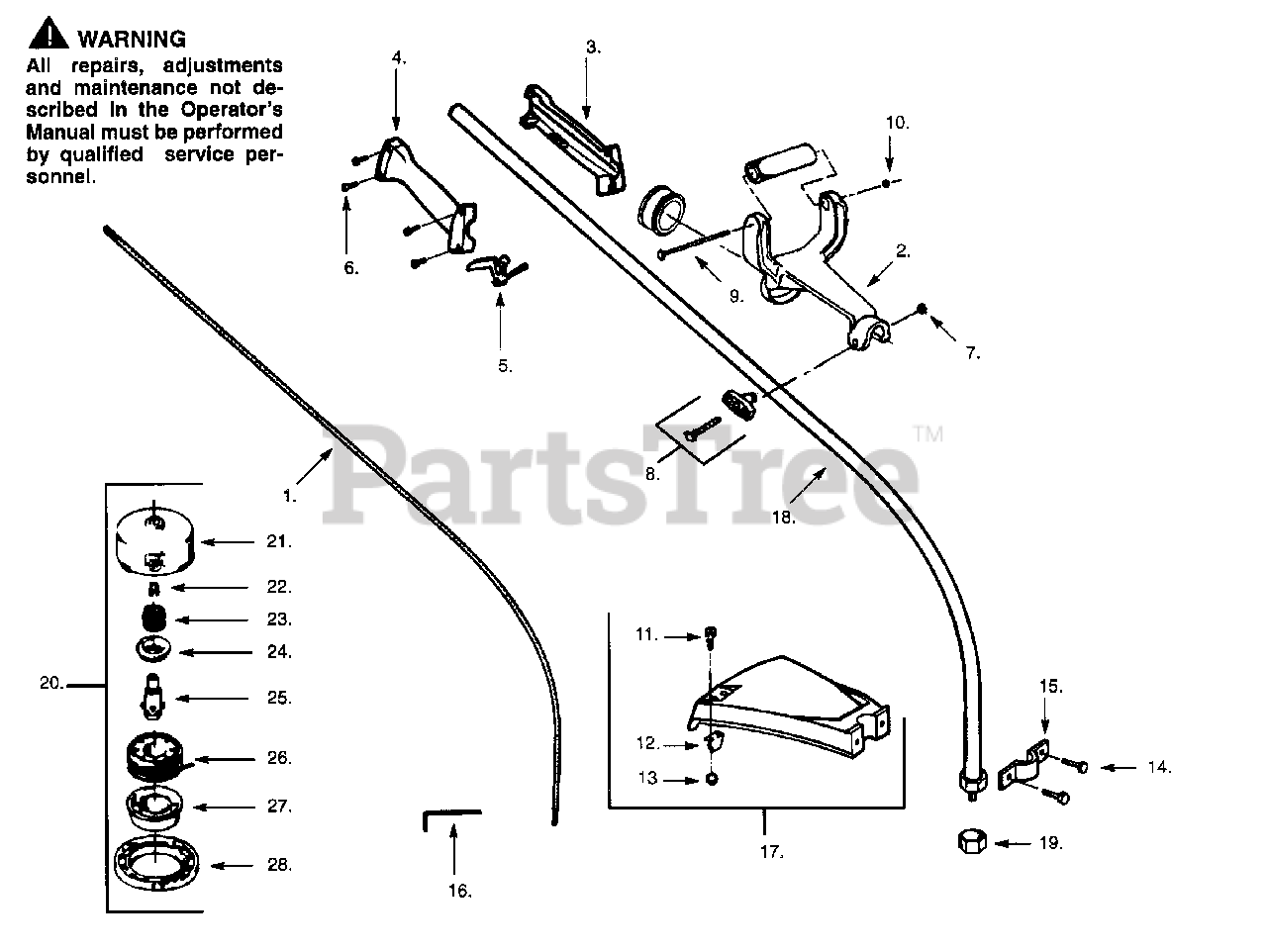

CUTTING HEAD & DRIVE SHAFT ASSEMBLIES Parts Diagram

  • Title

1

Poulan 530094551

Drive Shaft

$

$

Not available

2

Poulan 530010958

Antivibe Handle Ass'y. (Inc. 10 & 9)

$

$

Not available

3

Poulan 530036514

Throttle Hsg. (Left)

$

$

Not available

4

Poulan 530036515

Throttle Hsg. (Right)

$

$

Not available

5

Poulan 530036556

Throttle Lever

$3.49

$

In Stock, only 1 left!

0

6

Poulan 530015966

Screw

$

$

Not available

7

Poulan 530015197

Nut

$3.49

$

In Stock, only 3 left!

0

8

Poulan 530069252

"T" Handle
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

9

Poulan 530015784

Screw

$

$

Not available

10

Poulan 530015785

Locknut

$

$

Not available

11

Poulan 530015337

Screw

$

$

Not available

12

Poulan 530094570

Line Limiter

$7.99

$

In Stock, only 2 left!

0

13

Poulan 534235901

Locknut
(Superseded to 530403094)

$

$

Not available

14

Poulan 530016107

Screw

$3.49

$

In Stock, Qty 11

0

15

Poulan 530093653

Bracket Shield

$3.49

$

In Stock, only 1 left!

0

16

Poulan 530031111

Hex Wrench (5/32)
(Superseded to 530031159)

$3.49

$

In Stock, only 1 left!

0

17

Poulan 530069249

Shield Kit Ass'y. (Inc. 11,12,13,14)

$

$

Not available

18

Poulan 530094891

Drive Shaft Hsg.
(Superseded to 530071371)

$

$

Not available

19

Poulan 530094543

Dust Cup

$

$

Not available

20

Poulan 952701574

Cutting Head Ass'y. (Inc. 21-28)
(Superseded to 952711547)

$

$

Not available

21

Poulan 530093896

Hub Ass'y.
(Superseded to 530071295)

$

$

Not available

22

Poulan 530093898

Line Saver

$

$

Not available

23

Poulan 530340007

Spring

$3.49

$

In Stock, only 1 left!

0

24

Poulan 530092068

Spring Cap
(Superseded to 530328929)

$

$

Not available

25

Poulan 530093897

Drive Gear

$

$

Not available

26

Poulan 952701523

Spool w/Line

$

$

Not available

27

Poulan 530401183

Release Button

$

$

Not available

28

Poulan 530092133

Cover

$

$

Not available

Poulan 530047067

Carton Contents Bag

$

$

Not available

, Operator Manual

Note: Not Shown.

$

$

Not available

Poulan 530081991

Type 2

$

$

Not available

Poulan 530083192

Type 3

$

$

Not available

Poulan 530029159

Shaft Warning Decal

Note: Not Shown.

$

$

Not available

Poulan 530047450

Instruction Decal

Note: Not Shown.

$

$

Not available
