PP 11536 A - Poulan Pro Lawn Tractor Mower Lift Lever Parts Diagram

Lawn Tractor

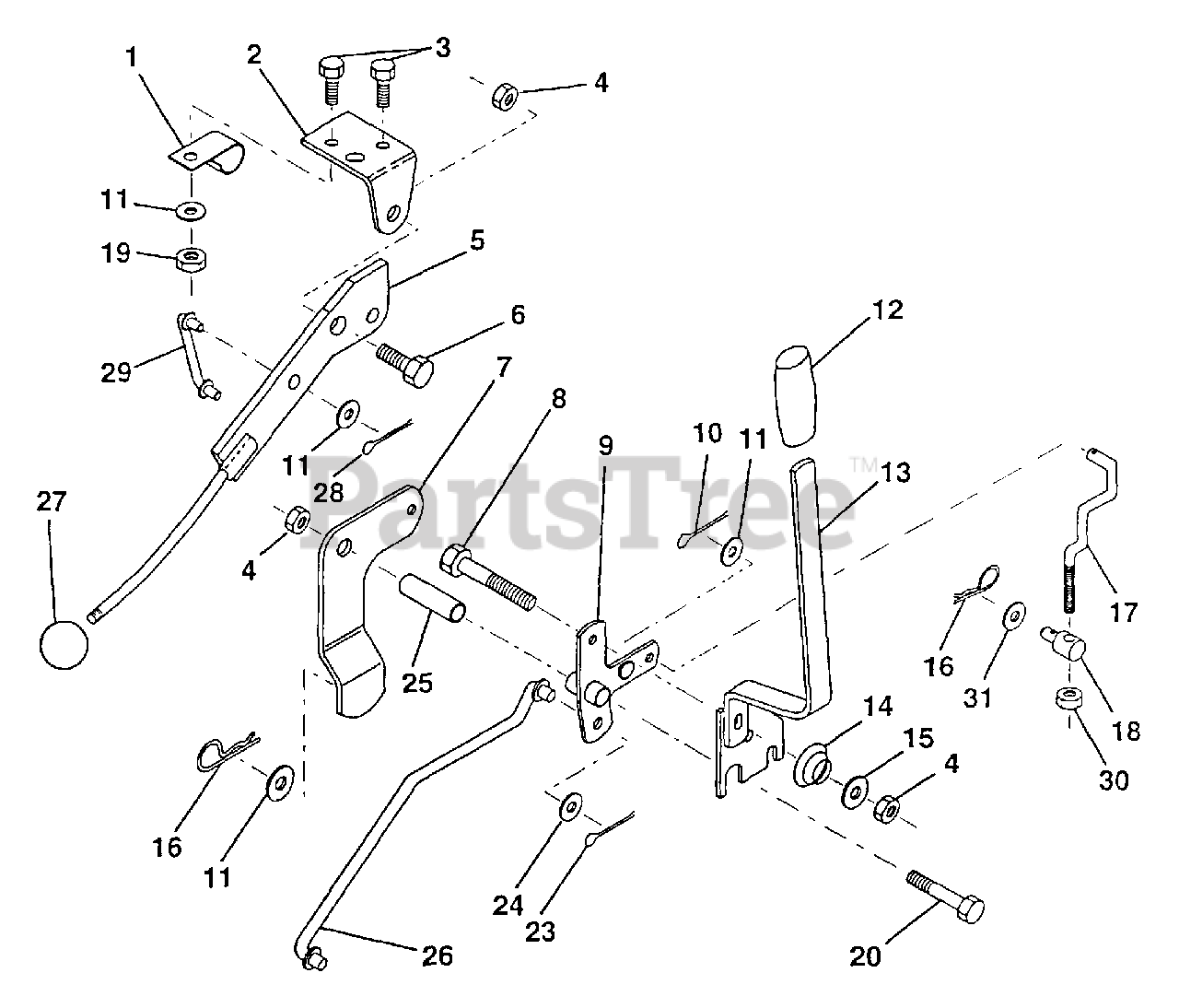

Mower Lift Lever Parts Diagram

  • Title

1

Poulan 126470X

Clip, Insulated
(Superseded to 532126470)

$

$

Not available

2

Poulan 122018X

Bracket, Mower Clutch

$

$

Not available

3

Poulan 71110408

Bolt, Fin. Hex 1/4-20 UNC x 1/2 Gr. 5

$2.99

$

Usually ships in 3-10 days

0

4

Poulan 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$

$

Not available

5

Poulan 145187

Assembly, Clutch Lever

$

$

Not available

6

Poulan 106451X

Bolt, Shoulder
(Superseded to 532106451)

$

$

Not available

7

Poulan 135371

Assembly, Mower Clutch Arm

$

$

Not available

8

Poulan 74760636

Bolt, Hex 3/8-16 UNC x 2-1/4

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 121930X

Assembly, Bellcrank Lift
(Superseded to 532121930)

$

$

Not available

10

Poulan 76020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.49

$

In Stock, Qty 5

0

11

Poulan 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

12

Poulan 131861

Grip, Handle (AYP part number)

$

$

Not available

13

Poulan 139352

Assembly, Lift Handle

$14.99

$

Usually ships in 3-10 days

0

14

Poulan 123496X

Spring, Compression
(Superseded to 532123496)

$

$

Not available

15

Poulan 19131212

Washer 13/32 x 3/4 x 12 Ga.

$2.99

$

Usually ships in 3-10 days

0

16

Poulan 4921H

Retainer, Spring
(Superseded to 532004921)

$5.99

$

In Stock, only 2 left!

0

17

Poulan 127359

Link, Front Lift
(Superseded to 532127359)

$

$

Not available

18

Poulan 142028

Trunnion, Threaded 3/8-16
(Superseded to 532142028)

$

$

Not available

19

Poulan 73680400

Nut, Crownlock 1/4-20 (AYP part number)
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

20

Poulan 74760644

Bolt, Fin. Hex 3/8-16 UNC x 2-3/4
(Superseded to 874760644)

$

$

Not available

23

Poulan 76020416

Pin, Cotter 1/8 x 1

$2.99

$

Usually ships in 3-10 days

0

24

Poulan 19171612

Washer 17/32 x 1 x 12 Ga.

$2.99

$

Usually ships in 3-10 days

0

25

Poulan 121933X

Tube, Spacer

$

$

Not available

26

Poulan 141470

Rod, Mower Lift

$

$

Not available

27

Poulan 106932X

Knob
(Superseded to 532106932)

$9.49

$

In Stock, Qty 7

0

28

Poulan 76020312

Pin, Cotter 3/32 x 3/4
(Superseded to 539003145)

$

$

Not available

29

Poulan 131655

Link, Mower Clutch

$4.49

$

Usually ships in 3-10 days

0

30

Poulan 73350600

Nut Hex Jam 3/8-16 x 1.30
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

31

Poulan 19132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 819132012)

$

$

Not available
