PP 11536 A - Poulan Pro Lawn Tractor Steering Wheel Parts Diagram

Lawn Tractor

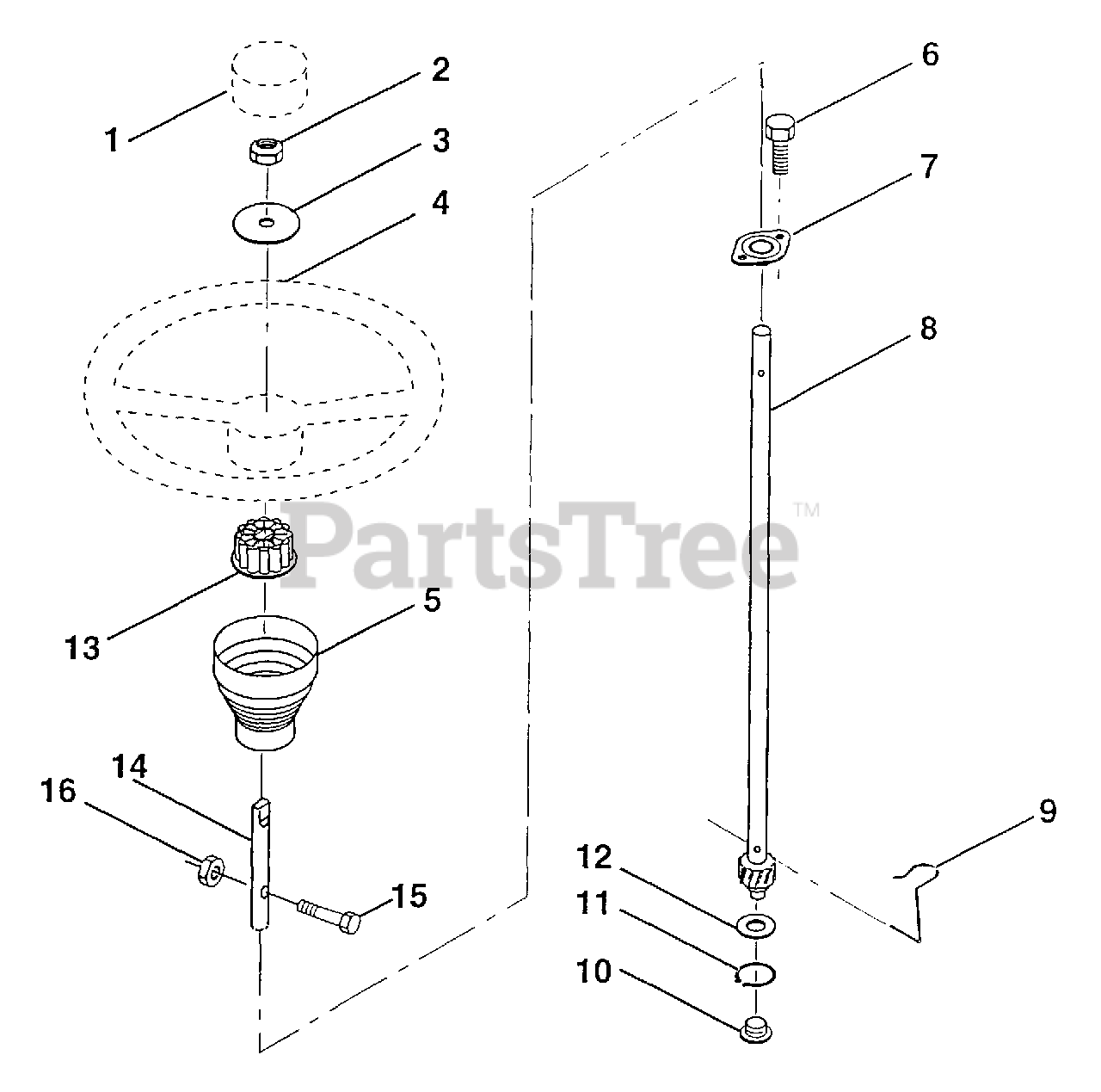

Steering Wheel Parts Diagram

  • Title

1

Poulan 133742

Insert, Wheel, Steering

$

$

Not available

2

Poulan 10040600

Washer Lock Hevy
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

3

Poulan 19133808

Washer 12/32 x 2-3/8 x 8 Ga.
(Superseded to 583789501)

$

$

Not available

4

Poulan 133741

Wheel, Steering (AYP part number)
(Superseded to 583261901)

$46.99

$

Usually ships in 3-10 days

0

5

Poulan 121897X

Sleeve, Steering
(Superseded to 583666401)

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 152927

Screw
(Superseded to 532152927)

$7.49

$

In Stock, Qty 18

0

7

Poulan 155104

Bushing, Steering (AYP part number)
(Superseded to 532155107)

$6.49

$

In Stock, only 1 left!

0

8

Poulan 147391

Shaft, Steering (AYP part number)
(Superseded to 532148966)

$

$

Not available

9

Poulan 124210X

Clip, Steering
(Superseded to 532124210)

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 123438X

Bushing, Lower, Steering
(Superseded to 532123438)

$6.49

$

In Stock, only 2 left!

0

11

Poulan 12000045

Ring, Retaining
(Superseded to 812000045)

$7.49

$

In Stock, Qty 5

0

12

Poulan 19211616

Washer 21/32 x 1 x 16 Ga.
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 100711L

Adaptor, Wheel, Steering
(Superseded to 587738905)

$7.99

$

In Stock, Qty 20+

0

14

Poulan 153720

Extension Shaft, Steering (AYP part number)
(Superseded to 532153721)

$

$

Not available

15

Poulan 874780520

Bolt, Fin, Hex 5/16-18 UNC x 1-1/4 (AYP part number)
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 873800500

Nut, Lock, Hex W/Ins. 5/16-18 UNC (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Poulan 74780616

Bolt Fin Hex 3/8-16 unc x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0
