PP-1200 - Echo Pole Saw (Type 1E) Crankcase, Engine, Fan Case Parts Diagram

Pole Saw (Type 1E)

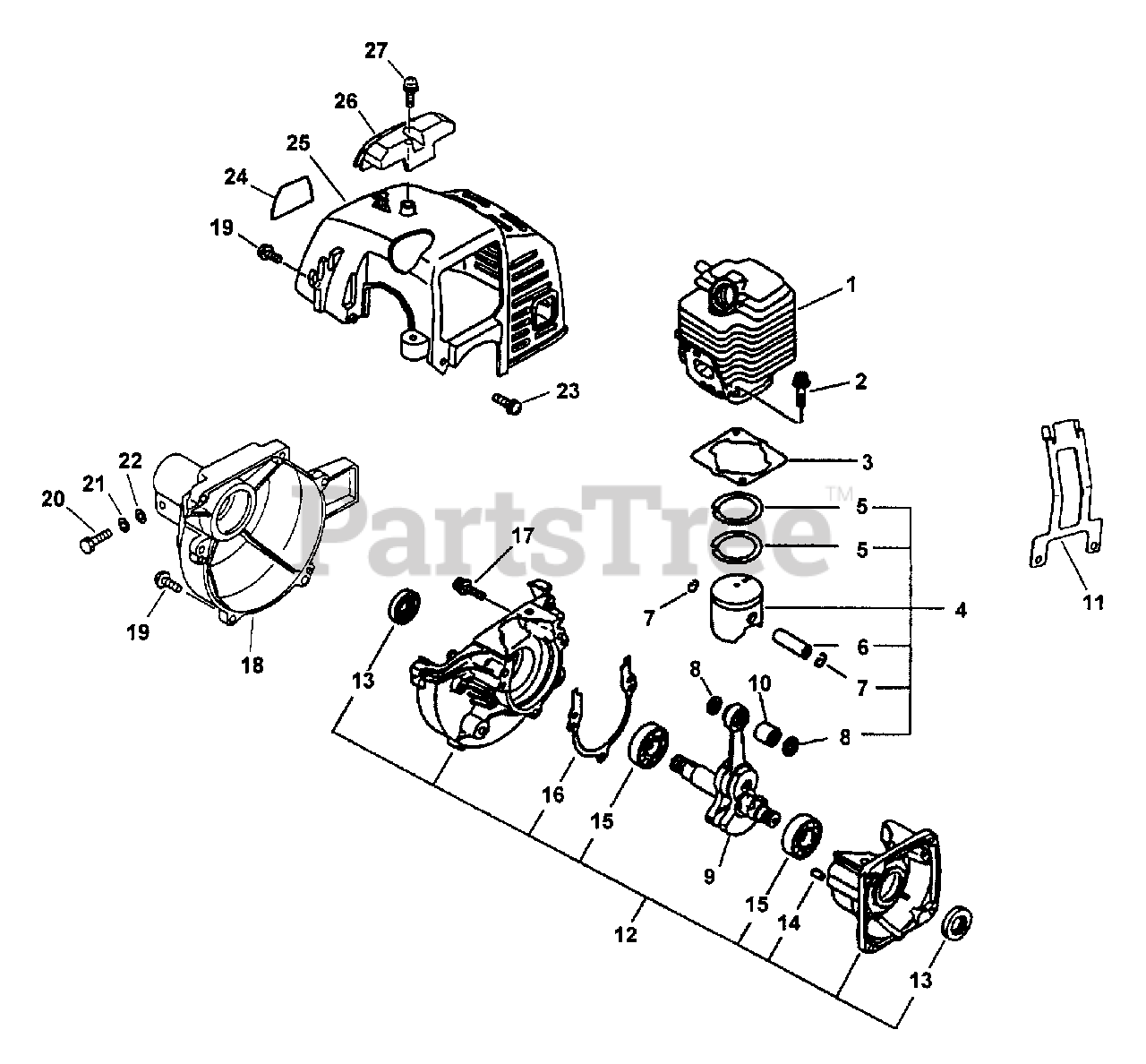

Crankcase, Engine, Fan Case Parts Diagram

  • Title

1

Echo 10101147630

CYLINDER
(Superseded to 10101148730)

Note: S/N 001001 - 055504

$151.99

$

Usually ships in 2-4 days

0

1

Echo 10101146830

CYLINDER
(Superseded to 10101106561)

Note: S/N 055505 & UP and S/N 001001 & UP; Model TYPE 1E

$130.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo 101010-44332

GASKET, CYLINDER

Note: INCLUDED IN GASKET KIT P/N 88900044632

$4.99

$

In Stock, Qty 7

0

4

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: S/N 001001 - 055504 INCLUDES ITEMS 5 - 8

$78.99

$

Usually ships in 2-4 days

0

4

Echo 10000048732

PISTON KIT

Note: S/N 055505 & UP and S/N 001001 & UP; INCLUDES ITEMS 5 - 8; Model TYPE 1E

$77.99

$

In Stock, only 2 left!

0

5

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

Note: S/N 001001 - 055504 (QTY-ONE)

$10.99

$

In Stock, Qty 8

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

9

Echo 10010044732

CRANKSHAFT ASSY
(Superseded to 10010044733)

Note: S/N 001001 - 055504; INCLUDES ITEM 10

$186.99

$

Usually ships in 2-4 days

0

9

Echo 10010054130

CRANKSHAFT ASSY
(Superseded to 10010044732)

Note: S/N 055505 & UP and S/N 001001 & UP; INCLUDES ITEM 10; TYPE 1E

$186.99

$

Usually ships in 2-4 days

0

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

11

Echo 10158746730

GUARD, ENGINE

Note: S/N 013245 & UP

$4.99

$

Usually ships in 2-4 days

0

12

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: S/N 001001 - 055504 INCLUDES ITEMS 13 - 17

$157.99

$

Usually ships in 2-4 days

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: S/N 055505 & UP and S/N 001001 & UP; INCLUDES ITEMS 13 - 17; TYPE 1E

$

$

Not available

13

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

14

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

15

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

16

GASKET, CRANKCASE

Note: INCLUDED IN GASKET KIT P/N 88900044632

$

$

Not available

17

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

18

Echo 101511-44630

CASE, FAN

$52.99

$

In Stock, only 2 left!

0

19

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

20

Echo 900151-05025

BOLT 5×25

$0.99

$

Usually ships in 2-4 days

0

21

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

22

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

23

Echo 900238-04012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

24

Echo 89014044530

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

25

Echo 10151444531

COVER, ENGINE - ORANGE

$24.99

$

In Stock, only 2 left!

0

26

Echo 15991244530

GUARD, TOP - BLACK

$7.99

$

In Stock, only 2 left!

0

27

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

Echo SB1007

SHORT BLOCK - SB1007
(Superseded to SB1026)

$

$

Not available

Echo SB1026

SHORT BLOCK ES-2100;PB-2100
(Superseded to Discontinued)

Note: CYLINDER, CRANKCASE, PISTON, CRANKSHAFT, BEARINGS & SEALS

$

$

Not available

Echo 88900044632

GASKET KIT
(Superseded to 88900005063)

Note: INCLUDES THE FOLLOWING ITEMS

$41.99

$

In Stock, only 2 left!

0

Echo 101010-44332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 7

0

GASKET, CRANKCASE

$

$

Not available

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 10

0

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

Echo 14563142030

HEAT SHIELD, EXHAUST
(Superseded to A320000250)

$5.99

$

In Stock, only 2 left!

0
