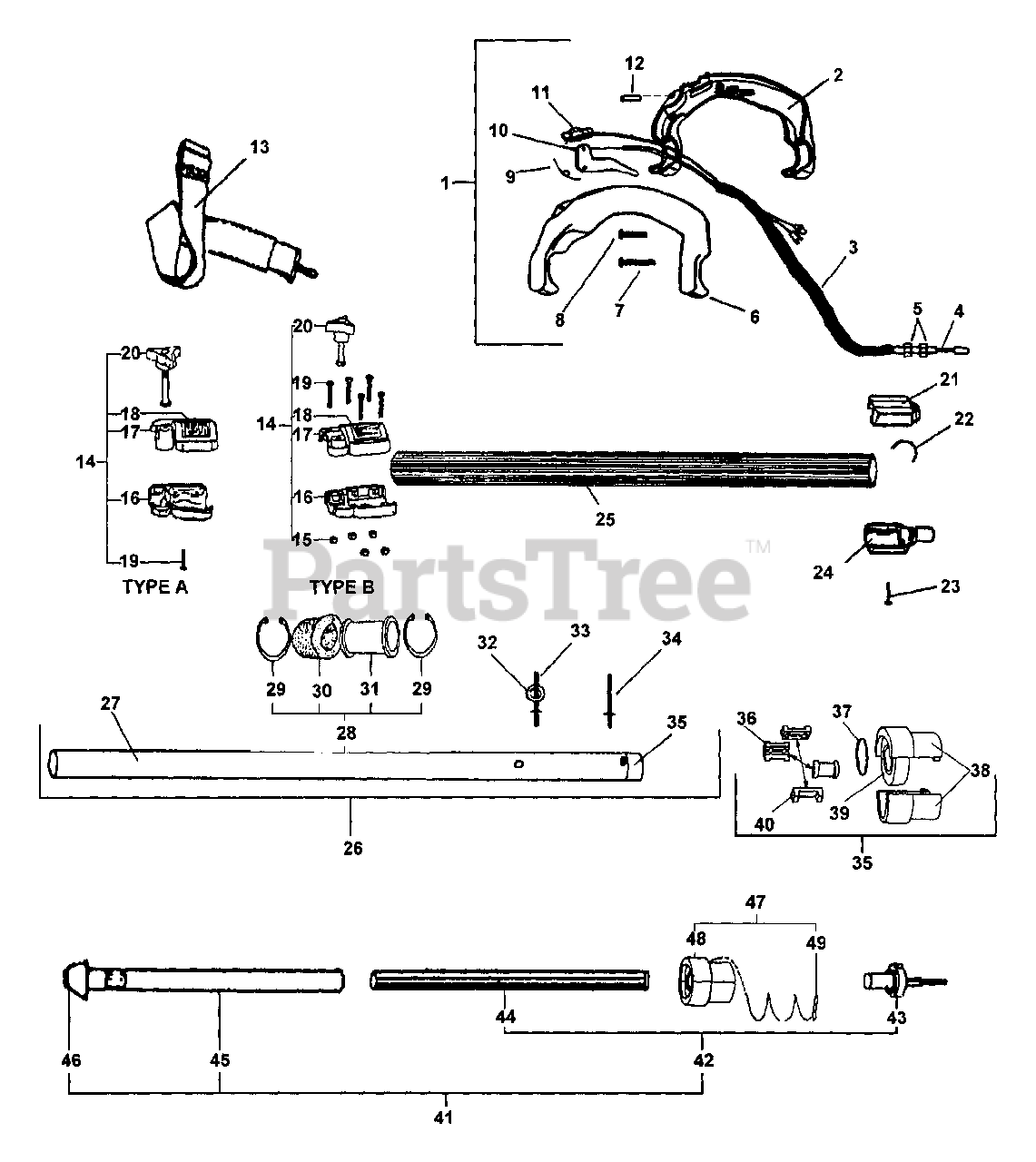

PP-1200 - Echo Pole Saw (Type 1E) Driveshaft, Handle, Harness, Stop Switch, Throttle Parts Diagram

Pole Saw (Type 1E)

Driveshaft, Handle, Harness, Stop Switch, Throttle Parts Diagram

  • Title

Echo 61020622360

PIPE, MAIN

Note: Includes ITEMS 1-48

$839.99

$

Usually ships in 2-4 days

0

Echo 61060922360

PIPE, MAIN

Note: INCLUDES ITEMS 21 - 48

$540.99

$

Usually ships in 2-4 days

0

1

Echo 35150122560

HANDLE ASSY, REAR

Note: INCLUDES ITEMS 2 - 12

$182.99

$

Usually ships in 2-4 days

0

2

Echo 35112922360

HANDLE, REAR - RIGHT
(Superseded to P021004860)

$

$

Not available

3

Echo 17801622360

TUBE, FLEXIBLE

$2.49

$

Usually ships in 2-4 days

0

4

Echo 17810022060

CABLE, THROTTLE

Note: Includes ITEM 5

$48.99

$

Usually ships in 2-4 days

0

5

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

6

Echo 35110122360

HANDLE, REAR - LEFT
(Superseded to P021004860)

$

$

Not available

7

Echo 90005300400

SCREW, TORX 10-24 UNC 1-1/4

$0.99

$

In Stock, only 4 left!

0

8

Echo 90005300300

SCREW, TORX

$1.49

$

Usually ships in 2-4 days

0

9

Echo 17804322360

SPRING, TORSION

$2.49

$

In Stock, only 2 left!

0

10

Echo 17801005631

TRIGGER, THROTTLE
(Superseded to C450000060)

$1.99

$

In Stock, Qty 5

0

11

Echo 16340046830

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$10.99

$

In Stock, only 2 left!

0

12

Echo 88996022660

PIN, LOCATING 0.17 OD×0.75 L

$0.99

$

In Stock, Qty 19

0

13

Echo 30100022060

STRAP ASSY, SHOULDER

$35.99

$

In Stock, only 2 left!

0

14

Echo 61029522360

CLAMP ASSY

Note: Includes ITEMS 15-20 WHEN ORDERING TOP OR BOTTOM HALVES OF TYPE A COMPRESSION CLAMP (P/N 4000), NEW CLAMP ASSEMBLY TYPE B (P/N 4000) WILL BE SENT. TYPE A AND TYPE B CLAMP HALVES CAN NOT BE INTERCHANGED.

$42.99

$

Usually ships in 2-4 days

0

15

Echo 90003150100

NUT, LOCK 10-24 UNC

$0.99

$

In Stock, Qty 8

0

16

Echo 61028222360

COLLAR, LOWER

$33.99

$

In Stock, only 2 left!

0

17

Echo 61028222460

COLLAR, UPPER

$19.99

$

In Stock, only 2 left!

0

18

Echo 89016022360

LABEL - CAUTION
(Superseded to 89007522760)

$9.49

$

Usually ships in 2-4 days

0

19

Echo 90005300400

SCREW, TORX 10-24 UNC 1-1/4

$0.99

$

In Stock, only 4 left!

0

20

Echo 13040622360

THUMBSCREW

$6.99

$

In Stock, Qty 10

0

21

Echo 61081022360

CAP, MAIN PIPE
(Superseded to P021003540)

$14.99

$

In Stock, only 2 left!

0

22

Echo 10491022460

CUSHION

$2.49

$

In Stock, only 2 left!

0

23

Echo 90005300400

SCREW, TORX 10-24 UNC 1-1/4

$0.99

$

In Stock, only 4 left!

0

24

Echo 61024822360

COUPLING, MAIN PIPE
(Superseded to C510000050)

$30.99

$

In Stock, only 2 left!

0

25

Echo 61022222360

PIPE, MAIN 1.5 ID×60" L

$140.99

$

Usually ships in 2-4 days

0

26

Echo 61029922360

PIPE, MAIN

Note: INCLUDES ITEMS 27 - 35

$174.99

$

Usually ships in 2-4 days

0

27

Echo 61029924060

PIPE, MAIN - BLACK
(Superseded to Discontinued)

Note: INCLUDES ITEMS 28 - 31

$

$

Not available

28

Echo 43330722360

DRIVESHAFT GUIDE ASSY
(Superseded to 43330722361)

Note: INCLUDES ITEMS 29 - 31

$19.99

$

In Stock, only 2 left!

0

29

Echo 61033522360

RING, SNAP

$1.99

$

In Stock, Qty 5

0

30

Echo 10429222360

PAD, FOAM

$0.99

$

Usually ships in 2-4 days

0

31

Echo 43334522360

GUIDE, DRIVESHAFT
(Superseded to 43334522361)

$12.99

$

In Stock, only 4 left!

0

32

Echo 40011122360

WASHER, FLAT 5

$0.99

$

In Stock, Qty 7

0

33

Echo 89001122460

RIVET

$1.49

$

In Stock, only 3 left!

0

34

Echo 89001122360

RIVET

$0.99

$

In Stock, Qty 17

0

35

Echo 61010522360

HOLDER ASSY, BEARING

Note: INCLUDES ITEMS 36 - 40

$

$

Not available

36

Echo 43334522460

GUIDE, SHAFT - SMALL

$1.99

$

In Stock, Qty 20+

0

37

Echo 17812922360

WASHER, WAVE

$0.99

$

In Stock, Qty 9

0

38

Echo 61011122360

HOLDER, BEARING

$8.99

$

Usually ships in 2-4 days

0

39

Echo 90080206002

BEARING, BALL 6002 DDU

$19.99

$

In Stock, only 2 left!

0

40

Echo 43334522560

GUIDE, SHAFT - LARGE

$1.99

$

In Stock, Qty 15

0

41

Echo 61000622360

DRIVESHAFT ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 42 - 46

$

$

Not available

42

Echo 61000622060

DRIVESHAFT - LOWER
(Superseded to P021008040)

Note: INCLUDES ITEMS 43 & 44

$117.99

$

Usually ships in 2-4 days

0

43

Echo 61001222360

CONNECTOR, SHAFT
(Superseded to 61001222361)

$42.99

$

In Stock, only 2 left!

0

44

Echo 61001122060

DRIVESHAFT
(Superseded to 61001122061)

$55.99

$

Usually ships in 2-4 days

0

45

Echo 61001122360

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

46

Echo 61029822360

ADAPTER, UPPER DRIVE SHAFT

$3.99

$

Usually ships in 2-4 days

0

47

Echo 43330722460

BUSHING ASSY, FLOATING

Note: INCLUDES ITEMS 48 & 49

$20.99

$

In Stock, only 2 left!

0

48

Echo 10494022560

SPRING, COMPRESSION

$12.99

$

Usually ships in 2-4 days

0

49

Echo 43334522660

BUSHING, FLOATING

$5.99

$

Usually ships in 2-4 days

0
