PP 1242 A - Poulan Lawn Tractor (1993) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

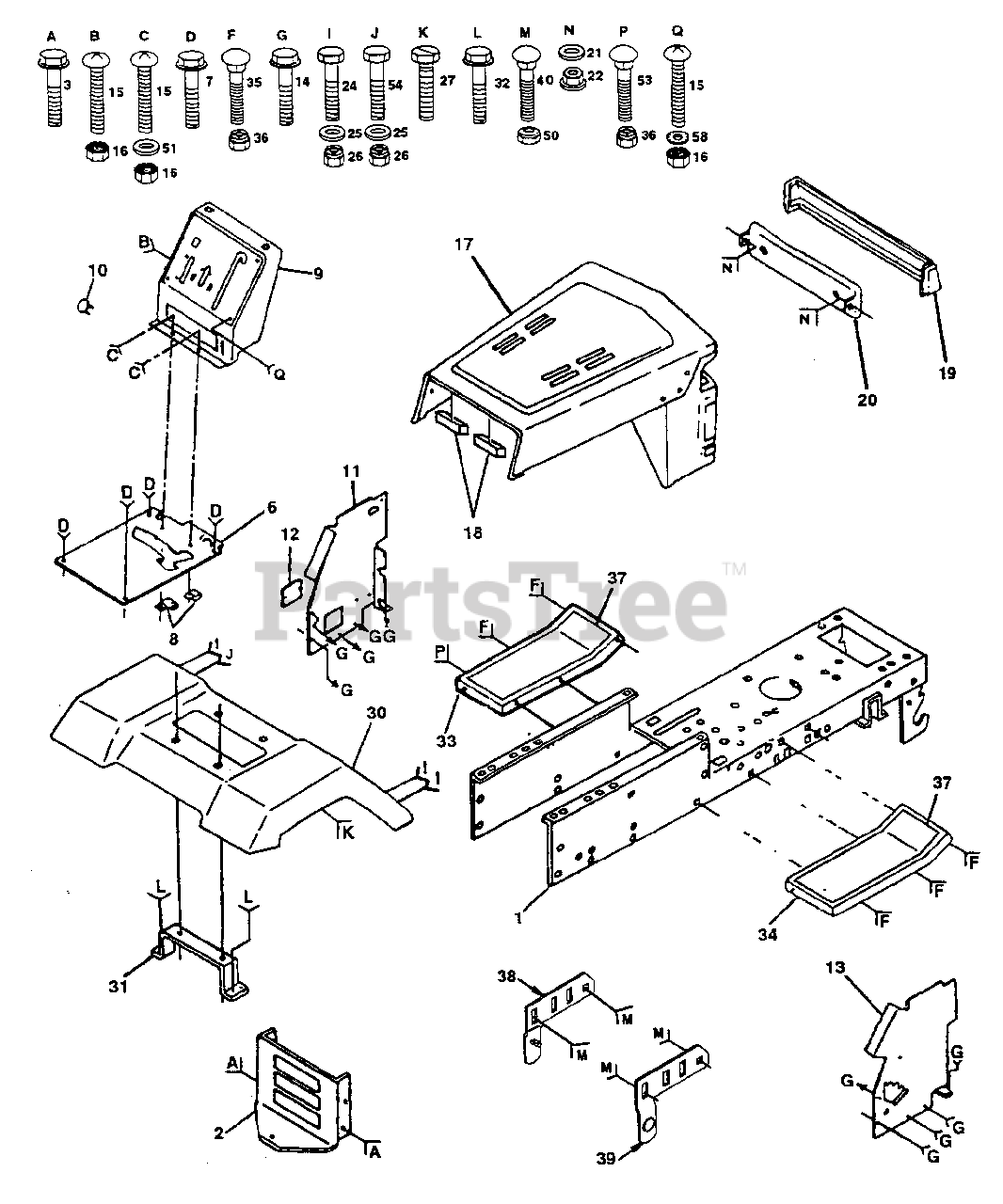

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 532135034

Chassis Wldmt 12 Ga 38/42 W/pvt

$

$

Not available

2

Electrolux/AYP 532137275

Drawbar, Stretch
(Superseded to 532145009)

$

$

Not available

3

Electrolux/AYP 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 532139806

Saddle Slk 6sp LT Flat

$

$

Not available

7

Electrolux/AYP 817490608

Screw Thdrol 3/8-16x1/2 Ty-tt

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532124996

Clip Line Fuel 13/32 Mtg Hole
(Superseded to 532002751)

$

$

Not available

9

Electrolux/AYP 532125447

Dash Slkscr 1-pc M W/i N/c Sym

$

$

Not available

10

Electrolux/AYP 532005479

Plug Button Blk 359 Dia Choke

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532122795

Panel Dash LH

$

$

Not available

12

Electrolux/AYP 532121794

Cover Access Black Square
(Superseded to 121794X)

$

$

Not available

13

Electrolux/AYP 532124829

Panel Slkscr Dash RH Wld Notch

$

$

Not available

14

Electrolux/AYP 817490608

Screw Thdrol 3/8-16x1/2 Ty-tt

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 874180512

Screw Mach TRHD 5/16-18uncx3/4

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 873510500

Nut Keps 5/16-18 Unc
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532139809

Hood Asm Pnt Weld

$

$

Not available

18

Electrolux/AYP 532126938

Bumper Hood

$

$

Not available

19

Electrolux/AYP 532133954

Lens Headlight Bar Clear

$

$

Not available

20

Electrolux/AYP 532132257

Bezel Light

$

$

Not available

21

Electrolux/AYP 819091216

Washer 9/32 x 3/4 x 16 Ga.
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 532108067

Nut Pal
(Superseded to 108067X)

$

$

Not available

24

Electrolux/AYP 874760612

Bolt Fin Hex 3/8-16unc X 3/4

$4.99

$

In Stock, Qty 19

0

25

Electrolux/AYP 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 873680600

Nut Crownlock 3/8-16 Unc
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 817490608

Screw Thdrol 3/8-16x1/2 Ty-tt

$6.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532139810

Fender Pnt

$

$

Not available

31

Electrolux/AYP 532136619

Bracket Fender Repl 109873x
(Superseded to 136619)

$

$

Not available

32

Electrolux/AYP 817490612

Screw Thdrol
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

33

Electrolux/AYP 532124899

Footrest Pnt LH (Husq Gray)

$

$

Not available

34

Electrolux/AYP 532124914

Footrest Pnt RH (Husq Gray)
(Superseded to 532105464)

$

$

Not available

35

Electrolux/AYP 872110606

Bolt Rdhd Sht Sqnk 3/8-16 X3/4

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 873680600

Nut Crownlock 3/8-16 Unc
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 532133671

Pad Footrest Ribbed

$10.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532134774

Bracket Asm Pvt42 LH MWR Rear

$

$

Not available

39

Electrolux/AYP 532134775

Bracket Asm Pvt42 RH MWR Rear

$

$

Not available

40

Electrolux/AYP 872140608

Bolt Rdhd Sqnk 3/8-16unc X1
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 873800600

Nut Lock Hex W/wsh 3/8-16unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 819131216

Washer 13/32 X 3/4 X 16 Ga

$

$

Not available

53

Electrolux/AYP 872140608

Bolt Rdhd Sqnk 3/8-16unc X 1
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 874760614

Bolt Fin Hex 3/8-16unc X 7/8
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 811050600

Washer Lock Ext. Tooth 3/8
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0
