PP 125 E (967112801) - Poulan Pro String Trimmer (2012-03) ENGINE Parts Diagram

String Trimmer

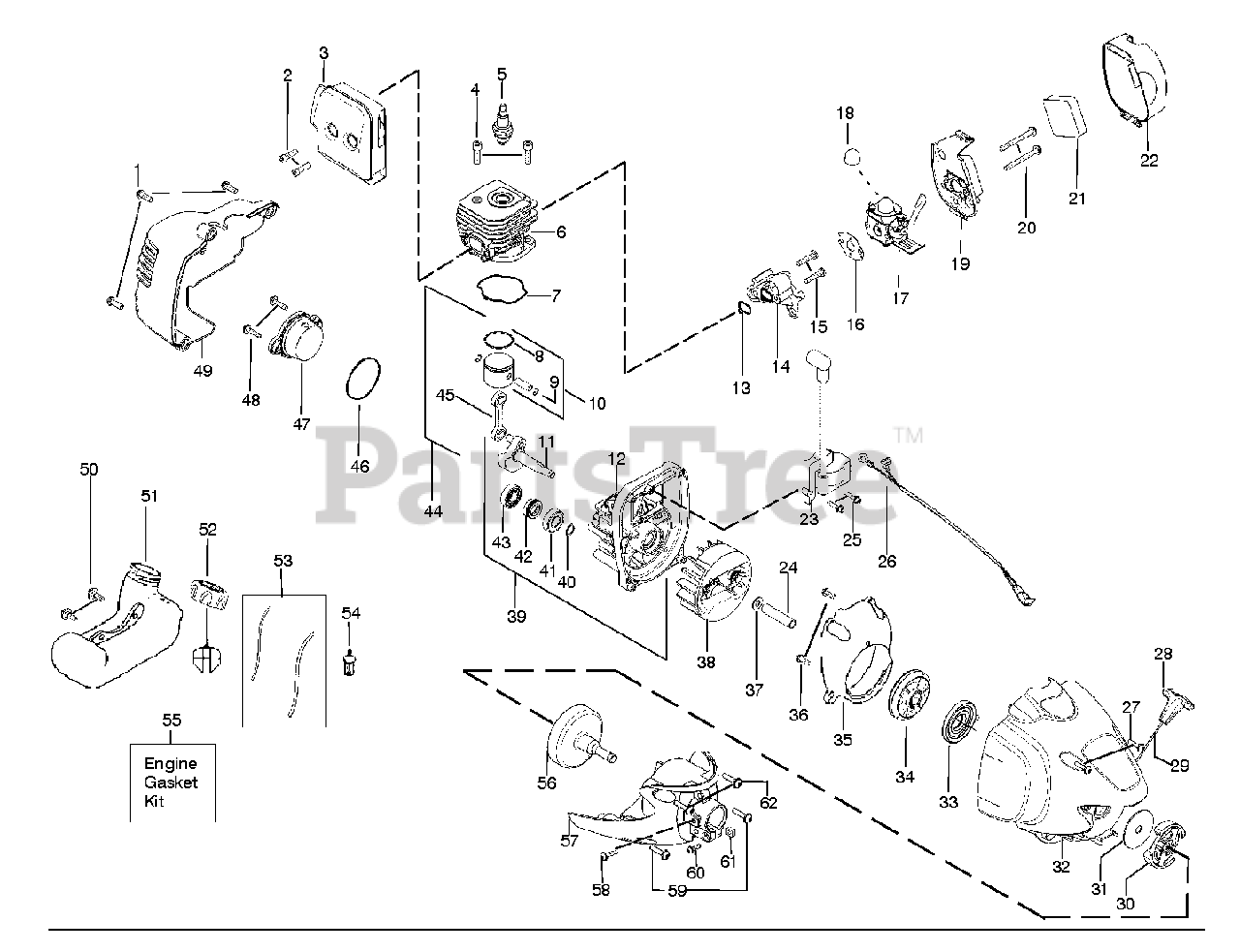

ENGINE Parts Diagram

  • Title

1

Poulan 530015880

SCREW

$4.99

$

In Stock, Qty 8

0

2

Poulan 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 12

0

3

Poulan 545227901

ASSY MUFFLER SHIELD

Note: . 2

$34.99

$

In Stock, only 1 left!

0

4

Poulan 530015953

SCREW

$6.49

$

In Stock, Qty 8

0

5

Poulan 952030249

PLUG-SPARK (RCJ-6Y)

Note: RCJ-6Y

$4.99

$

In Stock, Qty 20+

0

6

Poulan 530012541

CYLINDER MACHINED 25CC LO

$20.99

$

In Stock, only 1 left!

0

7

Poulan 000000000

Note: . 55

$

$

Not available

8

Poulan 545154001

RING PISTON

$4.99

$

In Stock, only 2 left!

0

9

Poulan 530015162

WRIST PIN RET.

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 530071833

PISTON KIT

Note: . 8 9

$37.99

$

In Stock, only 1 left!

0

11

Poulan 530012579

ASSY CRANKSHAFT
(Superseded to 545145802)

$26.99

$

Usually ships in 3-10 days

0

12

Poulan 530012582

ASSY CRANKCASE

Note: . 41 42 43

$21.99

$

Usually ships in 3-10 days

0

13

Poulan 000000000

Note: . 55

$

$

Not available

14

Poulan 530057547

ADAPTOR CARBURETOR

$12.99

$

In Stock, only 1 left!

0

15

Poulan 530016441

SCREW

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 000000000

Note: . 55

$

$

Not available

17

Poulan 530071811

KIT CARB ASSY

$50.99

$

In Stock, Qty 13

0

18

Poulan 530058709

PURGE BULB ZAMA

$7.49

$

In Stock, Qty 20+

0

19

Poulan 545077501

BASE AIR BOX PP GOLD

$12.99

$

In Stock, only 3 left!

0

20

Poulan 530016429

SCREW

$6.49

$

In Stock, Qty 8

0

21

Poulan 530036575

AIR FILTER

$4.99

$

In Stock, Qty 14

0

22

Poulan 530057545

COVER AIR BOX FE

$7.49

$

In Stock, Qty 11

0

23

Poulan 530035505

MODULE

$47.99

$

In Stock, only 4 left!

0

24

Poulan 530059758

SPACER FLYWHEEL

$6.99

$

Usually ships in 3-10 days

0

25

Poulan 530016357

SCREW

$6.49

$

In Stock, Qty 5

0

26

Poulan 545015601

ASSY WIRE SWITCH

$14.99

$

Usually ships in 3-10 days

0

27

Poulan 530016386

SCREW

$10.99

$

In Stock, Qty 9

0

28

Poulan 530054834

HANDLE STARTER BLK

$4.99

$

In Stock, only 1 left!

0

29

Poulan 545050409

KIT ROPE

$7.49

$

In Stock, only 3 left!

0

30

Poulan 530055122

ASSEMBLY CLUTCH

$13.99

$

In Stock, Qty 5

0

31

Poulan 530094189

WASHER-CLUTCH

$6.49

$

In Stock, only 1 left!

0

32

Poulan 545016004

HSG FAN W/EYELET PP GOLD
(Superseded to 545016102)

$27.99

$

Usually ships in 3-10 days

0

33

Poulan 545054901

SPRING STARTER SA
(Superseded to 545008014)

$7.49

$

In Stock, Qty 9

0

34

Poulan 545050407

KIT STARTER PULLEY

$18.99

$

In Stock, Qty 5

0

35

Poulan 545080601

BAFFLE FAN

$9.99

$

In Stock, only 2 left!

0

36

Poulan 530015880

SCREW

$4.99

$

In Stock, Qty 8

0

37

Poulan 530016463

WASHER CLUTCH

$4.99

$

In Stock, only 4 left!

0

38

Poulan 530039243

ASSY FLYWHEEL
(Superseded to 577235901)

$14.99

$

In Stock, only 1 left!

0

39

Poulan 530071951

ASSY CRANKCASE & CRANKSHAFT
(Superseded to 545102101)

Note: . 11 12 40

$22.35

$

Usually ships in 3-10 days

0

40

Poulan 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

41

Poulan 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

42

Poulan 530019264

SEAL

$7.49

$

In Stock, only 1 left!

0

43

Poulan 530032125

BEARING
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

44

Poulan 530071785

PISTON KIT

Note: . 10 45

$47.99

$

In Stock, only 1 left!

0

45

Poulan 530069945

KIT-CONN ROD ASSY
(Superseded to 530049817)

$9.99

$

Usually ships in 3-10 days

0

46

Poulan 000000000

Note: . 47 55

$

$

Not available

47

Poulan 530057954

ASSY REAR PLUG

$7.49

$

In Stock, only 4 left!

0

48

Poulan 530016386

SCREW

$10.99

$

In Stock, Qty 9

0

49

Poulan 530057539

SHROUD REAR BLACK

$10.99

$

Usually ships in 3-10 days

0

50

Poulan 530016445

SCREW FUEL TANK RETAINER

$6.49

$

In Stock, Qty 6

0

51

Poulan 578943002

ASSY FUEL TANK LOW PERM

$21.99

$

Usually ships in 3-10 days

0

52

Poulan 578931603

FUEL CAP ASSY
(Superseded to 578931604)

$8.99

$

In Stock, Qty 11

0

53

Poulan 000000000

Note: . 51

$

$

Not available

54

Poulan 530095646

FUEL PICK-UP ASSY

$4.99

$

In Stock, Qty 20+

0

55

Poulan 530071750

KIT GASKET 25CC

Note: . 7 13 16 46

$13.99

$

In Stock, Qty 7

0

56

Poulan 530150247

ASSY CLUTCH DRUM W/ADPT

$31.99

$

In Stock, only 1 left!

0

57

Poulan 545077301

ASSY CLUTCH COVER

Note: . 60 61

$8.99

$

Usually ships in 3-10 days

0

58

Poulan 530016319

SCREW

$4.99

$

In Stock, Qty 10

0

59

Poulan 530015772

SCREW-10-24 X 1" (TAP.)

$3.99

$

In Stock, only 2 left!

0

60

Poulan 530016381

SCREW 12-24 X 5/8

$3.49

$

Usually ships in 3-10 days

0

61

Poulan 530016382

NUT SQUARE 12-24

$6.49

$

Usually ships in 3-10 days

0

62

Poulan 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0
