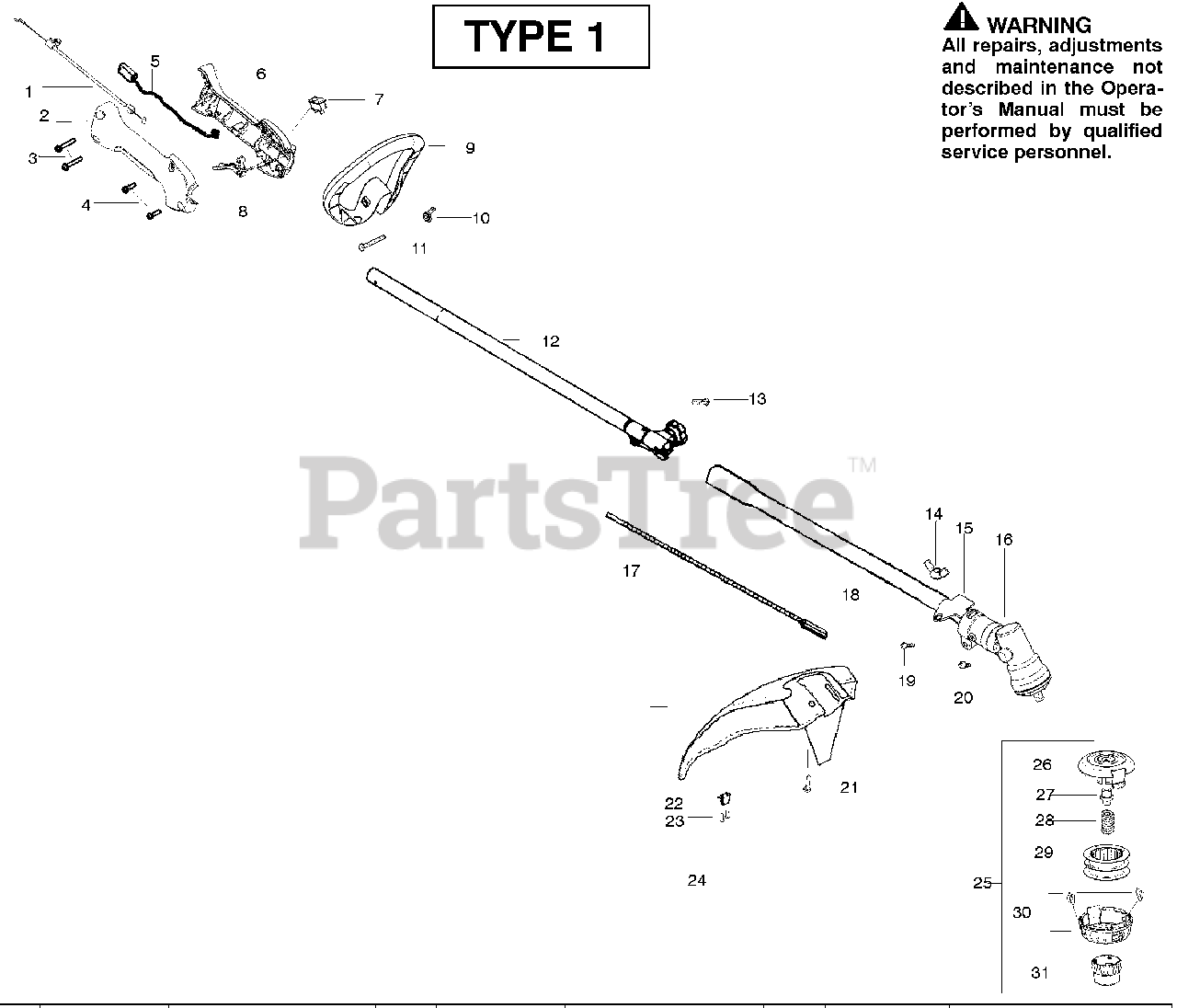

PP 125 - Poulan String Trimmer, Type 1 (2009-03) Shaft Type - 1 Parts Diagram

String Trimmer, Type 1

Shaft Type - 1 Parts Diagram

  • Title

1

Electrolux/AYP 530059759

Assy-Throttle Cable

$17.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530057541

Hsg.-Throttle (RH)

$12.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530016406

Screw

$6.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

5

Electrolux/AYP 530054183

Assy.-Wire

$8.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 530059760

Hsg. Throttle (LH)

$9.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 545077601

Trigger-Throttle
(Superseded to 530049107)

$4.99

$

In Stock, Qty 13

0

9

Electrolux/AYP 530057546

Handle-Assist
(Superseded to 530058583)

$8.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530015786

Bolt

$4.99

$

In Stock, only 4 left!

0

12

Electrolux/AYP 530071791

Kit-Upper Shaft
(Superseded to 575260201)

Note: (Incl. flex, clamp & 13)

$44.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

15

Electrolux/AYP 530057554

Bracket-Shield

$6.49

$

In Stock, Qty 11

0

16

Electrolux/AYP 530096099

Gearbox

$53.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 530096218

Flexshaft-lower
(Superseded to 545173003)

$11.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 530071789

Kit-Lower Shaft

$27.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

20

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

21

Electrolux/AYP 530015820

Bolt

$6.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 530052286

Limiter-Line

$

$

Not available

23

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

24

Electrolux/AYP 530071997

Kit-Shield Assy.

Note: (Incl. 22,23)

$27.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 537419202

Assy-TNG7
(Superseded to 596585805)

Note: (Incl. 26,27,28,29,30,31)

$31.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 537419302

Housing

$15.99

$

In Stock, only 2 left!

0

27

Electrolux/AYP 537419801

Adapter
(Superseded to 537419801)

$8.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 537338801

Spring P25
(Superseded to 537338801)

$6.49

$

In Stock, Qty 7

0

29

Electrolux/AYP 952711631

Assy-Wound Spool

$10.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 545003365

Kit-Cover and Eyelet

$12.99

$

In Stock, only 3 left!

0

31

Electrolux/AYP 537419601

Knob P25
(Superseded to 537419601)

$6.49

$

In Stock, Qty 20+

0

32

Electrolux/AYP 545186741

Operator Manual

$2.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 545209101

Decal-Shaft Warning

$

$

Not available

34

Electrolux/AYP 545167703

Decal-Upper Shaft

$2.49

$

Usually ships in 3-10 days

0
