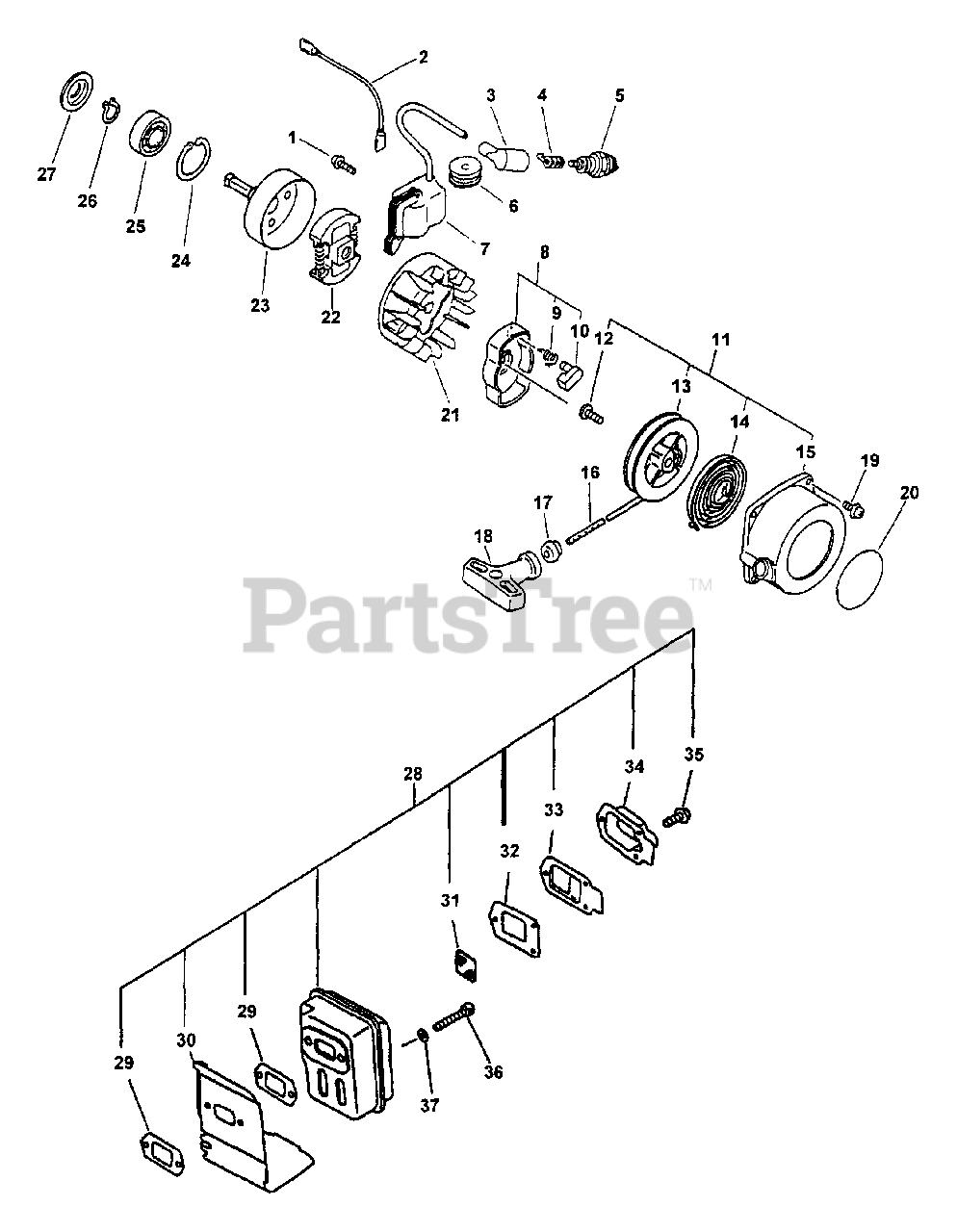

PP-1250 - Echo Pole Saw (Type 1) Ignition, Starter, Clutch Parts Diagram

Pole Saw (Type 1)

Ignition, Starter, Clutch Parts Diagram

  • Title

1

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

2

Echo 16202152130

LEAD - GROUND
(Superseded to 16201052830)

Note: S/N 007684 & UP AND S/N 001001 & UP; MODEL TYPE 1E

$4.49

$

In Stock, only 2 left!

0

3

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 10

0

4

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

5

Echo 99944500071

SPARK PLUG - BPM-7Y

$

$

Not available

6

Echo 150112-44330

GROMMET

$9.49

$

In Stock, Qty 8

0

7

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

Note: S/N 001001 - 007683

$

$

Not available

7

Echo 156601-52130

COIL, IGNITION
(Superseded to 15660152131)

Note: S/N 007684 & UP AND S/N 001001 & UP; MODEL TYPE 1E

$143.99

$

In Stock, only 1 left!

0

8

Echo 177202-44330

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 9 & 10

$11.99

$

In Stock, Qty 9

0

9

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

10

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

11

Echo 177200-42033

STARTER ASSY, RECOIL

Note: Includes ITEMS 12-18

$58.99

$

In Stock, Qty 10

0

12

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

13

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 6

0

14

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

15

Echo 17723242032

CASE, RECOIL STARTER

$24.99

$

In Stock, only 2 left!

0

------------------

ROPE, STARTER 3.0×1000

Note: RePower BULK OPTION: 99944440000

$

$

Not available

17

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

18

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

19

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

20

Echo 89011544530

LABEL, BRAND
(Superseded to Discontinued)

$

$

Not available

21

Echo 156801-44731

FLYWHEEL

$126.99

$

Usually ships in 2-4 days

0

22

Echo 17500042031

CLUTCH ASSY
(Superseded to 17500056830)

$32.99

$

In Stock, only 1 left!

0

23

Echo 17500542030

DRUM, CLUTCH

$

$

Not available

24

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 1 left!

0

25

Echo 90081406201

BEARING, BALL 6201-ZZ
(Superseded to 9405406201)

$14.99

$

In Stock, only 2 left!

0

26

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

27

Echo 175053-04920

STOPPER, PIPE
(Superseded to Discontinued)

$

$

Not available

28

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: S/N 001001 - 007683 INCLUDES ITEMS 29 - 37

$55.99

$

In Stock, only 1 left!

0

28

Echo 14580052630

MUFFLER ASSY
(Superseded to 14580052631)

Note: S/N 007684 & UP AND S/N 001001 & UP; INCLUDES ITEMS 29 - 37; MODEL TYPE 1E

$

$

Not available

29

Echo V104000160

GASKET, EXHAUST

Note: INCLUDED IN GASKET KIT 88900005960

$2.49

$

In Stock, Qty 20+

0

30

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$5.99

$

In Stock, only 2 left!

0

31

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

32

Echo 145866-42031

GASKET, EXHAUST

Note: INCLUDED IN GASKET KIT 88900005960

$2.99

$

In Stock, only 2 left!

0

33

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

34

Echo 14586342030

GUIDE, EXHAUST
(Superseded to A313000041)

Note: S/N 001001 - 007683

$4.49

$

Usually ships in 2-4 days

0

34

Echo 14581852130

OUTLET, EXHAUST

Note: S/N 007684 & UP AND S/N 001001 & UP; MODEL TYPE 1E

$8.49

$

Usually ships in 2-4 days

0

35

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

36

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

37

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

Echo 99944400040

BULK ROPE - 3×1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!

0

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

$

$

Not available
