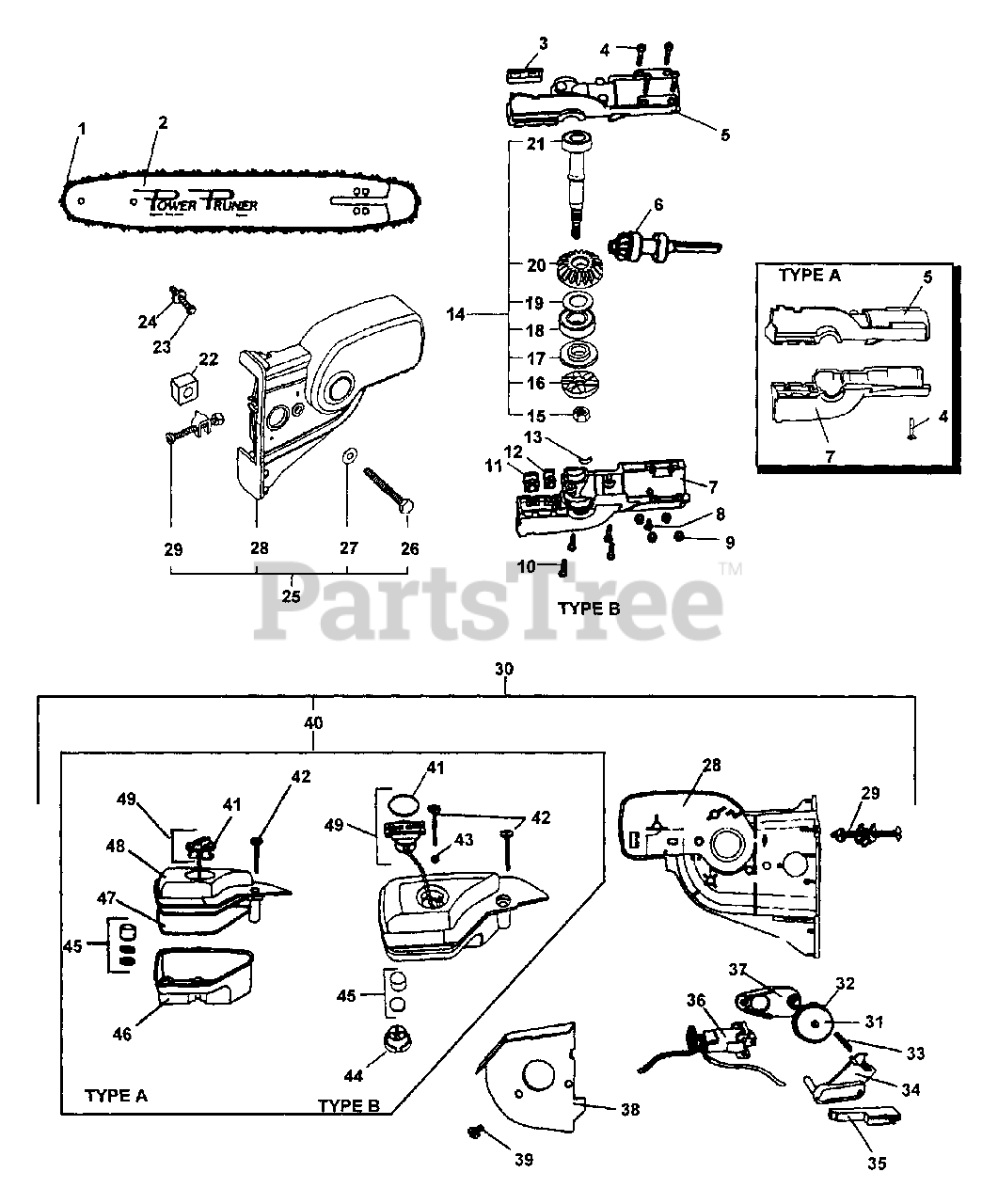

PP-1250 - Echo Pole Saw (Type 1E) Gearcase, Oiler Asy, Guide Bar, Chain Parts Diagram

Pole Saw (Type 1E)

Gearcase, Oiler Asy, Guide Bar, Chain Parts Diagram

  • Title

Echo 61050122460

CUTTING HEAD ASSY W/ B & C
(Superseded to 90081)

Note: Includes ITEMS 1-49

$220.99

$

In Stock, Qty 12

0

Echo 61040022360

CUTTING HEAD ASSY W/O B & C
(Superseded to 90081)

Note: INCLUDES ITEMS 3 - 49

$220.99

$

In Stock, Qty 12

0

1

Echo 43161122360

SAW CHAIN - 12" (30cm)

$24.99

$

In Stock, only 3 left!

0

2

Echo 43041122360

GUIDE BAR - 12" (30cm)

$

$

Not available

3

Echo 43305522360

BRACKET, GUIDE BAR

$11.99

$

In Stock, only 2 left!

0

4

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, only 4 left!

0

5

Echo 61040722460

CASE, GEAR - UPPER
(Superseded to Discontinued)

$

$

Not available

6

Echo 61030922360

SHAFT GEAR ASSY
(Superseded to 61030922361)

$63.99

$

In Stock, only 2 left!

0

7

Echo 61040722360

CASE, GEAR - LOWER

$20.99

$

Usually ships in 2-4 days

0

8

Echo 90005300200

SCREW
(Superseded to Discontinued)

$

$

Not available

9

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 8

0

10

Echo 90005300300

SCREW - 10-24 X 7/8"

$1.49

$

Usually ships in 2-4 days

0

11

Echo 11007622360

SPACER
(Superseded to Discontinued)

$

$

Not available

12

Echo 11007622460

SPACER

$9.99

$

Usually ships in 2-4 days

0

13

Echo 10491022360

CUSHION

$1.99

$

Usually ships in 2-4 days

0

14

Echo 61030622360

GEAR SHAFT ASSY

Note: Includes ITEMS 15-21

$136.99

$

In Stock, only 1 left!

0

15

Echo 90003000200

NUT

$0.99

$

In Stock, only 2 left!

0

16

Echo 30281022360

SPROCKET, DRIVE

$30.99

$

Usually ships in 2-4 days

0

17

Echo 30281222360

SPACER, SPROCKET

$9.49

$

Usually ships in 2-4 days

0

18

Echo 90080206001

BEARING, BALL - 6001 DDU
(Superseded to 9404206001)

$11.99

$

In Stock, only 2 left!

0

19

Echo 10013222060

WASHER

$0.99

$

Usually ships in 2-4 days

0

20

Echo 61031122360

GEAR - BEVEL

$20.99

$

Usually ships in 2-4 days

0

21

Echo 61036022360

DRIVESHAFT SPROCKET ASSY

$28.99

$

Usually ships in 2-4 days

0

22

Echo 11007622560

SPACER
(Superseded to Discontinued)

$

$

Not available

23

Echo 90005100100

SCREW - 1/4-20 X 1-3/4"
(Superseded to V204000090)

$0.99

$

In Stock, Qty 13

0

24

Echo 17802022360

WASHER

$3.49

$

Usually ships in 2-4 days

0

25

Echo 43760223960

OILER COVER ASSY

Note: INCLUDES ITEMS 26 - 29; TO BE ANNOUNCED

$67.99

$

Usually ships in 2-4 days

0

26

Echo 90005600200

BOLT - 1/4-20 X 2-1/4"

$0.99

$

In Stock, only 2 left!

0

27

Echo 90003500200

WASHER

$0.99

$

Usually ships in 2-4 days

0

28

Echo 43760522360

COVER, OIL PUMP

$34.99

$

Usually ships in 2-4 days

0

29

Echo 43309522360

TENSIONER KIT

$16.99

$

In Stock, only 2 left!

0

30

Echo 43700022360

AUTO-OILER ASSY
(Superseded to 90081)

Note: INCLUDES ITEMS 28, 29 & 31 - 49

$220.99

$

In Stock, Qty 12

0

31

Echo 43710422360

CAM, OIL PUMP
(Superseded to Discontinued)

Note: INCLUDES ITEM 32

$

$

Not available

32

Echo 43712222360

O-RING

$1.99

$

In Stock, only 2 left!

0

33

Echo 10494022360

SPRING

$1.49

$

Usually ships in 2-4 days

0

34

Echo 70700022360

LINK, OILER IDLER
(Superseded to Discontinued)

$

$

Not available

35

Echo 16821822160

PIPE, OIL OUTLET

$2.99

$

In Stock, only 4 left!

0

36

Echo 43700022460

AUTO-OILER ASSY
(Superseded to Discontinued)

$

$

Not available

37

Echo 43704122360

LINK, OILER DRIVE

$5.49

$

Usually ships in 2-4 days

0

38

Echo 69902522360

GUARD

$26.99

$

Usually ships in 2-4 days

0

39

Echo 90005200200

SCREW

$0.99

$

Usually ships in 2-4 days

0

40

Echo 43600522360

OIL TANK ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 41 - 49

$

$

Not available

41

Echo 43712222060

O-RING

$1.99

$

Usually ships in 2-4 days

0

42

Echo 90005200300

SCREW

$0.99

$

Usually ships in 2-4 days

0

43

Echo 27021722460

O-RING

$0.99

$

In Stock, Qty 8

0

44

Echo 43724322360

HOUSING, OIL FILTER

$1.99

$

In Stock, only 4 left!

0

45

Echo 43620522360

OIL FILTER ASSY

$4.49

$

Usually ships in 2-4 days

0

46

------------------

BODY, OIL TANK

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

47

Echo 43712223960

O-RING

Note: TO BE ANNOUNCED

$3.49

$

Usually ships in 2-4 days

0

48

------------------

COVER, OIL TANK

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

49

Echo 43600122060

CAP ASSY

$9.99

$

Usually ships in 2-4 days

0
