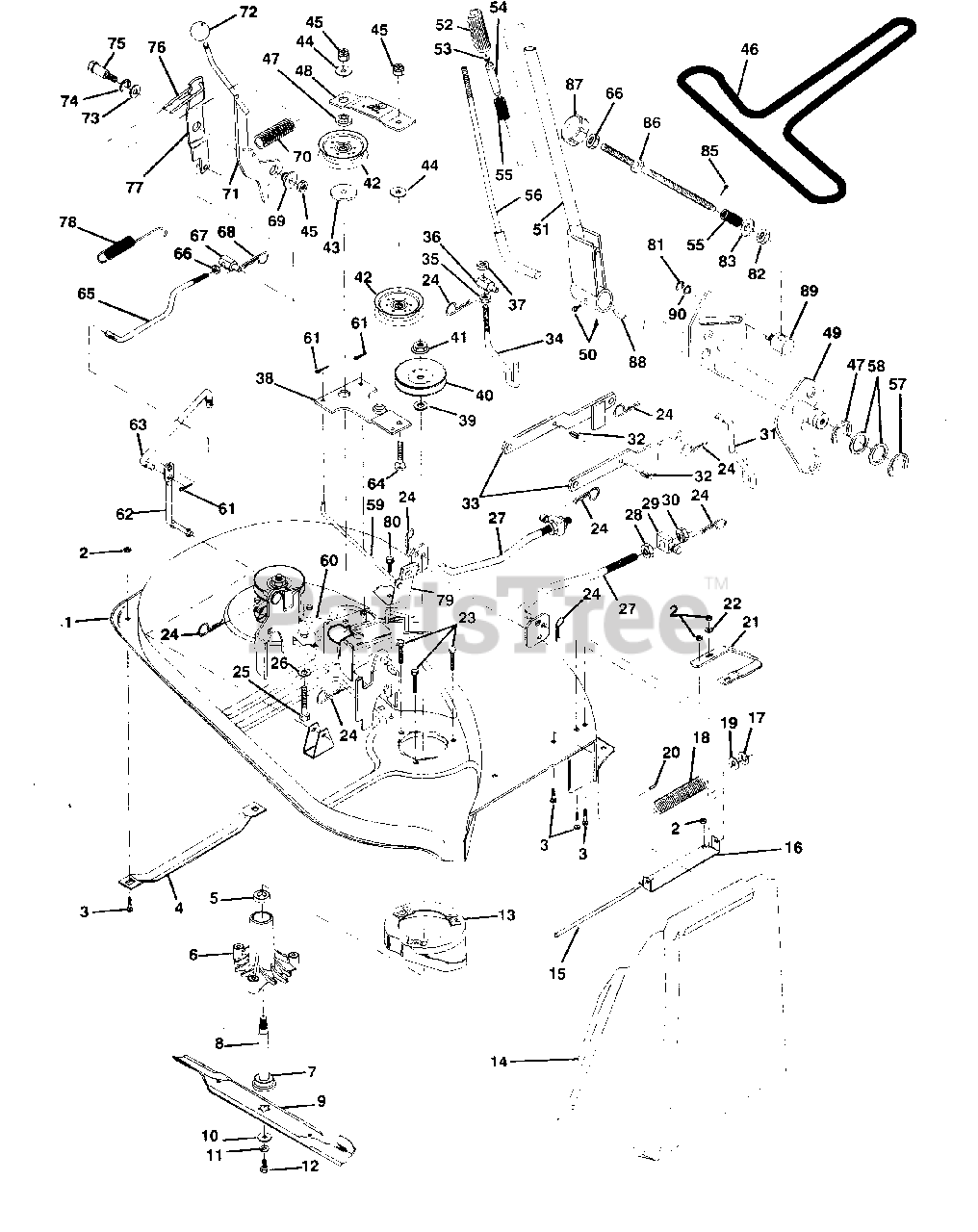

PP 12538 - Poulan Pro Lawn Tractor MOWER Parts Diagram

Lawn Tractor

MOWER Parts Diagram

  • Title

1

Poulan 532129365

Mower Asm. (AYP part number)
(Superseded to 532145775)

$

$

Not available

2

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

4

Poulan 532125074

Runner, LH (AYP part number)
(Superseded to 532007631)

$18.99

$

In Stock, only 4 left!

0

5

Poulan 532110485

Bearing, Ball, Mandrel (AYP part number)

$10.99

$

In Stock, Qty 20+

0

6

Poulan 532130794

Mandrel Asm. (AYP part number)

Note: (Includes Key No.'s 36, 37, 39-41, 45, 46, and 74)

$44.99

$

In Stock, Qty 20+

0

7

Poulan 532129895

Bearing, Ball (AYP part number)
(Superseded to 738220419)

$26.99

$

In Stock, Qty 11

0

8

Poulan 532128285

Shaft, Mandrel, Mower, Vented (AYP part number)
(Superseded to 532133172)

$26.99

$

In Stock, Qty 20+

0

9

Poulan 532127842

Blade, Mower, High Performance (AYP part number)
(Superseded to 532138497)

$21.99

$

In Stock, Qty 20+

0

10

Poulan 532129962

Washer, Hard, Mower, Vented (AYP part number)
(Superseded to 532140296)

$6.49

$

In Stock, Qty 6

0

11

Poulan 810030600

Washer, Lock Hvy 3/8 (AYP part number)
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

12

Poulan 532850857

Bolt, Blade 3/8-24 x 1-1/4 Gr. 8 (AYP part number)

$3.99

$

In Stock, Qty 17

0

13

Poulan 532128961

Stripper, Mower, Vented (AYP part number)
(Superseded to 532140329)

$7.49

$

Usually ships in 3-10 days

0

14

Poulan 532106736

Shield, Deflector (AYP part number)

$

$

Not available

15

Poulan 532106735

Rod, Hinge (AYP part number)

$8.99

$

In Stock, only 1 left!

0

16

Poulan 532105896

Bracket, Deflector, Mower (AYP part number)
(Superseded to 532137607)

$6.49

$

In Stock, only 4 left!

0

17

Poulan 532110452

Nut, Push (AYP part number)

$3.99

$

In Stock, Qty 20+

0

18

Poulan 532106734

Spring, Deflector (AYP part number)
(Superseded to 532123713)

$5.99

$

In Stock, Qty 10

0

19

Poulan 819111016

Washer 11/32 x 5/8 x 16 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

20

Poulan 532105304

Cap, Sleeve (AYP part number)

$4.99

$

In Stock, Qty 20+

0

21

Poulan 532128772

Runner, RH (AYP part number)

$

$

Not available

22

Poulan 819111216

Washer 11/32 x 3/4 x 16 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

23

Poulan 532078156

Bolt, Mandrel

$

$

Not available

24

Poulan 532124670

Retainer, Spring (AYP part number)
(Superseded to 532085902)

$

$

Not available

25

Poulan 872110618

Bolt, Carriage 3/8-16 x 2-1/4 (AYP part number)

$6.49

$

In Stock, only 1 left!

0

26

Poulan 532851074

Washer (AYP part number)

$4.99

$

In Stock, Qty 20+

0

27

Poulan 532127219

Link Asm., Front

$

$

Not available

28

Poulan 873350800

Nut, Jam Hex 1/2-13 UNC (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 20+

0

29

Poulan 532130171

Trunnion (AYP part number)
(Superseded to 532175689)

$

$

Not available

30

Poulan 873680800

Nut, Crownlock 1/2-13 UNC (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 20+

0

31

Poulan 532127224

Link, Lift, RH (AYP part number)

$

$

Not available

32

Poulan 532128763

Pin, Spring 5/16-3/4 (AYP part number)

$

$

Not available

33

Poulan 532133710

Arm, Suspension, Rear (AYP part number)

$

$

Not available

34

Poulan 532127223

Link, Lift, LH (AYP part number)

$

$

Not available

35

Poulan 873360700

Nut, Hex Jam ASF 7/16-20 UNF (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

36

Poulan 532110447

Trunnion, Lift (AYP part number)
(Superseded to 532132793)

$

$

Not available

37

Poulan 873710700

Nut, Crownlock Jam 7/16-24 UNF (AYP part number)
(Superseded to 73710700)

$2.99

$

Usually ships in 3-10 days

0

38

Poulan 532133736

Idler, Arm (AYP part number)

$

$

Not available

39

Poulan 532129963

Washer, Spacer, Mower, Vented (AYP part number)
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

40

Poulan 532129206

Pulley, Mandrel, Single (AYP part number)
(Superseded to 532153532)

$10.99

$

In Stock, Qty 20+

0

41

Poulan 873050900

Nut, Flangelock 9/16 (AYP part number)
(Superseded to 532139729)

$8.99

$

In Stock, only 2 left!

0

42

Poulan 532131494

Pulley, Idler, Flat (AYP part number)
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

43

Poulan 532122052

Spacer, Retainer (AYP part number)
(Superseded to 532165723)

$6.49

$

In Stock, Qty 13

0

44

Poulan 819131612

Washer 13/32 x 1 x 12 Ga. (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

45

Poulan 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

46

Poulan 532131290

Belt (AYP part number)
(Superseded to 532144200)

$42.99

$

In Stock, Qty 20+

0

47

Poulan 532133502

Spacer Retainer (AYP part number)

$6.49

$

In Stock, only 2 left!

0

48

Poulan 532133503

Upper, Arm Idler (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 532131874

Shaft Asm., Lift

$

$

Not available

50

Poulan 823180606

Screw, Set, Hex Skt. 3/8-16 x 3/8 (AYP part number)

$

$

Not available

51

Poulan 532121719

Lever, Lift (AYP part number)

$

$

Not available

52

Poulan 532109413

Grip, Handle (AYP part number)
(Superseded to 532125631)

$6.99

$

In Stock, only 2 left!

0

53

Poulan 532124526

Button, Plunger (AYP part number)
(Superseded to 532125925)

$

$

Not available

54

Poulan 532122364

Plunger, Lever, Lift (AYP part number)
(Superseded to 532125925)

$

$

Not available

55

Poulan 532124874

Spring Compression (AYP part number)
(Superseded to 532002876)

$7.49

$

In Stock, only 1 left!

0

56

Poulan 532121719

Rod Asm., Lever (AYP part number)

$

$

Not available

57

Poulan 812000002

Ring, E (AYP part number)

$7.49

$

In Stock, Qty 11

0

58

Poulan 819211416

Washer 21/32 x 7/8 x 16 Ga. (AYP part number)
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

59

Poulan 532131288

Rod, Brake RH (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

60

Poulan 532131289

Rod, Brake LH (AYP part number)

$

$

Not available

61

Poulan 876020312

Pin, Cotter 3/32 x 3/4 (AYP part number)
(Superseded to 876020308)

$

$

Not available

62

Poulan 532133551

Rod, Pivot (AYP part number)

$8.99

$

In Stock, only 4 left!

0

63

Poulan 532133504

Rod, Clutch, Secondary (AYP part number)

$

$

Not available

64

Poulan 872110614

Bolt, Carriage 3/8-16 x 1-3/4 (AYP part number)
(Superseded to 596136201)

$3.99

$

In Stock, Qty 8

0

65

Poulan 532133550

Rod, Clutch Primary (AYP part number)
(Superseded to 532134666)

$

$

Not available

66

Poulan 873350600

Nut, Hex Jam 3/8-16 (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

67

Poulan 532133205

Trunnion 3/8-16
(Superseded to 532142028)

$

$

Not available

68

Poulan 532124788

Spring, Retainer (AYP part number)
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

69

Poulan 532127498

Bushing (AYP part number)

$

$

Not available

70

Poulan 532128759

Spring (AYP part number)
(Superseded to 532153701)

$

$

Not available

71

Poulan 532131813

Arm Asm., Clutch, Primary

$

$

Not available

72

Poulan 532132044

Knob

$

$

Not available

73

Poulan 532121748

Washer 25/32 x 1-5/8 x 16 Ga. (AYP part number)

$3.49

$

In Stock, Qty 20+

0

74

Poulan 812000029

Ring, Klip (AYP part number)

$3.99

$

In Stock, Qty 20+

0

75

Poulan 532128903

Bolt, Shoulder (AYP part number)

$6.49

$

In Stock, only 3 left!

0

76

Poulan 532127845

Keeper, Spring (AYP part number)

$

$

Not available

77

Poulan 532127847

Arm, Clutch, Secondary (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

78

Poulan 532131870

Spring, Return (AYP part number)

$18.99

$

Usually ships in 3-10 days

0

79

Poulan 532130840

Brake Asm., Mower, Vented (AYP part number)

$12.99

$

Usually ships in 3-10 days

0

80

Poulan 817490512

Screw, Hex Thdrol 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

81

Poulan 812000037

Ring, Klip (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

82

Poulan 532110807

Nut, Special (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

83

Poulan 819131016

Washer 13/32 x 5/8 x 16 Ga. (AYP part number)

$6.49

$

In Stock, only 2 left!

0

85

Poulan 876020308

Pin, Cotter 3/32 x 1/2 (AYP part number)
(Superseded to 532003145)

$

$

Not available

86

Poulan 532110729

Rod, Adjust, Lift (AYP part number)

$

$

Not available

87

Poulan 532121891

Knob, Adjust, Lift (AYP part number)
(Superseded to 121891X)

$

$

Not available

88

Poulan 532124997

Key, Woodruff (AYP part number)

$

$

Not available

89

Poulan 532110810

Trunnion

$21.99

$

Usually ships in 3-10 days

0

90

Poulan 819151216

Washer 15/32 x 3/4 x 16 Ga. (AYP part number)
(Superseded to 19151216)

$

$

Not available

Poulan 532131455

Deck, Complete (AYP part number)
(Superseded to 532132378)

Note: Not Shown.

$

$

Not available
