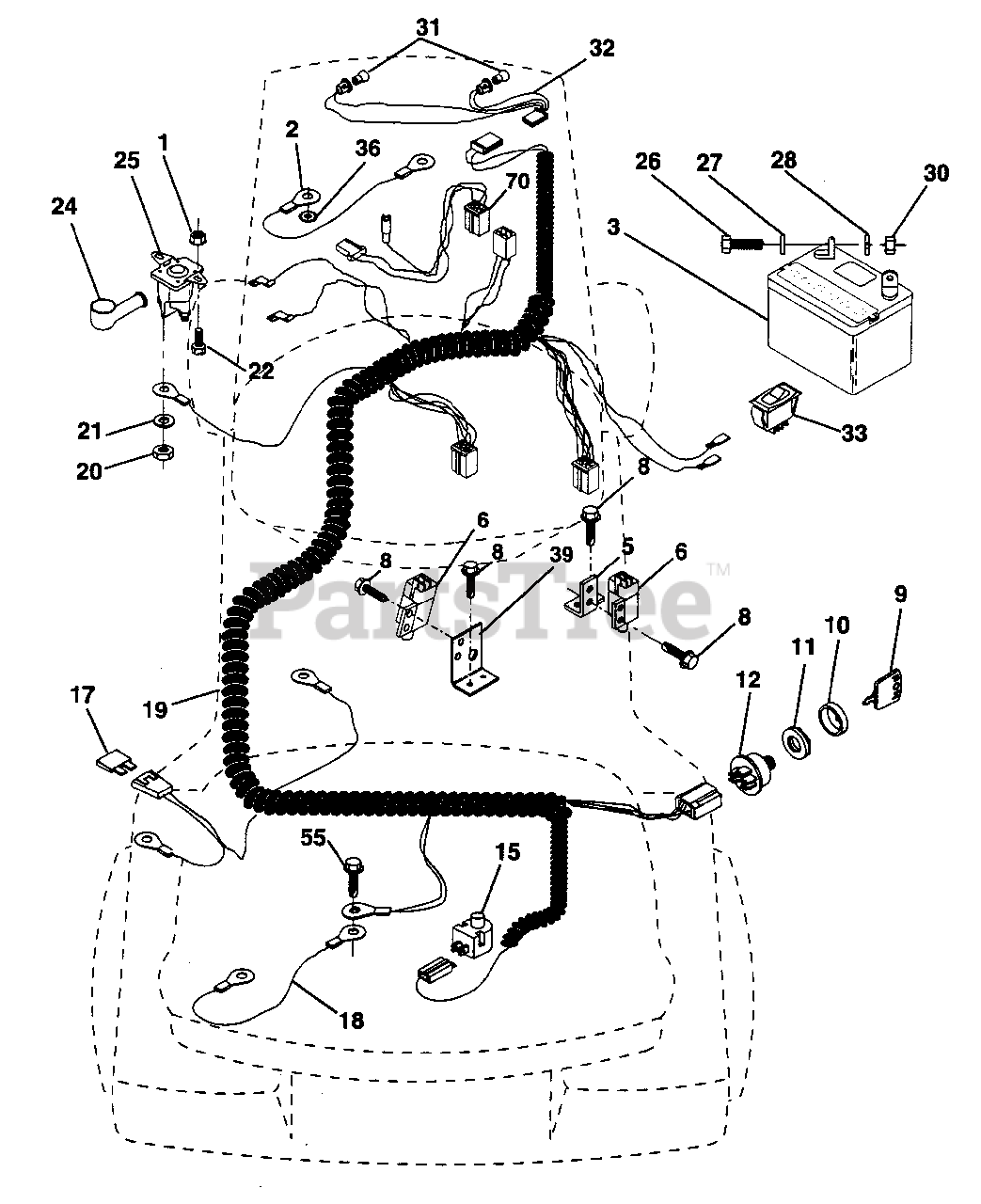

PP 125H38 KA - Poulan Pro Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Poulan 873640400

Nut, Hex Keps 1/4-20 (AYP part number)

$

$

Not available

2

Poulan 532108423

Assembly, Cable (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

3

Poulan 532144924

Battery (AYP part number)
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

5

Poulan 532108236

Bracket, Switch (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

6

Poulan 532109553

Switch, Interlock (4-terminal) (AYP part number)
(Superseded to 539101080)

$7.49

$

In Stock, Qty 20+

0

8

Poulan 817021008

Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number)

$4.99

$

In Stock, Qty 20+

0

9

Poulan 532140401

Key, Molded (AYP part number)

$6.49

$

In Stock, Qty 20+

0

10

Poulan 532141226

Cover, Key Ignition (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 532140400

Nut, Ignition (AYP part number)
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 532144921

Switch, Ignition (AYP part number)
(Superseded to 532145499)

$67.99

$

In Stock, only 3 left!

0

15

Poulan 532121305

Switch, Plunger (AYP part number)
(Superseded to 532421062)

$10.99

$

In Stock, Qty 19

0

17

Poulan 532108824

Fuse (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 532128353

Assembly, Cable (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 532146064

Harness, Ignition (AYP part number)

$

$

Not available

20

Poulan 873350400

Nut, Hex Jam 1/4-20 (AYP part number)
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Poulan 810090400

Washer, Lock 1/4 (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

22

Poulan 871110408

Bolt, Fin. Hex 1/4-20 UNC x 1/2 Gr. 5 (AYP part number)
(Superseded to 71110408)

$2.99

$

Usually ships in 3-10 days

0

24

Poulan 532131563

Cover, Terminal (AYP part number)
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

25

Poulan 532145673

Solenoid (AYP part number)
(Superseded to 532146154)

$24.99

$

In Stock, Qty 20+

0

26

Poulan 874760412

Bolt, Hex Hd. 1/4-20 UNC x 3/4 (AYP part number)

$7.49

$

In Stock, Qty 5

0

27

Poulan 819091016

Washer 9/32 x 5/8 x 16 (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 12

0

28

Poulan 810040400

Washer, Lock 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

30

Poulan 873220400

Nut, Fin. Hex 1/4-20 UNC (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

31

Poulan 532004152

Bulb, Light (AYP part number)

$4.99

$

In Stock, Qty 20+

0

32

Poulan 532136850

Harness, Headlight (AYP part number)

$

$

Not available

33

Poulan 532110712

Switch, Light (AYP part number)

$8.99

$

In Stock, Qty 11

0

35

Poulan 811050500

Washer, Lock 5/16 (AYP part number)
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 811150400

Washer Lock Inter. Tooth 1/4 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

39

Poulan 532141735

Bracket Switch Clutch (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

55

Poulan 817490508

Screw, Thdrol. 5/16-18 x 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

70

Poulan 532140413

Harness Engine (AYP part number)

$

$

Not available
