PP 125R38J A - Poulan Lawn Tractor (1994) ENGINE Parts Diagram

Lawn Tractor

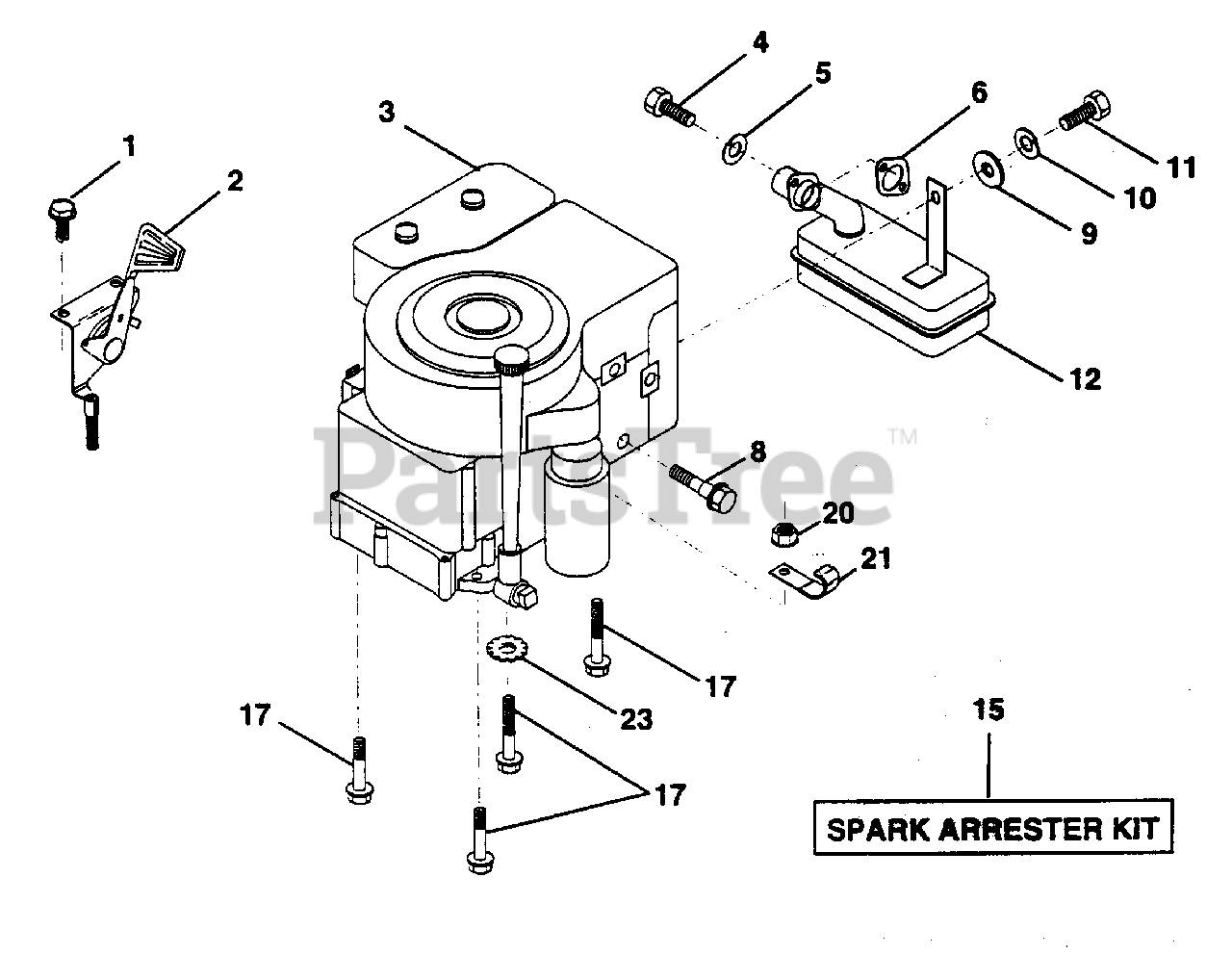

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 817060408

Screw, Hex Head, Thread Cutting 1/4-20 x 1/2

$4.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532132752

Control, Throttle

$24.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 871070512

Screw, Hex Cap 5/16-18 x 3/4
(Superseded to 532192334)

$

$

Not available

5

Electrolux/AYP 810040500

Washer, Lock, Heavy Helical Spring 5/16

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532125593

Gasket, Exhaust
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532121094

Bolt, Shoulder 5/16

$2.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 819101210

Washer 5/16 x 3/4 x 10 Gauge

$

$

Not available

10

Electrolux/AYP 810040400

Washer, Lock, Heavy Helical Spring 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

11

Electrolux/AYP 874760412

Bolt, Hex Hd. 1/4-20 x 3/5

$7.49

$

In Stock, Qty 5

0

12

Electrolux/AYP 532137437

Muffler

$242.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532137180

Arrester, Spark (Optional Equipment)
(Superseded to 532121851)

$

$

Not available

17

Electrolux/AYP 817490624

Screw, Hex Washer Head, Thd., Roll. 3/8-16 x 1-1/2
(Superseded to 874930624)

$

$

Not available

20

Electrolux/AYP 873510600

Nut, Keps, Hex 3/8-16

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532124996

Clip, Fuel Line
(Superseded to 532002751)

$

$

Not available

23

Electrolux/AYP 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0
