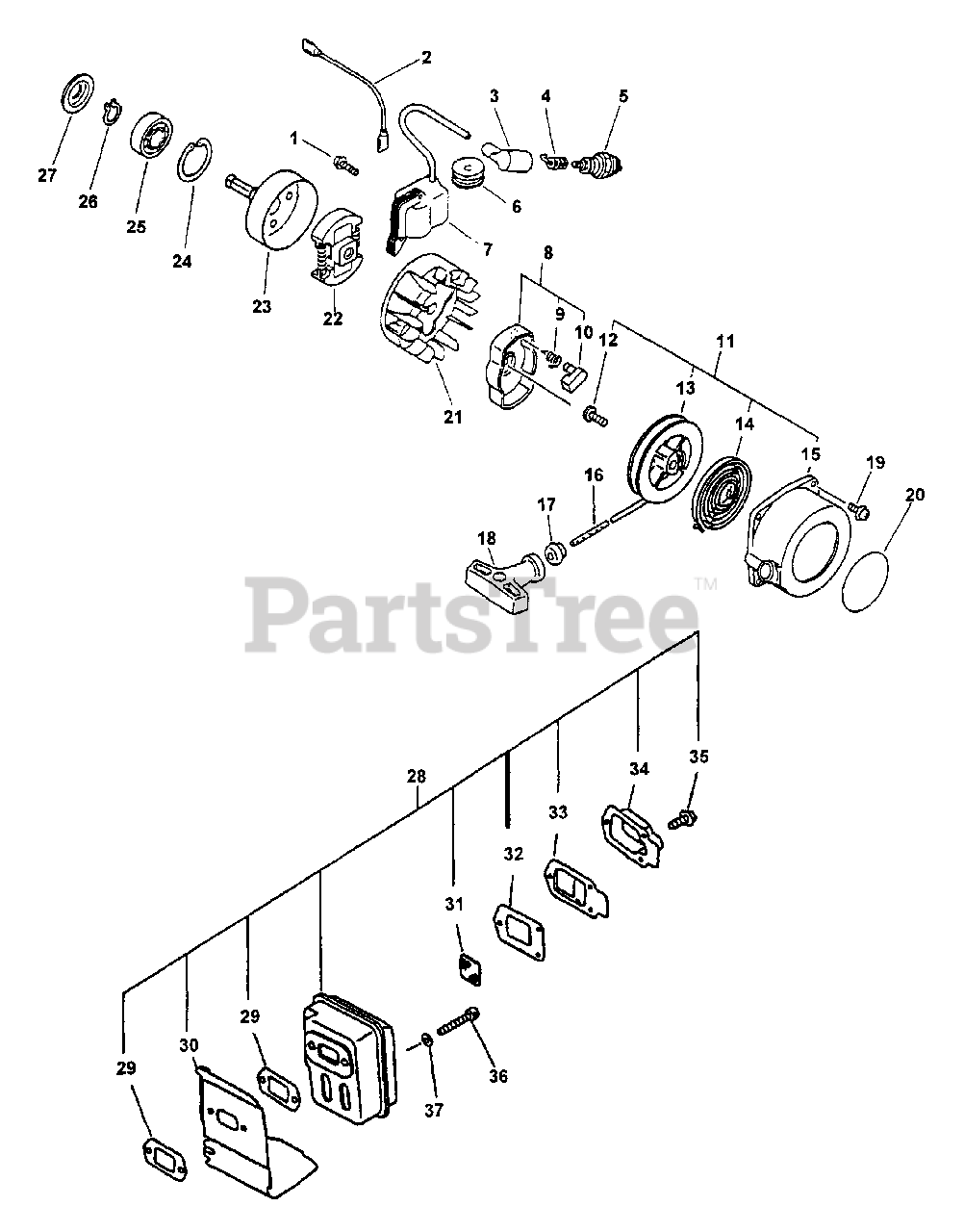

PP-1260 - Echo Pole Saw (Type 1) Ignition, Starter, Clutch Parts Diagram

Pole Saw (Type 1)

Ignition, Starter, Clutch Parts Diagram

  • Title

1

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

2

Echo 16202152130

LEAD - GROUND
(Superseded to 16201052830)

$4.49

$

In Stock, only 2 left!

0

3

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

4

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

5

Echo 99944500071

SPARK PLUG -- BPM-7Y

$

$

Not available

6

Echo 15011244330

GROMMET
(Superseded to Discontinued)

$

$

Not available

7

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

$133.99

$

In Stock, only 1 left!

0

8

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: INCLUDES ITEMS 9 & 10

$18.99

$

In Stock, Qty 7

0

9

Echo 17723412220

SPRING, RETURN

$4.49

$

In Stock, Qty 20+

0

10

Echo 17721844330

PAWL, STARTER - BLACK

$3.99

$

In Stock, Qty 20+

0

11

Echo 17720042033

STARTER ASSY

Note: Includes ITEMS 12-18

$54.99

$

In Stock, Qty 20+

0

12

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 10

0

13

Echo 17721544430

REEL, ROPE

$9.99

$

In Stock, Qty 6

0

14

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$10.99

$

In Stock, Qty 20+

0

15

Echo 17723242032

CASE, STARTER

$23.99

$

In Stock, only 2 left!

0

16

------------------

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$

$

Not available

17

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

18

Echo 17722806530

GRIP, STARTER

$5.49

$

In Stock, Qty 10

0

19

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

20

Echo 89011544530

LABEL - BRAND
(Superseded to Discontinued)

$

$

Not available

21

Echo 15680144731

FLYWHEEL

$117.99

$

Usually ships in 2-4 days

0

22

Echo 17500049030

CLUTCH ASSY
(Superseded to 17500056830)

$30.99

$

In Stock, only 2 left!

0

23

Echo 17500542030

DRUM, CLUTCH

$40.99

$

Usually ships in 2-4 days

0

24

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 11

0

25

Echo 90081406201

BEARING, BALL - 6201
(Superseded to 9405406201)

$12.99

$

Usually ships in 2-4 days

0

26

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

27

Echo 17505304920

RETAINER, PIPE

$0.99

$

Usually ships in 2-4 days

0

28

Echo 14580052630

MUFFLER ASSY
(Superseded to 14580052631)

Note: INCLUDES ITEMS 29 - 37

$59.99

$

Usually ships in 2-4 days

0

29

Echo V104000160

GASKET, EXHAUST

Note: INCLUDED IN KIT GASKET KIT 88900005960

$2.49

$

In Stock, Qty 8

0

30

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$5.49

$

In Stock, Qty 8

0

31

Echo 14586240630

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, Qty 5

0

32

Echo 14586642031

GASKET, EXHAUST

Note: INCLUDED IN KIT GASKET KIT 88900005960

$2.99

$

In Stock, Qty 13

0

33

Echo 14587642030

GASKET, EXHAUST - INNER

$4.49

$

In Stock, only 3 left!

0

34

Echo 14581852130

GUIDE, EXHAUST - OUTER

$7.99

$

Usually ships in 2-4 days

0

35

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 16

0

36

Echo 90010505055

SCREW - 5X55

$1.99

$

In Stock, Qty 20+

0

37

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$33.99

$

In Stock, only 4 left!

0

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

$

$

Not available
