PP 12R38MI A - Poulan Lawn Tractor (1993) FENDER / CHASSIS Parts Diagram

Lawn Tractor

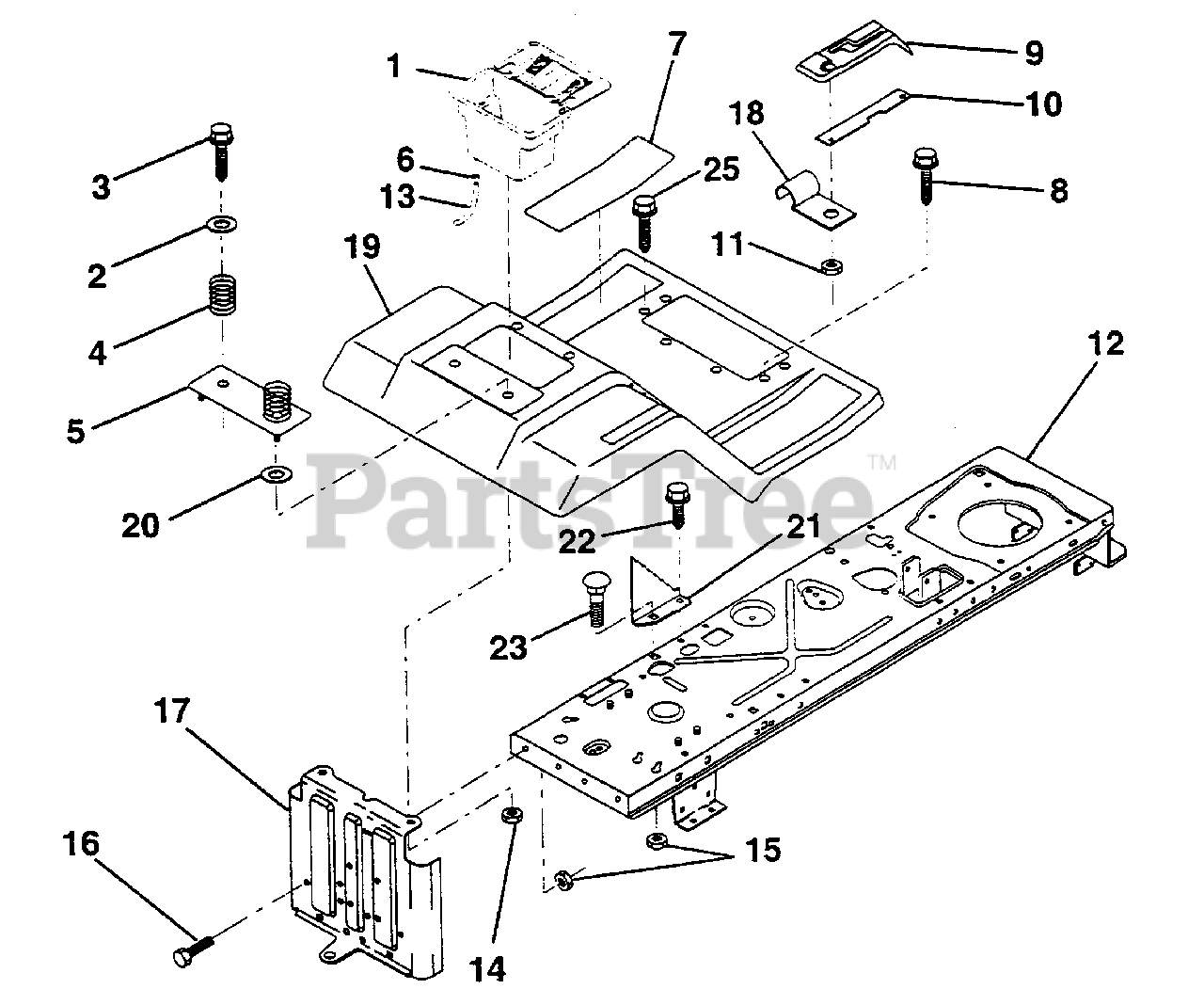

FENDER / CHASSIS Parts Diagram

  • Title

1

Electrolux/AYP 532129965

Box, Battery
(Superseded to 532144940)

$

$

Not available

2

Electrolux/AYP 819132012

Washer 13/32 x 1-1/4 x 12 Gauge

$1.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 817490612

Screw, Hex Washer Head, Thd., Roll. 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 532124181

Spring, Compression, Seat
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

5

Electrolux/AYP 532125139

Plate Assembly, Battery

$

$

Not available

6

Electrolux/AYP 532109596

Clamp, Hose

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532134214

Pad, Footrest

$

$

Not available

8

Electrolux/AYP 817490512

Screw, Hex Washer Head, Thd., Roll. 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 532126995

Console, Shift Control

$14.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532124307

Bar, Shift Lock

$2.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532124346

Nut, Self-Threading, Washer Head 3/16

$4.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 532137097

Assembly, Chassis
(Superseded to 532139893)

$

$

Not available

13

Electrolux/AYP 532109238

Tube, Battery Drain

$

$

Not available

14

Electrolux/AYP 873510400

Nut, Hex, Keps 1/4-20
(Superseded to 873640400)

$

$

Not available

15

Electrolux/AYP 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 874760512

Bolt, Hex Head 5/16-18 UNC x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532127880

Drawbar

$

$

Not available

18

Electrolux/AYP 532126470

Clip, Insulated

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532125394

Fender/Footrest

$

$

Not available

20

Electrolux/AYP 819091413

Washer 9/32 x 7/8 x 13 Gauge
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532132562

Plate, Depth Stop
(Superseded to 140297)

$

$

Not available

22

Electrolux/AYP 817490508

Screw, Thd., Roll. 5/16-18 x 1/2

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 872110506

Bolt, Carriage 5/16-18 x 3/4

$7.49

$

In Stock, Qty 20+

0

25

Electrolux/AYP 817490516

Screw, Hex Washer Head, Thd., Roll. 5/16-18x1
(Superseded to 539113226)

$6.49

$

Usually ships in 3-10 days

0
