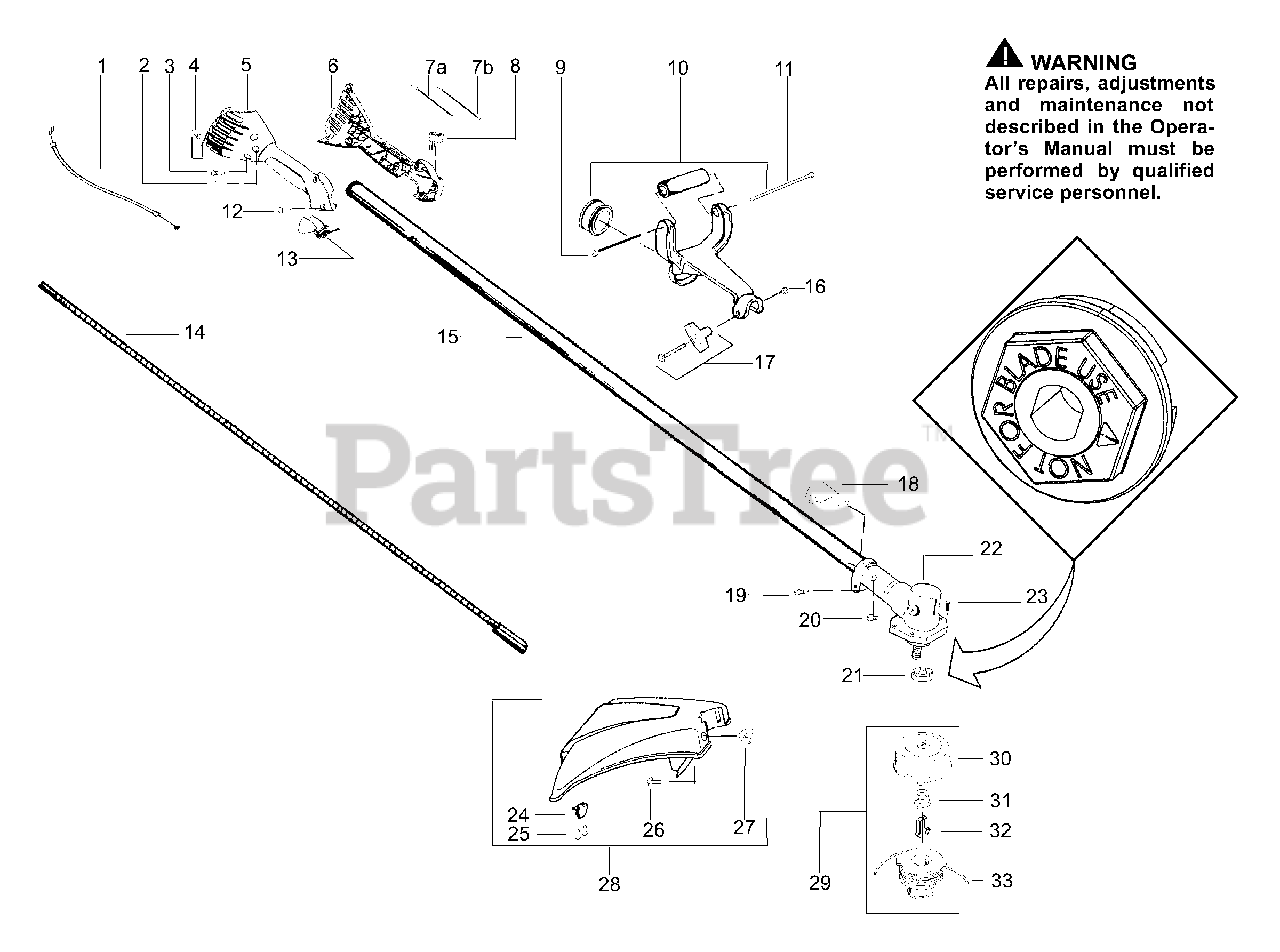

PP 131 - Poulan Pro String Trimmer Handle & Shaft Assembly Parts Diagram

String Trimmer

Handle & Shaft Assembly Parts Diagram

  • Title

1

Poulan 530054942

Assy-Throttle cable

$7.49

$

In Stock, only 3 left!

0

2

Poulan 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

3

Poulan 530015886

Screw-10-24

$6.49

$

In Stock, Qty 17

0

4

Poulan 530015886

Screw-handle/fan hsg.

$6.49

$

In Stock, Qty 17

0

5

Poulan 530054837

Throttle Hsg.-Right

$

$

Not available

6

Poulan 530071553

Kit-Left Throttle Hsg.

$9.99

$

Usually ships in 3-10 days

0

7A

Poulan 530054943

Assy-Wire Assy-Front wire

$

$

Not available

7B

Poulan 530055724

Assy-Wire Assy- Front Wire (upper)

$

$

Not available

8

Poulan 530071356

Kit-Switch

$8.99

$

Usually ships in 3-10 days

0

9

Poulan 530015785

Nut 12-24

$1.49

$

Usually ships in 3-10 days

0

10

Poulan 530010958

Assy-Antivibe Handle

$

$

Not available

11

Poulan 530015784

Bolt

$1.99

$

Usually ships in 3-10 days

0

12

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

13

Poulan 530054940

Trigger-Throttle

$3.99

$

In Stock, Qty 10

0

14

Poulan 530095938

Shaft-Flex

$21.99

$

Usually ships in 3-10 days

0

15

Poulan 530055355

Assy-Driveshaft

$44.99

$

Usually ships in 3-10 days

0

16

Poulan 530015197

Nut 1/4-20"

$6.49

$

In Stock, Qty 5

0

17

Poulan 530069252

Assy-"T" Handle
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

18

Poulan 530095812

Bracket - Shield

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

20

Poulan 530016371

Screw

$

$

Not available

21

Poulan 530095814

Non-Blade Dust cup

$7.49

$

Usually ships in 3-10 days

0

22

Poulan 530071584

Assy.-Gearbox non blade

$

$

Not available

23

Poulan 530016312

Screw

$6.49

$

In Stock, Qty 6

0

24

Poulan 530052285

Limiter-Line

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

26

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 530016118

Wingnut
(Superseded to 530091373)

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 530069779

Kit-Shield Ass'y.

Note: (Incls. 24-27)

$

$

Not available

29

Poulan 952711581

Accy.- Cutting Head
(Superseded to 952711550)

$

$

Not available

30

Poulan 530095772

Assy. - Hub/Arbor (3/8lh , 2x)

$

$

Not available

31

Poulan 530053241

Spring - Return

$

$

Not available

32

Poulan 530401957

Retainer - Spool

$4.99

$

In Stock, Qty 8

0

33

Poulan 952711580

Accy.-Wound Spool
(Superseded to 952711551)

$

$

Not available

Poulan 530088492

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530055350

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
