PP 1330 ES (961920032-00) - Poulan Pro Snow Thrower (2009-08) Wheels Parts Diagram

Snow Thrower

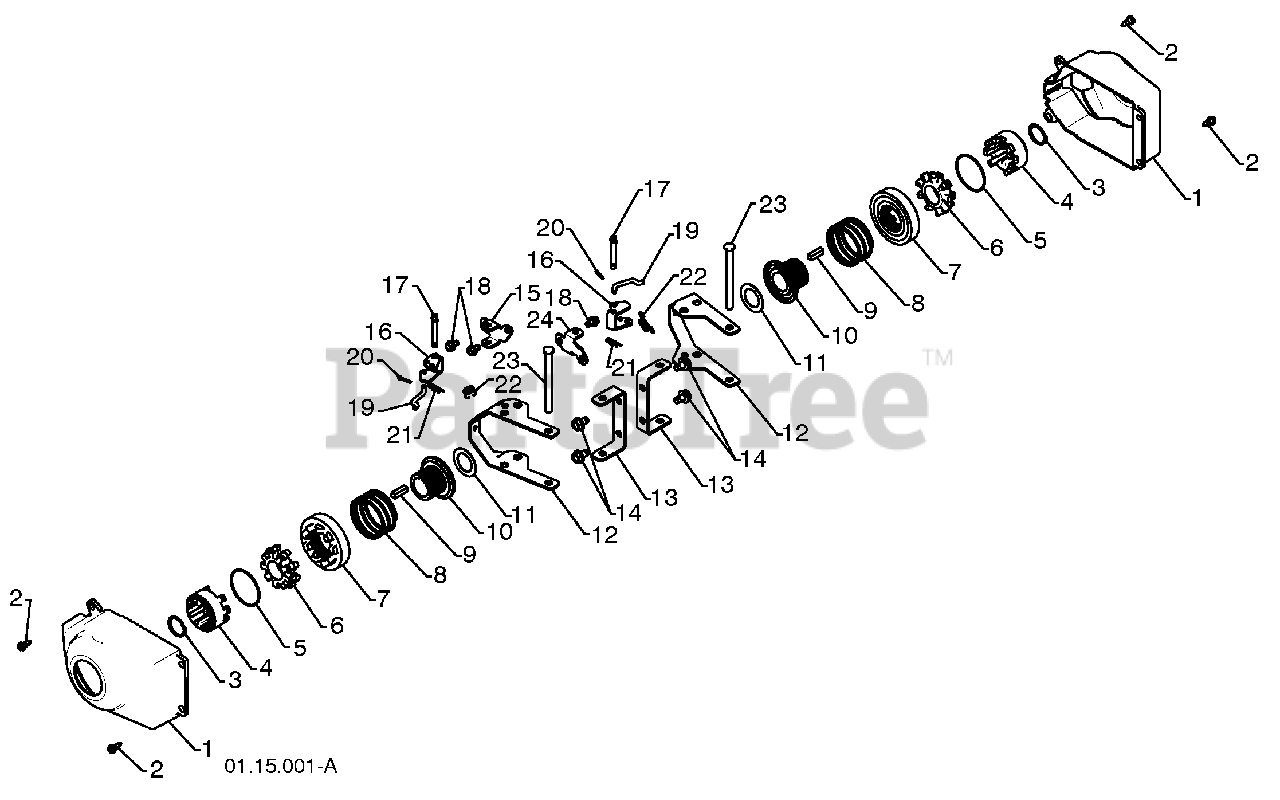

Wheels Parts Diagram

  • Title

1

Electrolux/AYP 405161

COVER
(Superseded to 532405161)

$10.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 184471

SHOULDER SCREW
(Superseded to 532184471)

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 12000045

RETAINER RING
(Superseded to 812000045)

$7.49

$

In Stock, Qty 5

0

4

Electrolux/AYP 192126

WHEEL DRIVER
(Superseded to 532192126)

$31.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 182466

RETAINER RING
(Superseded to 532182466)

$7.49

$

In Stock, Qty 7

0

6

Electrolux/AYP 187622

WHEEL LOBE
(Superseded to 532187622)

$37.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 194941

CLUTCH SLIDE
(Superseded to 532194941)

$44.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 179139

SPRING
(Superseded to 532179139)

$6.49

$

In Stock, Qty 9

0

9

Electrolux/AYP 189282

SQUARE KEY
(Superseded to 532189282)

$7.49

$

In Stock, only 1 left!

0

10

Electrolux/AYP 194940

AXLE LOBE

$7.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 174697

THRUST WASHER

$2.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 193506X479

STEERING YOKE
(Superseded to 193506X431)

$8.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 179148X479

STEERING BRACKET
(Superseded to 532184197)

$

$

Not available

14

Electrolux/AYP 17490508

SCREW 5/16-18 X .50
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 194943X008

PIVOT BRACKET
(Superseded to 532194943)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 194944X008

BELLCRANK
(Superseded to 532194944)

$

$

Not available

17

Electrolux/AYP 181847

BELLCRANK PIN
(Superseded to 532181847)

$12.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 17600406

SCREW 1/4-20 X .375
(Superseded to 817600406)

$6.49

$

In Stock, Qty 5

0

19

Electrolux/AYP 405077

STEERING LINK
(Superseded to 532405077)

$

$

Not available

20

Electrolux/AYP 700279

RETAINER
(Superseded to 532700279)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 85179

RETAINER
(Superseded to 532085179)

$7.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 193885

SPRING
(Superseded to 532193885)

$6.49

$

In Stock, only 2 left!

0

23

Electrolux/AYP 182015

LEVER PIN
(Superseded to 532182015)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 194939X008

PIVOT BRACKET
(Superseded to 532194939)

$6.49

$

Usually ships in 3-10 days

0
