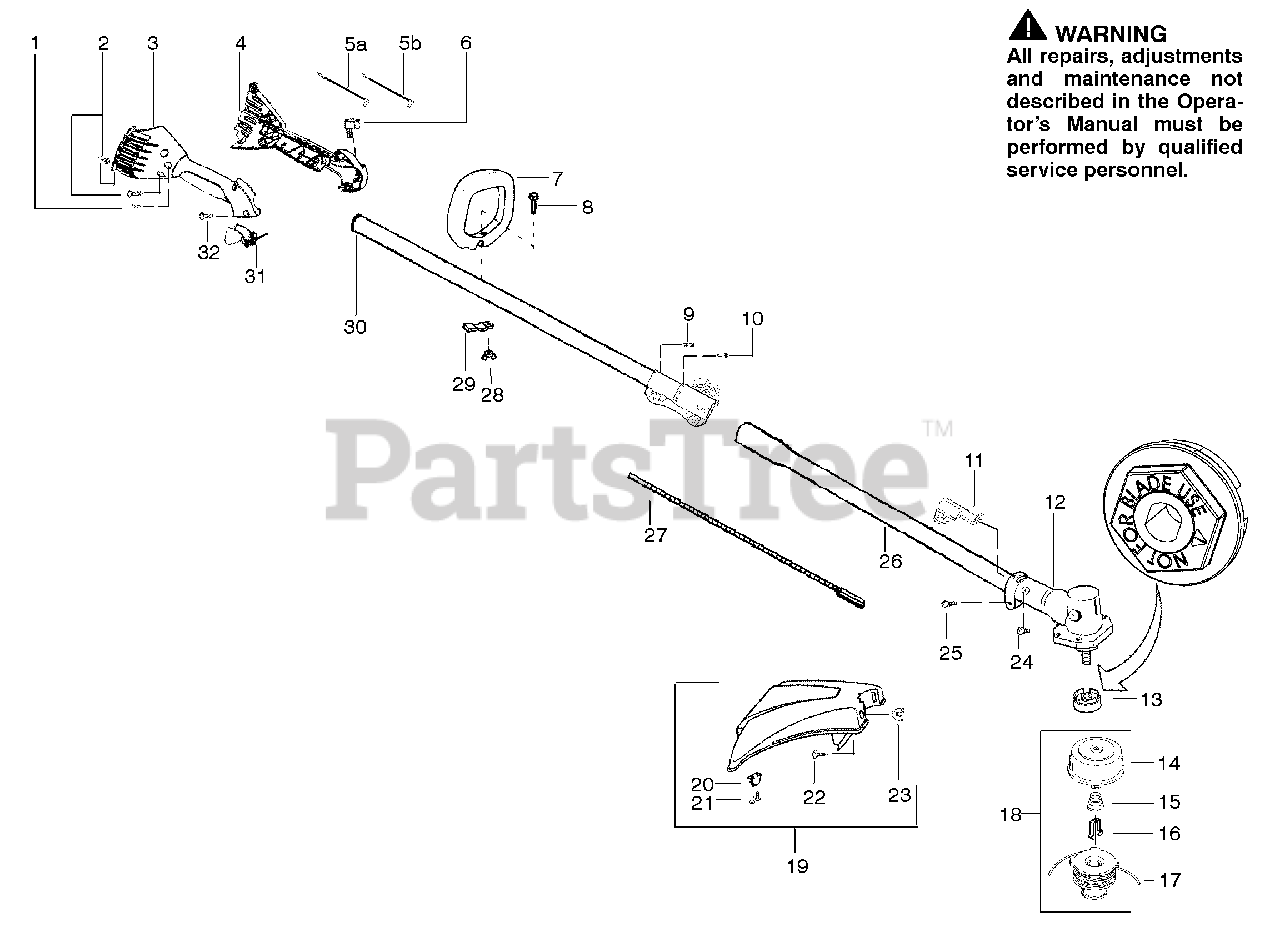

PP 135 - Poulan Pro String Trimmer Handle & Shaft Assembly Parts Diagram

String Trimmer

Handle & Shaft Assembly Parts Diagram

  • Title

1

Poulan 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

2

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

3

Poulan 530054837

Throttle hsg-right

$

$

Not available

4

Poulan 530071553

Kit-Left throttle hsg

$9.99

$

Usually ships in 3-10 days

0

5A

Poulan 530054943

Wire Assy-Front Wire

$

$

Not available

5B

Poulan 530055724

Wire Assy-Front Wire (Upper)

$

$

Not available

6

Poulan 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

7

Poulan 530055699

Assy-Handle

$11.99

$

Usually ships in 3-10 days

0

8

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 530016343

Screw-Align

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 530095812

Bracket-Shield

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 530071584

Kit-Gearbox

$

$

Not available

13

Poulan 530095814

Dust cup

$7.49

$

Usually ships in 3-10 days

0

14

Poulan 530095772

Assy-Hub/Arbor

$

$

Not available

15

Poulan 530053241

Spring-Return

$

$

Not available

16

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, Qty 7

0

17

Poulan 952711580

Accy-Wound Spool
(Superseded to 952711551)

$

$

Not available

18

Poulan 952711581

Accy-Cutting Head
(Superseded to 952711550)

$

$

Not available

19

Poulan 530069779

Kit-Shield Assy.

Note: (incl. 20-23)

$

$

Not available

20

Poulan 530052285

Limiter-Line

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

22

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

24

Poulan 530016224

Screw

$4.99

$

In Stock, Qty 5

0

25

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

26

Poulan 530096023

Assy-Lower Shaft

$21.99

$

Usually ships in 3-10 days

0

27

Poulan 530096183

Shaft-Flex (lower)

$

$

Not available

28

Poulan 530016118

Wingnut
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

29

Poulan 530088416

Clamp-Handle

$

$

Not available

30

Poulan 530071607

Kit-Upper Shaft

Note: (Incl. Flex and clamp)

$

$

Not available

31

Poulan 530054940

Lever-Throttle

$3.99

$

In Stock, Qty 10

0

32

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

Poulan 530163731

Operator Manual

Note: Not Shown

$

$

Not available

Poulan 530055350

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

Poulan 530057296

Decal-Upper Shaft

Note: Not Shown

$

$

Not available

Poulan 530057369

Decal-Start Inst.

Note: Not Shown

$

$

Not available

Poulan 530071717

Kit-Choke Lever

Note: Not Shown

$10.99

$

Usually ships in 3-10 days

0
