PP 136 - Poulan Pro String Trimmer Handle & Controls Parts Diagram

String Trimmer

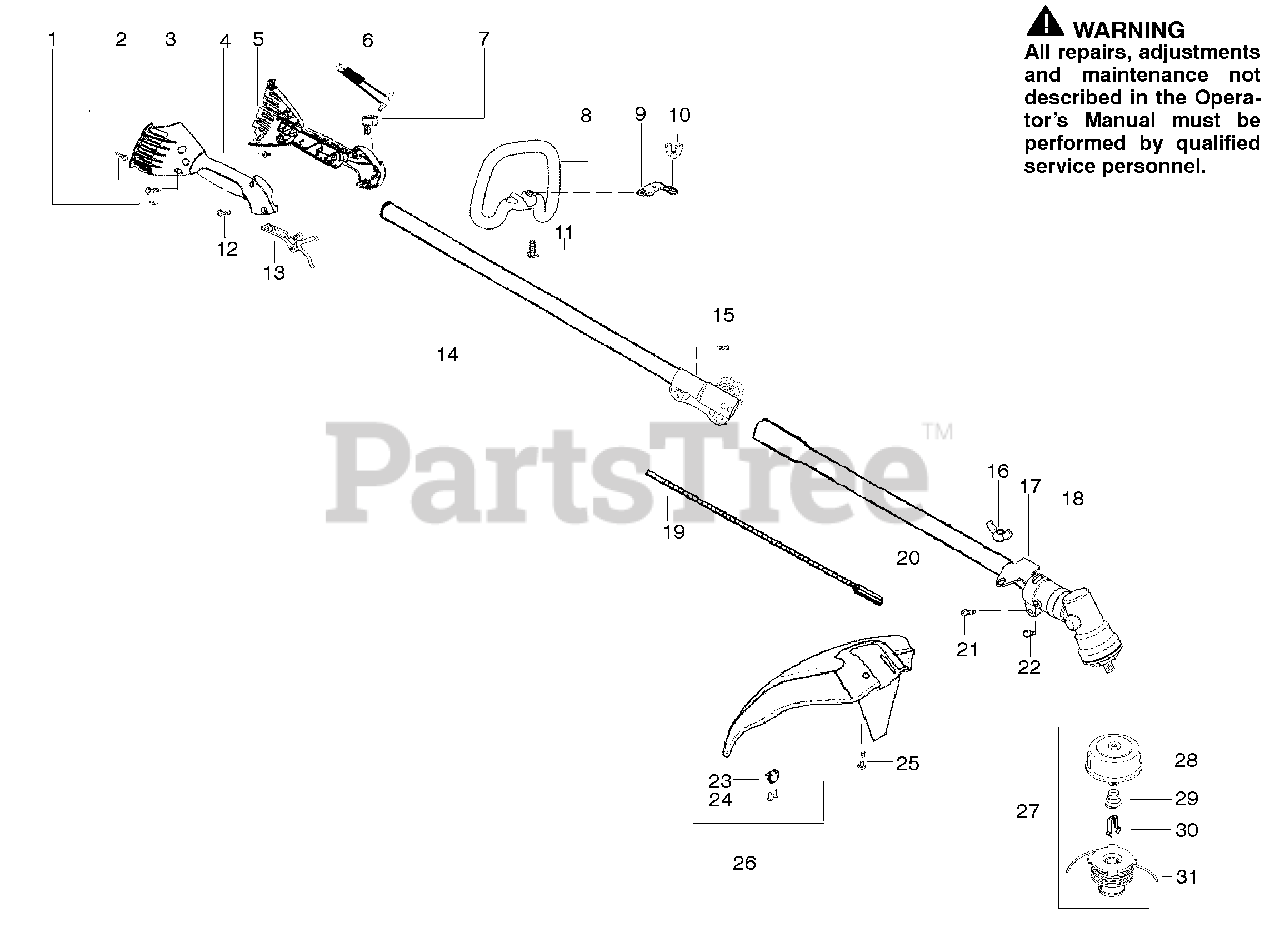

Handle & Controls Parts Diagram

  • Title

1

Poulan 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

2

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

3

Poulan 530057983

Hsg.-Throttle right

$

$

Not available

4

Poulan 530016326

Screw-Cable Retention

$

$

Not available

5

Poulan 530057984

Hsg.-Left throttle

$9.99

$

Usually ships in 3-10 days

0

6

Poulan 530058843

Assy-Wire

$8.99

$

Usually ships in 3-10 days

0

7

Poulan 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

8

Poulan 530056251

Handle-Assist
(Superseded to 530059101)

$9.99

$

Usually ships in 3-10 days

0

9

Poulan 530059185

Clamp-Handle

$6.49

$

In Stock, only 3 left!

0

10

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

13

Poulan 530058759

Lever-Throttle
(Superseded to 545017701)

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 530071791

Assy-Upper Shaft
(Superseded to 575260201)

Note: (Incl. flex and clamp)

$44.99

$

In Stock, only 3 left!

0

15

Poulan 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530057554

Bracket-Shield

$6.49

$

In Stock, Qty 11

0

18

Poulan 530096099

Gearbox

$53.99

$

In Stock, only 1 left!

0

19

Poulan 530096218

Shaft-Flex (lower)
(Superseded to 545173003)

$11.99

$

In Stock, only 1 left!

0

20

Poulan 530071789

Assy-Lower Shaft

$27.99

$

Usually ships in 3-10 days

0

21

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

22

Poulan 530016224

Screw

$4.99

$

In Stock, Qty 5

0

23

Poulan 530052285

Limiter-Line

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

25

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 530071765

Kit-Shield Assy.

Note: (incl. 23-24)

$

$

Not available

27

Poulan 952711581

Accy-Cutting Head
(Superseded to 952711550)

Note: (incl. 28-31)

$

$

Not available

28

Poulan 530095772

Assy-Hub/Arbor

$

$

Not available

29

Poulan 530053241

Spring-Return

$

$

Not available

30

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, Qty 8

0

31

Poulan 952711580

Accy-Wound Spool
(Superseded to 952711551)

$

$

Not available

31

Poulan 545123424

Operator Manual

Note: Not Shown

$

$

Not available

31

Poulan 530055350

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

31

Poulan 530056221

Decal-Upper Shaft

Note: Not Shown

$

$

Not available

31

Poulan 530057369

Decal-Start Inst.

Note: Not Shown

$

$

Not available
