PP-1400 - Echo Pole Saw (Type 1E) Driveshaft, Handle, Harness Parts Diagram

Pole Saw (Type 1E)

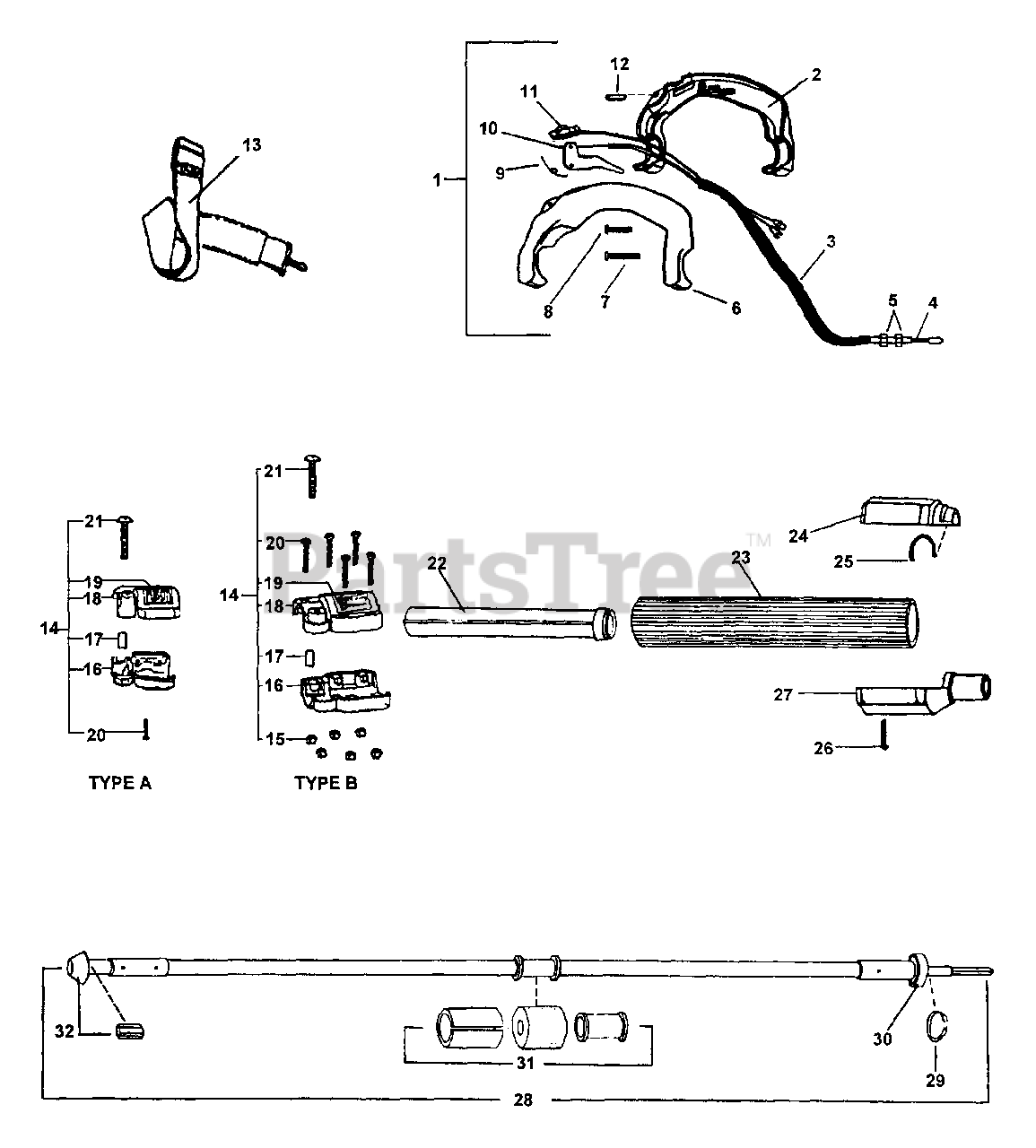

Driveshaft, Handle, Harness Parts Diagram

  • Title

1

Echo 35150122560

HANDLE ASSY - REAR

Note: INCLUDES ITEMS 2 - 12

$182.99

$

Usually ships in 2-4 days

0

2

Echo 35112922360

HANDLE, REAR - RIGHT
(Superseded to P021004860)

$

$

Not available

3

Echo 17801622360

TUBE, PROTECTIVE - CORRUGATED

$2.49

$

Usually ships in 2-4 days

0

4

Echo 17810022060

CABLE, THROTTLE

Note: Includes ITEM 5

$48.99

$

Usually ships in 2-4 days

0

5

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

6

Echo 35110122360

HANDLE, REAR - LEFT
(Superseded to P021004860)

$

$

Not available

7

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, only 4 left!

0

8

Echo 90005300300

SCREW - 10-24 X 7/8"

$1.49

$

Usually ships in 2-4 days

0

9

Echo 17804322360

SPRING, TRIGGER

$2.49

$

In Stock, only 2 left!

0

10

Echo 17801005631

TRIGGER, THROTTLE
(Superseded to C450000060)

$1.99

$

In Stock, Qty 5

0

11

Echo 16340046830

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$10.99

$

In Stock, only 2 left!

0

12

Echo 88996022660

PIN - LOCATING

$0.99

$

In Stock, Qty 19

0

13

Echo 30100022060

SHOULDER STRAP ASSY

$35.99

$

In Stock, only 2 left!

0

14

Echo 61029522260

COLLAR ASSY

Note: Includes ITEMS 15-21

$58.99

$

Usually ships in 2-4 days

0

15

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 8

0

16

Echo 61028222360

COLLAR, MAIN PIPE - LOWER

$33.99

$

In Stock, only 2 left!

0

17

Echo 61061122560

SLEEVE, HEAD LOCATING
(Superseded to Discontinued)

$

$

Not available

18

Echo 61028222460

COLLAR, MAIN PIPE - UPPER

$19.99

$

In Stock, only 2 left!

0

19

Echo 89016022460

LABEL - CAUTION

$

$

Currently unavailable

20

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, only 4 left!

0

21

Echo 90006500300

SCREW

$0.99

$

Usually ships in 2-4 days

0

22

Echo 60520622060

PIPE, MAIN

$52.99

$

Usually ships in 2-4 days

0

23

Echo 61021022060

PIPE, MAIN

$173.99

$

Usually ships in 2-4 days

0

24

Echo 61081022360

LOWER HSNG ADAPT (TOP)
(Superseded to P021003540)

$14.99

$

In Stock, only 2 left!

0

25

Echo 10491022460

CUSHION

$2.49

$

In Stock, only 2 left!

0

26

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, only 4 left!

0

27

Echo 61024822360

ADAPTER - LOWER
(Superseded to C510000050)

$30.99

$

In Stock, only 2 left!

0

28

Echo 61000622560

DRIVESHAFT ASSY

Note: INCLUDES ITEMS 29 - 32

$210.99

$

Usually ships in 2-4 days

0

29

Echo 10022922460

RING, RETAINING

$0.99

$

In Stock, only 1 left!

0

30

Echo 90080206002

BEARING, BALL - 6002

$19.99

$

In Stock, only 2 left!

0

31

Echo 43330722560

DRIVESHAFT GUIDE ASSY

$48.99

$

Usually ships in 2-4 days

0

32

Echo 61029822360

ADAPTER, DRIVESHAFT - UPPER

$3.99

$

Usually ships in 2-4 days

0
