PP 1438 B - Poulan Lawn Tractor (1991)

Lawn Tractor

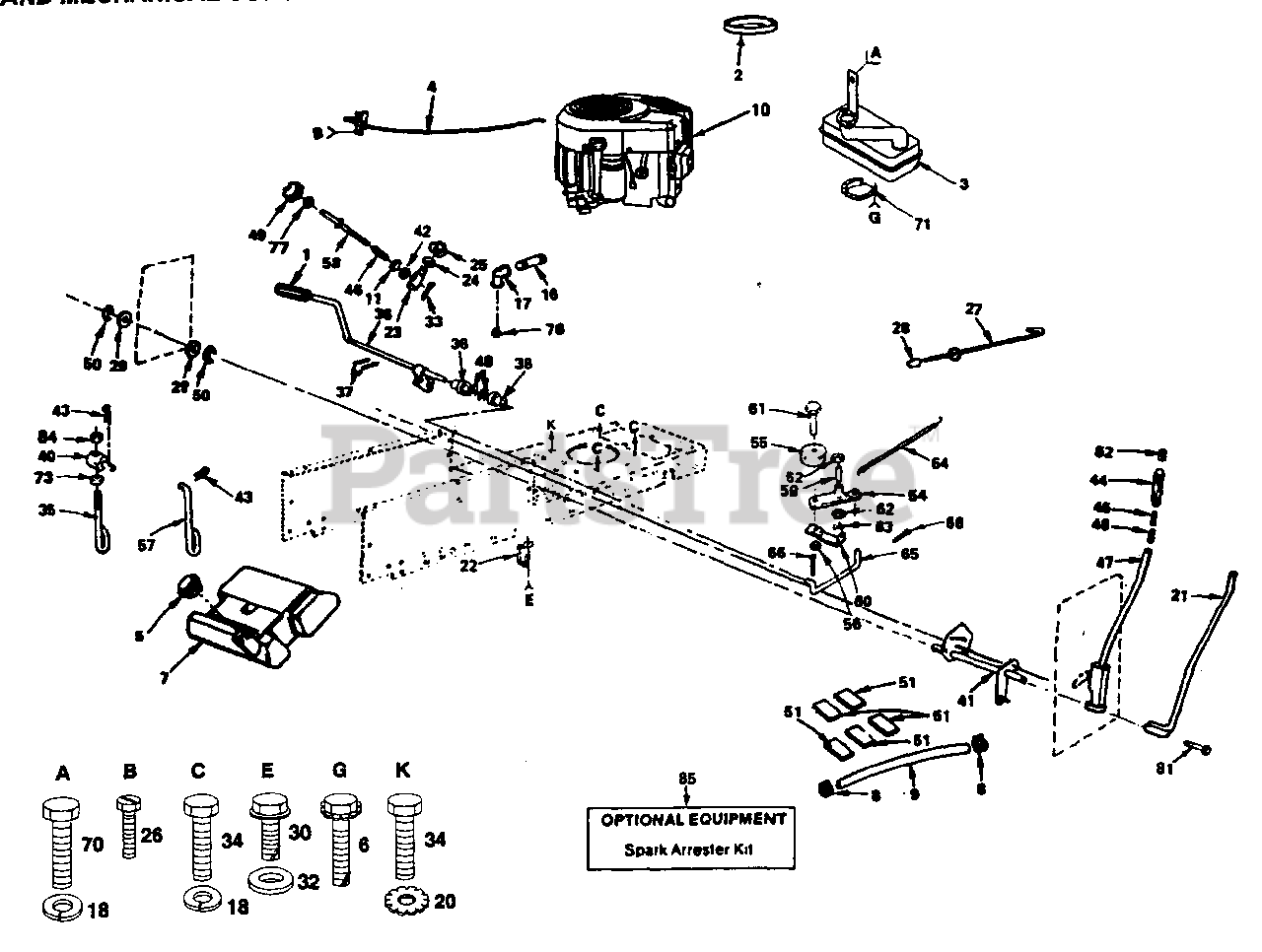

PP 1438 B - Poulan Lawn Tractor (1991) > Parts Diagrams (8) > POWER AND MECHANICAL CONTROLS GROUP

  • Title
532124872

1

Cover, Pedal

Part# 532124872 (Superseded to 532008883)

OEM Warranty Repair Part for Electrolux/AYP

Not available

532127073

2

Strip, Foam

Part# 532127073

OEM Warranty Repair Part for Electrolux/AYP

Not available

532124196

3

Muffler

Part# 532124196

OEM Warranty Repair Part for Electrolux/AYP

Not available

532121275

4

Control, Throttle

Part# 532121275

OEM Warranty Repair Part for Electrolux/AYP

Not available

532123549

5

Cap, Fuel

Part# 532123549 (Superseded to 532158990)

OEM Warranty Repair Part for Electrolux/AYP

Not available

817030808

6

Screw, Spider Lock, Hex Head #8 x 1/2 AB

Part# 817030808

OEM Warranty Repair Part for Electrolux/AYP

Not available

532106020

7

Tank, Fuel

Part# 532106020

OEM Warranty Repair Part for Electrolux/AYP

Not available

532123487

8

Clamp, Hose

Part# 532123487

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

532124923

9

Line, Fuel

Part# 532124923 (Superseded to 532007833)

OEM Warranty Repair Part for Electrolux/AYP

Not available

532127522

10

Engine, 14 HP Kohler, Model No. CV145-1436

Part# 532127522

OEM Warranty Repair Part for Electrolux/AYP

Not available

819131016

11

Washer 13/32 x 5/8 x 16 Gauge

Part# 819131016

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

813280336

16

Pipe Nipple, Standard

Part# 813280336

OEM Warranty Repair Part for Electrolux/AYP

Not available

813200300

17

90ø Elbow 3/8 NPT

Part# 813200300

OEM Warranty Repair Part for Electrolux/AYP

Not available

810040500

18

Washer, Lock Heavy Helical Spring

Part# 810040500

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

811050500

20

Washer, Lock External Tooth

Part# 811050500 (Superseded to 810040500)

OEM Warranty Repair Part for Electrolux/AYP

Not available

532121006

21

Rod Assembly, Lever

Part# 532121006

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $22.35

532104777

22

Retainer, Belt, Chassis, L.H.

Part# 532104777 (Superseded to 532136715)

OEM Warranty Repair Part for Electrolux/AYP

Not available

532110810

23

Trunnion, Stop, Depth

Part# 532110810

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $15.64

819151216

24

Washer 15/32 x 3/4 x 16 Gauge

Part# 819151216

OEM Warranty Repair Part for Electrolux/AYP

Not available

812000037

25

Ring, Klip

Part# 812000037

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

817720410

26

Screw, Hex Thread Cut 1/4-20 x 5/8

Part# 817720410 (Superseded to 874780410)

OEM Warranty Repair Part for Electrolux/AYP

Not available

532125637

27

Rod, Brake, Park

Part# 532125637 (Superseded to 532133261)

OEM Warranty Repair Part for Electrolux/AYP

Not available

532071673

28

Cap, Plunger

Part# 532071673

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

819292016

29

Washer 29/32 x 1-1/4 x 16 Gauge

Part# 819292016

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

817490612

30

Screw, Hex Washer Thread Rolling 3/8-16 x 3/4

Part# 817490612 (Superseded to 874780612)

OEM Warranty Repair Part for Electrolux/AYP

Not available

819131316

32

Washer 13/32 x 1-3/16 x 12 Gauge

Part# 819131316

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

876020308

33

Pin, Cotter 3/32 x 1/2

Part# 876020308 (Superseded to 532003145)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $2.23

M010208025

34

Screw M8 x 1.25 x 25 mm

Part# M010208025

OEM Warranty Repair Part for Electrolux/AYP

Not available

532110448

35

Lift, Link, Adjustable

Part# 532110448

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $8.93

532122424

36

Shaft, Pedal, Foot

Part# 532122424

OEM Warranty Repair Part for Electrolux/AYP

Not available

532124963

37

Roll Pin 3/16 x 1

Part# 532124963 (Superseded to 532002882)

OEM Warranty Repair Part for Electrolux/AYP

Not available

532120183

38

Bearing, Nylon

Part# 532120183

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

532110447

40

Trunnion, Lift

Part# 532110447 (Superseded to 532132793)

OEM Warranty Repair Part for Electrolux/AYP

Not available

532121000

41

Shaft Assembly, Lift

Part# 532121000

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $130.80

532110807

42

Nut, Hex, Special

Part# 532110807

OEM Warranty Repair Part for Electrolux/AYP

Not available

532124670

43

Retainer, Spring

Part# 532124670 (Superseded to 532085902)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.76

532109413

44

Grip, Handle

Part# 532109413 (Superseded to 532125631)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.34

532122364

45

Plunger, Lever Lift

Part# 532122364 (Superseded to 532125925)

OEM Warranty Repair Part for Electrolux/AYP

Not available

532124874

46

Spring

Part# 532124874 (Superseded to 532002876)

OEM Warranty Repair Part for Electrolux/AYP

Not available

532121002

47

Lever Assembly, Hand Kit

Part# 532121002 (Superseded to 532123096)

OEM Warranty Repair Part for Electrolux/AYP

Not available

819211616

48

Washer 21/32 x 1 x 16 Gauge

Part# 819211616

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

532121891

49

Handle, Adjust, Lift

Part# 532121891

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $4.46

812000022

50

E-Ring

Part# 812000022

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

532106082

51

Pad, Spacer

Part# 532106082

OEM Warranty Repair Part for Electrolux/AYP

Not available

532124526

52

Button, Plunger

Part# 532124526 (Superseded to 532125925)

OEM Warranty Repair Part for Electrolux/AYP

Not available

532123789

54

Arm Assembly, Idler

Part# 532123789

OEM Warranty Repair Part for Electrolux/AYP

Not available

532123766

55

Pulley, Idler

Part# 532123766 (Superseded to 532127783)

OEM Warranty Repair Part for Electrolux/AYP

Not available

873680600

56

Nut, Crownlock 3/8-16

Part# 873680600

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.75

532110029

57

Link, Lift

Part# 532110029

OEM Warranty Repair Part for Electrolux/AYP

Not available

532110729

58

Rod, Adjust, Lift

Part# 532110729

OEM Warranty Repair Part for Electrolux/AYP

Not available

532105706

59

Bearing

Part# 532105706

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

532123205

60

Retainer, Belt

Part# 532123205

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

874760624

61

Bolt, Hex 3/8-16 x 1-1/2

Part# 874760624 (Superseded to 874780624)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

532110812

62

Washer, Hardened

Part# 532110812

OEM Warranty Repair Part for Electrolux/AYP

Not available

812000039

63

Ring, Clip

Part# 812000039

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

532105709

64

Spring, Return, Clutch

Part# 532105709

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.93

532105710

65

Link, Clutch

Part# 532105710 (Superseded to 532199652)

OEM Warranty Repair Part for Electrolux/AYP

Not available

876020412

66

Pin, Cotter 1/8 x 3/4

Part# 876020412

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

874760508

70

Bolt, Hex Head 5/16-18 UNC x 1/2

Part# 874760508

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $4.46

532101326

71

Deflector, Muffler

Part# 532101326

OEM Warranty Repair Part for Electrolux/AYP

Not available

873360700

73

Nut, Hex, Jam 7/16-20

Part# 873360700 (Superseded to 873610700)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $6.70

873350600

77

Nut, Hex, Jam 3/8-16

Part# 873350600 (Superseded to 873220600)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

874780624

81

Bolt, Hex 3/8-16 x 1-1/2

Part# 874780624 (Superseded to 874930624)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

873710700

84

Nut, Crownlock 7/16-20

Part# 873710700 (Superseded to 873610700)

OEM Warranty Repair Part for Electrolux/AYP

Not available

532122083

85

Spark Arrester Kit

Part# 532122083

OEM Warranty Repair Part for Electrolux/AYP

Not available
