PP 1438 B - Poulan Pro Lawn Tractor DRIVE Parts Diagram

Lawn Tractor

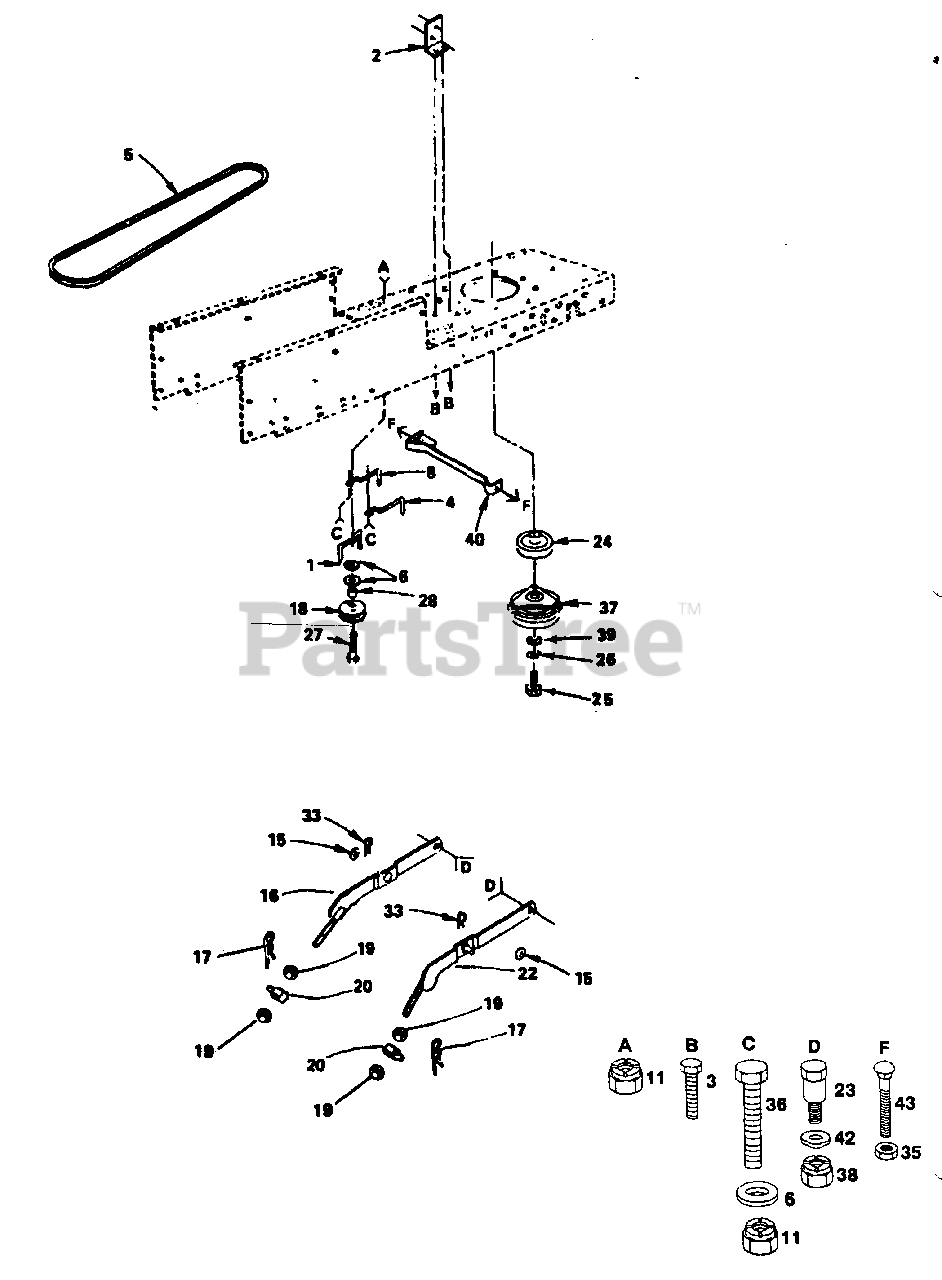

DRIVE Parts Diagram

  • Title

1

Poulan 532109070

Retainer, Belt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 532108236

Bracket, Switch (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

3

Poulan 817021008

Screw, Tapping, Hex Head 10-24 x 1/2 (AYP part number)

$4.99

$

In Stock, Qty 20+

0

4

Poulan 532105730

Keeper, Belt, Engine (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 532125907

V-Belt, Drive (AYP part number)

$36.99

$

In Stock, Qty 20+

0

6

Poulan 819131312

Washer 13/32 x 13/16 x 12Gauge (AYP part number)
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 532121218

Keeper, Belt, Engine (AYP part number)

$

$

Not available

11

Poulan 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

15

Poulan 819171516

Washer 17/32 x 15/16 x 16 Gauge (AYP part number)
(Superseded to 734117801)

$

$

Not available

16

Poulan 532121599

Arm Assembly, Suspension, L.H. (AYP part number)

$

$

Not available

17

Poulan 532124960

Retainer, Spring (AYP part number)
(Superseded to 532009135)

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 532123674

Idler, Flat (AYP part number)

$31.99

$

In Stock, only 2 left!

0

19

Poulan 873220800

Nut, Hex 1/2-13 (AYP part number)
(Superseded to 873350800)

$

$

Not available

20

Poulan 532106308

Trunnion, Lift, Lower (AYP part number)
(Superseded to 532130171)

$

$

Not available

22

Poulan 532121598

Arm Assembly, Suspension, R.H. (AYP part number)

$

$

Not available

23

Poulan 532105848

Bolt, Shoulder 3/8-16 (AYP part number)

$

$

Not available

24

Poulan 532109841

Pulley, Engine (AYP part number)
(Superseded to 532136905)

$42.99

$

Usually ships in 3-10 days

0

25

Poulan 532125120

Bolt, Hex M10-1.5 x 110 (AYP part number)
(Superseded to M747810110)

$

$

Not available

26

Poulan 810040700

Washer, Lock 7/16 (AYP part number)
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

27

Poulan 874760644

Bolt, Hex 3/8-16 x 2-3/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

28

Poulan 532124965

Spacer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

33

Poulan 532124961

Spring, Retainer (AYP part number)
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 873680500

Locknut 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

36

Poulan 874760616

Bolt, Hex 3/8-16 x 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532108218

Clutch, Electric (AYP part number)
(Superseded to 532142600)

$

$

Not available

38

Poulan 873980600

Nut, Centerlock, Flange 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 532126197

Washer 1-1/2 x 15/32 x 1/4 (AYP part number)

$8.99

$

In Stock, Qty 20+

0

40

Poulan 532109169

Locater, Clutch (AYP part number)
(Superseded to 532109172)

$

$

Not available

42

Poulan 532110739

Washer, Spring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

43

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0
