PP 14H44 A - Poulan Lawn Tractor (1991) AGRI-FAB TRANSAXLE MODEL NUMBER 121431X Parts Diagram

Lawn Tractor

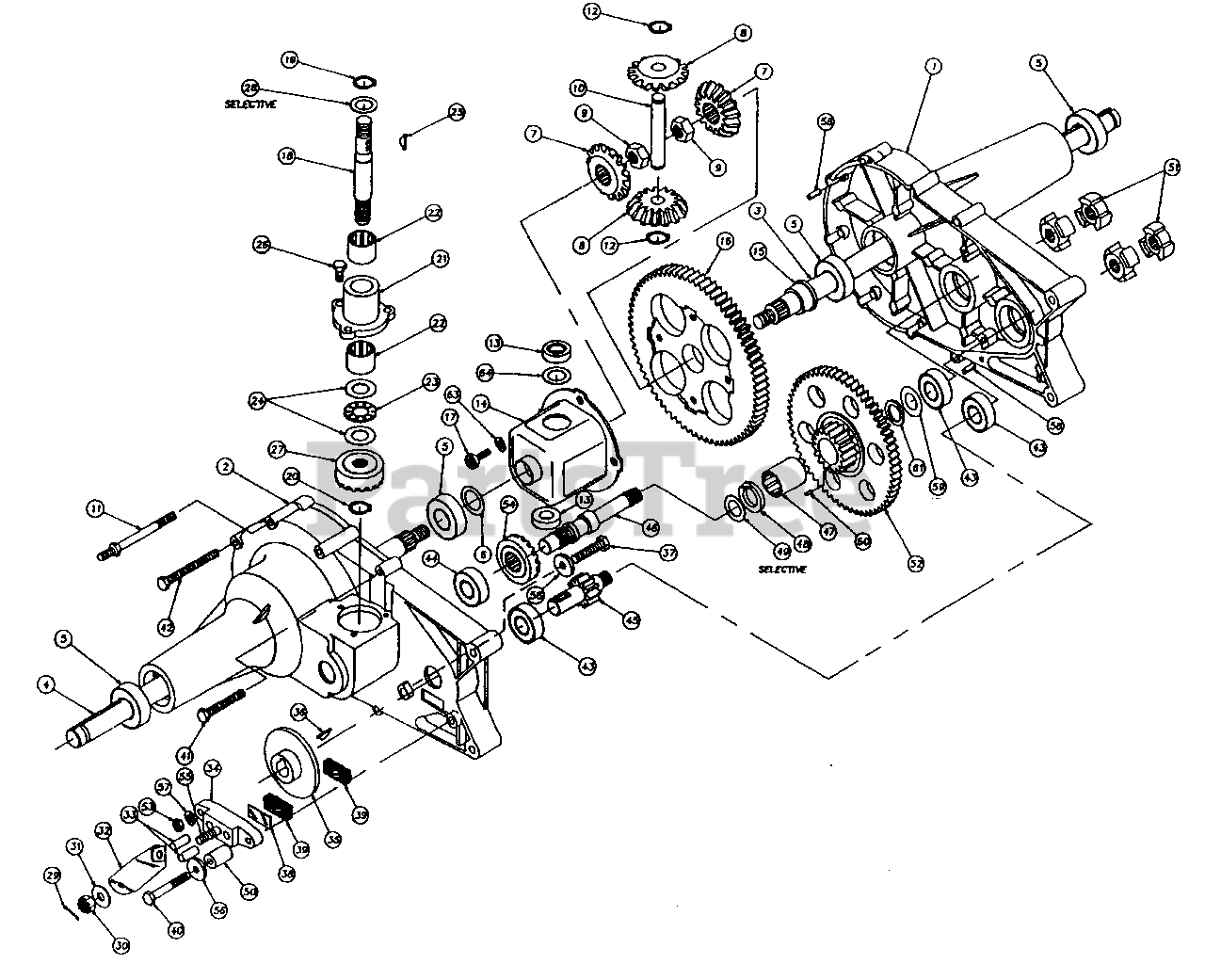

AGRI-FAB TRANSAXLE MODEL NUMBER 121431X Parts Diagram

  • Title

1

Electrolux/AYP 122614X

Housing, Half L.H.
(Superseded to 532122614)

$

$

Not available

2

Electrolux/AYP 122615X

Housing, Half R.H.
(Superseded to 532122615)

$

$

Not available

3

Electrolux/AYP 122616X

Axle L.H.
(Superseded to 532122616)

$

$

Not available

4

Electrolux/AYP 122620X

Axle R.H.
(Superseded to 532122620)

$

$

Not available

5

Electrolux/AYP 122621X

Bearing, Ball
(Superseded to 532122621)

$

$

Not available

6

Electrolux/AYP 122622X

Washer, Flat 3/4 x 1-1/8 x .030
(Superseded to 532122622)

$

$

Not available

7

Electrolux/AYP 122623X

Gear, Miter
(Superseded to 532122623)

$

$

Not available

8

Electrolux/AYP 122624X

Gear, Miter
(Superseded to 532122624)

$

$

Not available

9

Electrolux/AYP 122625X

Nut, Hex Jam w/Patch 1/2-20
(Superseded to 532122625)

$

$

Not available

10

Electrolux/AYP 122626X

Shaft, Cross
(Superseded to 532142893)

$

$

Not available

11

Electrolux/AYP 122688X

Screw, Stud
(Superseded to 532122688)

$

$

Not available

12

Electrolux/AYP 122629X

Snap, Ring
(Superseded to 532122629)

$2.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 122631X

Bearing, Thrust
(Superseded to 532122631)

$

$

Not available

14

Electrolux/AYP 122633X

Housing Assembly, Differential
(Superseded to 532122633)

$182.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 122634X

Bearing, Flange
(Superseded to 532122634)

$

$

Not available

16

Electrolux/AYP 122640X

Gear, Differential 72 Tooth
(Superseded to 532122640)

$

$

Not available

17

Electrolux/AYP 122641X

Bolt, Torx Head 1/4-28 x 5/8"
(Superseded to 532122641)

$

$

Not available

18

Electrolux/AYP 122642X

Shaft, Input
(Superseded to 532155892)

$363.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 122643X

Snap, Ring
(Superseded to 583041601)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 122644X

Retaining Ring 7/16"
(Superseded to 532122644)

$

$

Not available

21

Electrolux/AYP 122645X

Housing, Input Bearing
(Superseded to 532155892)

$363.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 122646X

Bearing, Needle
(Superseded to 532122646)

$

$

Not available

23

Electrolux/AYP 122647X

Bearing, Thrust
(Superseded to 532122647)

$

$

Not available

24

Electrolux/AYP 122648X

Washer, Flat 5/8 x 1-1/8 x .030
(Superseded to 532122648)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 122649X

Key, Hi-Pro 3/32 x 5/8
(Superseded to 532122649)

$

$

Not available

26

Electrolux/AYP 122650X

Screw, Hex W/Patch 1/4-20 x 3/4
(Superseded to 532122650)

$

$

Not available

27

Electrolux/AYP 122651X

Gear, Input Pinion 17 Tooth
(Superseded to 532155892)

$363.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 123061X

Washer, Flat .62 x 1 x .05
(Superseded to 532170404)

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 122678X

Washer, Flat .62 x 1.125 x .060
(Superseded to 532122678)

Note: Not Shown.

$

$

Not available

Electrolux/AYP 122654X

Washer, Flat .62 x 1 x .040
(Superseded to 532122654)

Note: Not Shown.

$

$

Not available

29

Electrolux/AYP 122656X

Pin, Cotter
(Superseded to 144608)

$

$

Not available

30

Electrolux/AYP 122653X

Nut, Castle 5/16-24
(Superseded to 532122653)

$

$

Not available

31

Electrolux/AYP 122659X

Washer, Flat .343 x .88 x .062
(Superseded to 142884)

$5.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 122660X

Arm, Brake Actuator
(Superseded to 532122660)

$12.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 122662X

Pin, Brake Actuating
(Superseded to 532142887)

$6.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 122663X

Brake, Yoke
(Superseded to 532122663)

$

$

Not available

35

Electrolux/AYP 122664X

Disc, Brake
(Superseded to 532142890)

$28.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 123065X

Key, Hi-Pro 3/16 x 5/8"
(Superseded to 532123065)

$

$

Not available

37

Electrolux/AYP 122666X

Screw, Hex 1/4-20 x 1.50
(Superseded to 532122666)

$

$

Not available

38

Electrolux/AYP 122667X

Plate, Puck
(Superseded to 532122667)

$

$

Not available

39

Electrolux/AYP 122668X

Puck, Brake

$

$

Not available

40

Electrolux/AYP 123066X

Screw, Hex w/Patch 1/4-20 x 2.00
(Superseded to 532123066)

$

$

Not available

41

Electrolux/AYP 122670X

Screw, Hex Self-Tap 1/4-20 x 2.00
(Superseded to 532122670)

$

$

Not available

42

Electrolux/AYP 122671X

Screw, Hex Self-Tap 1/4-20 x 3.00
(Superseded to 532122671)

$

$

Not available

43

Electrolux/AYP 126982X

Bearing, Ball

$

$

Not available

44

Electrolux/AYP 122673X

Bearing, Ball
(Superseded to 532122673)

$

$

Not available

45

Electrolux/AYP 122674X

Shaft, Pinion W/11 Tooth Gear
(Superseded to 532122674)

$

$

Not available

46

Electrolux/AYP 122675X

Shaft, Drive
(Superseded to 532122675)

$

$

Not available

47

Electrolux/AYP 123059X

Bearing, Needle
(Superseded to 532123059)

$

$

Not available

48

Electrolux/AYP 123060X

Bronze Thrust Brg. 5/8 x 1-1/4 x 7/64
(Superseded to 532123060)

$

$

Not available

49

Electrolux/AYP 122654X

Washer, Flat .62 x 1.0 x .040
(Superseded to 532122654)

$

$

Not available

Electrolux/AYP 123061X

Washer, Flat .62 x 1.0 x .050
(Superseded to 532170404)

Note: Not Shown.

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 122689X

Spacer
(Superseded to 422988)

$

$

Not available

51

Electrolux/AYP 121839X

Coupling
(Superseded to 532121839)

$18.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 126975X

Gear, 60 and 17 Tooth
(Superseded to 532126975)

$

$

Not available

53

Electrolux/AYP 122682X

Nut, Hex 1/4-20
(Superseded to 532122682)

$

$

Not available

54

Electrolux/AYP 122683X

Gear, Drive Pinion 17 Tooth
(Superseded to 532122683)

$

$

Not available

55

Electrolux/AYP 122684X

Bolt, Square Head
(Superseded to 532122684)

$

$

Not available

56

Electrolux/AYP 122685X

Washer 15/16 x .265 x .125
(Superseded to 532122685)

$

$

Not available

57

Electrolux/AYP 122686X

Washer, Spring Lock 1/4"
(Superseded to 126977X)

$

$

Not available

58

Electrolux/AYP 122687X

Pin, Roll 3/16" x 1/2"
(Superseded to 532122687)

$

$

Not available

59

Electrolux/AYP 122652X

Washer, Flat .62 x 1.0 x .030
(Superseded to 532122652)

$

$

Not available

60

Electrolux/AYP 123062X

Pin, Dowel 3/32 x 1/4
(Superseded to 532123062)

$

$

Not available

61

Electrolux/AYP 123063X

Seal, Grease
(Superseded to 532123063)

$

$

Not available

Electrolux/AYP 121431X

Transaxle Assembly Complete
(Superseded to 532121431)

Note: Not Shown.

$

$

Not available
