PP 155H42 (960420182-00) - Poulan Pro Lawn Tractor (2015-08) DRIVE Parts Diagram

Lawn Tractor

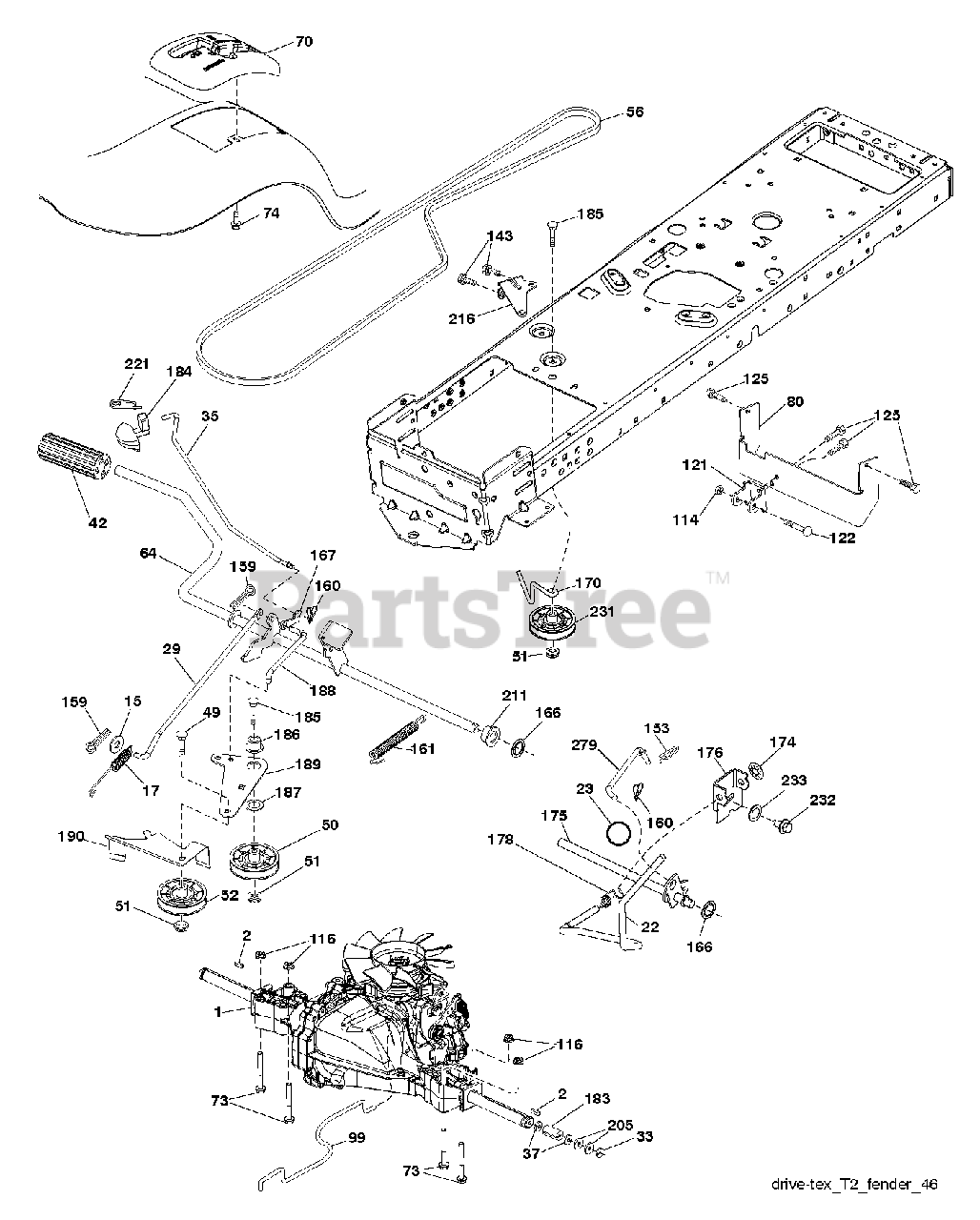

DRIVE Parts Diagram

  • Title

1

Poulan 000000000

Note: Transaxle Hydro Gear T2-CDBE-5X1A-18C1 (581115602)

$

$

Not available

2

Poulan 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

15

Poulan 819131316

WASHER

Note: LEFT

$4.99

$

In Stock, Qty 9

0

17

Poulan 532197296

SPRING.BRAKE.HG3000/3500

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 532197660

ROD.SHIFT.FENDER.TLT.2006

$182.99

$

Usually ships in 3-10 days

0

23

Poulan 532106933

KNOB T (1/2-HOLE)

$7.49

$

In Stock, only 4 left!

0

29

Poulan 581506401

ROD.BRAKE.T2.TEX

$6.49

$

Usually ships in 3-10 days

0

33

Poulan 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

35

Poulan 532401031

ROD.CNTRL.PARK.PREDATOR.LT.TEX

$18.99

$

Usually ships in 3-10 days

0

37

Poulan 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

42

Poulan 532124872

(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

49

Poulan 872110614

BOLT
(Superseded to 596136201)

$3.99

$

In Stock, Qty 8

0

50

Poulan 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Poulan 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Poulan 581270501

BELT.GROUND.DRIVE.T2-HP.CE

$42.99

$

In Stock, Qty 6

0

64

Poulan 532196200

SHAFT.ASM.PEDAL.BRAKE.

$34.99

$

Usually ships in 3-10 days

0

70

Poulan 532411329

CONSOLE.SHIFT.STL.HYD.BLACK

$17.99

$

Usually ships in 3-10 days

0

73

Poulan 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

74

Poulan 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

80

Poulan 581550701

STRAP.TORQUE.T2

$18.99

$

Usually ships in 3-10 days

0

99

Poulan 532408418

ROD.ASM.BYPASS.SPRING.T2.FS

$9.99

$

Usually ships in 3-10 days

0

114

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

116

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

121

Poulan 532175611

BRACKET STRAP TORQUE

$4.99

$

Usually ships in 3-10 days

0

122

Poulan 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

125

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

143

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

153

Poulan 532124788

(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

159

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Poulan 532169484

RETAINER CLIP
(Superseded to 596029401)

$3.99

$

In Stock, Qty 14

0

161

Poulan 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

166

Poulan 532429164

NUT.PUSH.625

$6.49

$

In Stock, Qty 6

0

167

Poulan 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Poulan 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

Usually ships in 3-10 days

0

174

Poulan 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Poulan 532408539

SHAFT.ASM.SHFT.T2.TLT

$24.99

$

In Stock, only 1 left!

0

176

Poulan 532196214

ARM.CLEVIS.ROD.SHIFT

$7.49

$

Usually ships in 3-10 days

0

178

Poulan 532197456

SPRING.SHIFT.GT2006

$6.49

$

In Stock, only 2 left!

0

183

Poulan 532156972

SPACER, AXLE PVST

$

$

Not available

184

Poulan 532411484

Parking Brake Handle

$67.99

$

Usually ships in 3-10 days

0

185

Poulan 872110622

BOLT

$3.99

$

In Stock, only 3 left!

0

186

Poulan 532194321

SPACER.RETAINER

$7.49

$

In Stock, only 1 left!

0

187

Poulan 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$3.99

$

In Stock, Qty 18

0

188

Poulan 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Poulan 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Poulan 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, Qty 19

0

205

Poulan 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

211

Poulan 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.49

$

Usually ships in 3-10 days

0

216

Poulan 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.49

$

In Stock, only 2 left!

0

221

Poulan 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

231

Poulan 532407287

IDLER.V-GROOVE.1.688.OFFSET

$18.99

$

In Stock, Qty 20+

0

232

Poulan 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

233

Poulan 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0

279

Poulan 532424155

LINK.SHIFT.T2

$15.99

$

Usually ships in 3-10 days

0
