PP 15H42K B - Poulan Lawn Tractor (1995) LIFT Parts Diagram

Lawn Tractor

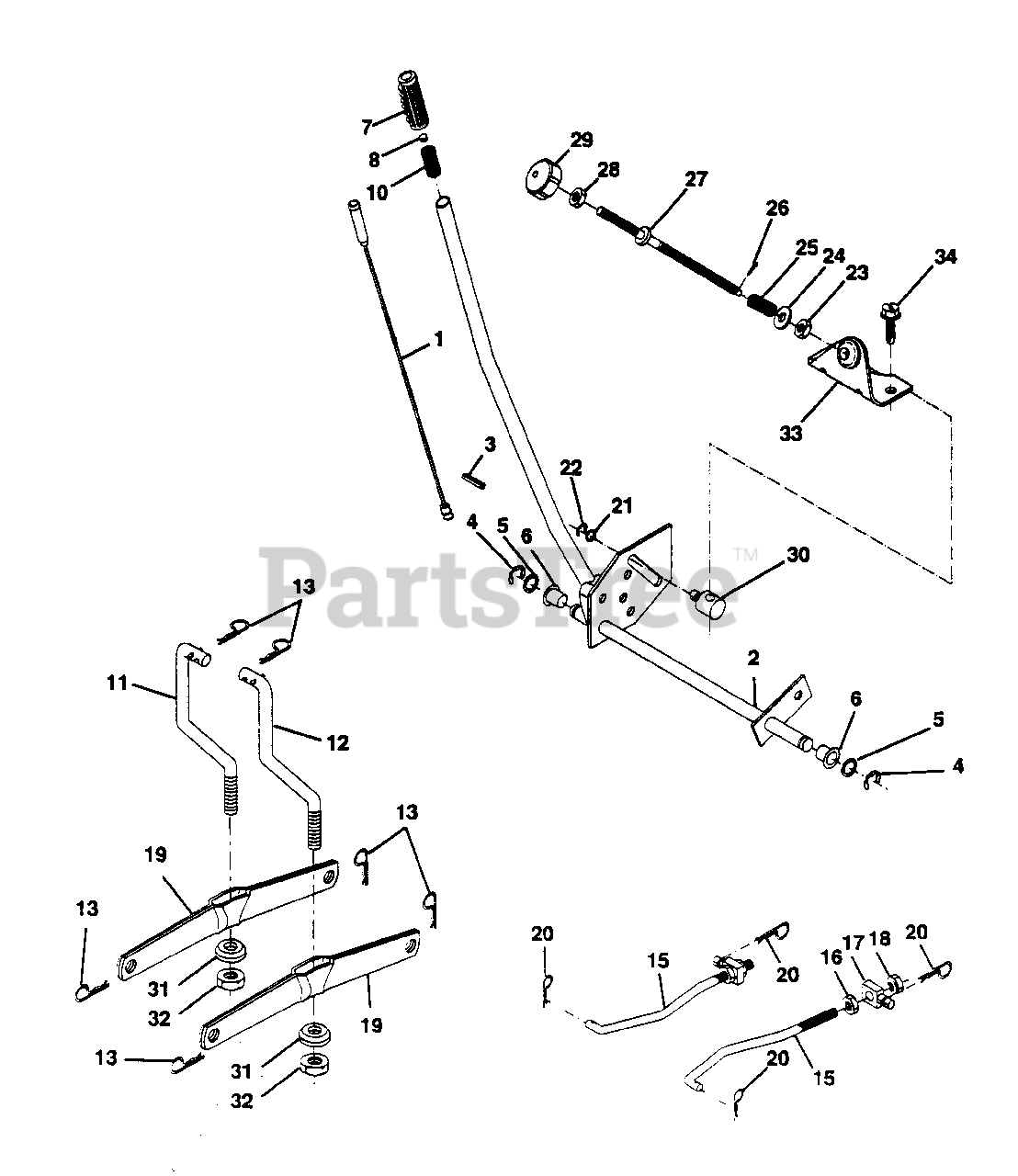

LIFT Parts Diagram

  • Title

1

Electrolux/AYP 532136973

Wire Asm Inner w/plunger

$

$

Not available

2

Electrolux/AYP 532140278

Shaft Asm Lift LH Inf Hgt P/L

$

$

Not available

3

Electrolux/AYP 532138284

Pin Groove

$6.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 812000002

E Ring #5133-62

$7.49

$

In Stock, Qty 11

0

5

Electrolux/AYP 819211621

Washer PLTD 21/32 X 1 X 21ga

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 532120183

Bearing Nylon Blk 629 Id

$6.49

$

In Stock, Qty 7

0

7

Electrolux/AYP 532109413

Grip Handle Bicycle Matte Blk
(Superseded to 532125631)

$6.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 532124526

Button Plunger Black
(Superseded to 532125925)

$

$

Not available

10

Electrolux/AYP 532122512

Spring Cprsn 3 750 Oiled

$7.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532139865

Link Lift LH
(Superseded to 532145537)

$26.99

$

In Stock, Qty 9

0

12

Electrolux/AYP 532139866

Link Lift RH
(Superseded to 532145536)

$12.99

$

In Stock, Qty 9

0

13

Electrolux/AYP 532124670

Retainer Spring
(Superseded to 532085902)

$

$

Not available

15

Electrolux/AYP 532127218

Link Front

$17.99

$

In Stock, Qty 5

0

16

Electrolux/AYP 873350800

Nut Jam Hex 1/2-13 Unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532130171

Trunnion Blk Zinc
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP 873800800

Nut Lock W/wsh 1/2-13unc
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 532139868

Arm Suspension Rear

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532124660

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 819151216

Washer 15/32 X 3/4 X 16ga
(Superseded to 19151216)

$

$

Not available

22

Electrolux/AYP 812000037

Ring Klip

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532110807

Nut Special

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 819131016

Washer 13/32 x 5/8 x 16 ga

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 532124874

Spring 2-1/8
(Superseded to 532002876)

$7.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 876020308

Pin Cotter 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

27

Electrolux/AYP 532126971

Rod Adj Lift

$7.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 873350600

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

29

Electrolux/AYP 532138057

Knob Inf 3/8-16 UNC

$8.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 532110810

Trunnion Dp Stop

$21.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532140302

Bearing Pivot Lift Spherical
(Superseded to 532169865)

$

$

Not available

32

Electrolux/AYP 873540600

Nut Crownlock 3/8-24

$3.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 532140168

Bracket Stop Inf Hgt

$

$

Not available

34

Electrolux/AYP 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0
