PP 16H36R B - Poulan Pro Lawn Tractor (2006-05) Bagger Parts Diagram

Lawn Tractor

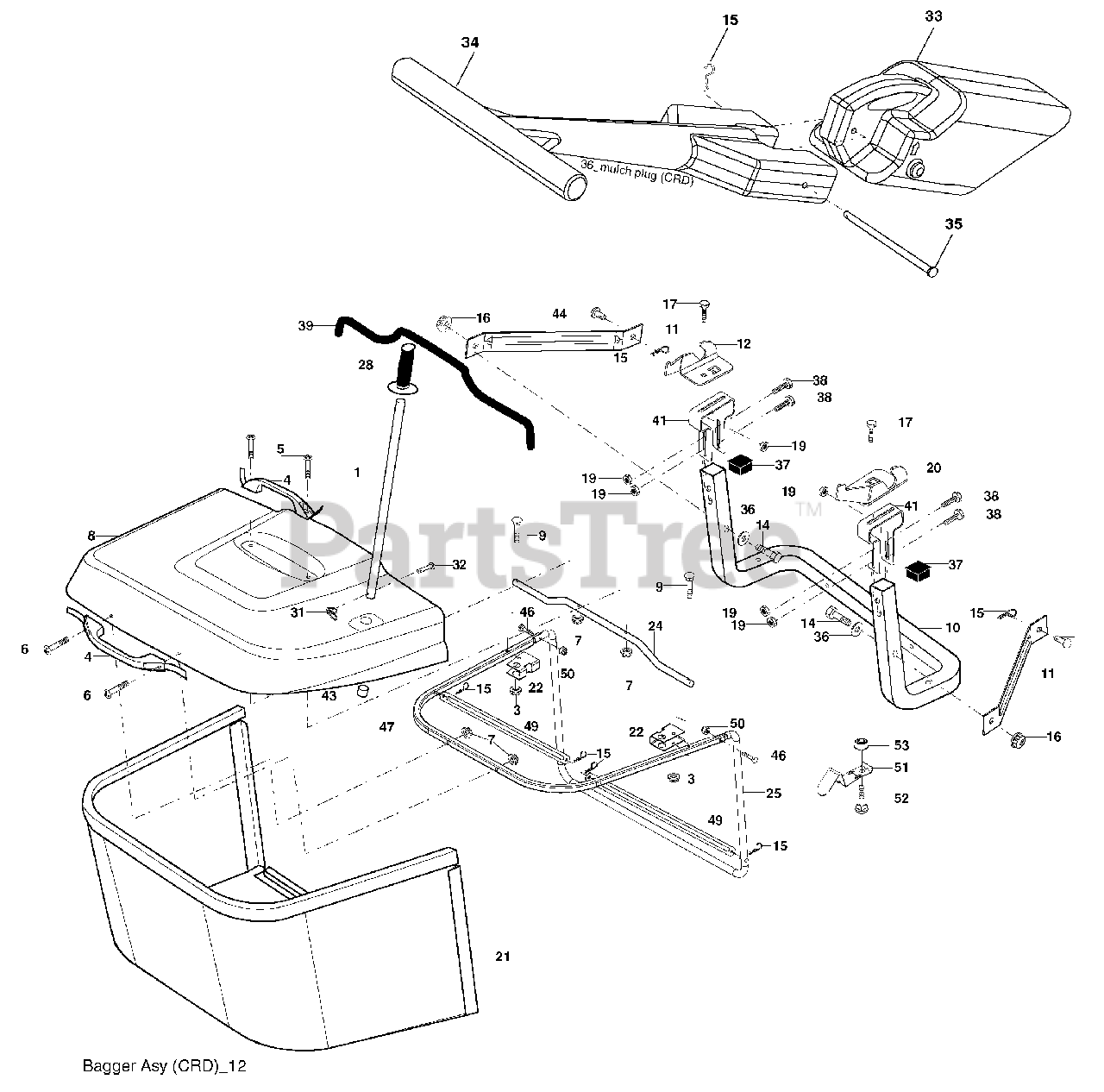

Bagger Parts Diagram

  • Title

1

Electrolux/AYP 532165249

Tube Handle Bagger CRD
(Superseded to 532170690)

$

$

Not available

3

Electrolux/AYP 532123976

Nut Lock 1/4 Lge Flg Gr. 5 Zinc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 532169916

Handle Bagger w/Lvrs Blk CRD

$7.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 874981024

Screw Pan Head #10-24 x 1.50

$9.99

$

In Stock, Qty 18

0

6

Electrolux/AYP 874981032

Screw Pan Hd
(Superseded to 532750029)

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 873401000

Nut Wiz Lock Hex Serr/Hd 10-24

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532182514

Cover Bagger

$11.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 872140418

Bolt Carr. 1/4-20 x 2.25d x Gr. 5
(Superseded to 583789901)

$2.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532181282

Tube Support Bagger CRD
(Superseded to 583110201)

$

$

Not available

11

Electrolux/AYP 532165719

Bracket Support Upper Bag CRD
(Superseded to 165719)

$11.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532188848

Bracket Pivot LH
(Superseded to 583173701)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 874520636

Bolt RDHD SQNK 3/8-16 x 2-1/4 Gr. 5
(Superseded to 596564404)

$3.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 532124670

Retainer Spring
(Superseded to 532085902)

$

$

Not available

16

Electrolux/AYP 873900600

Nut Lock Flg 3/8-16 unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 872140506

Bolt Rdhd Sht Sqnk 5/16 -18 unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 532188847

Bracket Pivot RH
(Superseded to 188847)

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532193838

Bag Asm CRD

$

$

Not available

22

Electrolux/AYP 532165781

Bracket Side Bagger CRD
(Superseded to 532428236)

$6.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532165783

Tube Pivot Bagger CRD
(Superseded to 165783)

$22.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532193705

Tube Front Bagger CRD
(Superseded to 583211601)

$103.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532165787

Grip Handle

$6.49

$

In Stock, only 3 left!

0

31

Electrolux/AYP 532169484

Retainer Clip
(Superseded to 596029401)

$3.99

$

In Stock, Qty 14

0

32

Electrolux/AYP 532126875

Rivet Rd Hd Drilled 3/8 Dia.

$6.49

$

In Stock, Qty 20+

0

33

Electrolux/AYP 532165571

Plug Mulcher
(Superseded to 583448501)

$

$

Not available

34

Electrolux/AYP 532165570

Handle Mulcher

$60.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532165572

Pin Mulcher
(Superseded to 574988601)

$

$

Not available

36

Electrolux/AYP 819132012

Washer 13/32 x 1-1/4 x 12 Ga.

$1.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532175401

Plug Support Bagger CRD

$

$

Not available

38

Electrolux/AYP 872010520

Bolt 5/16-18 x 2-1/2

$6.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532180985

Seal
(Superseded to 532416257)

$36.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532169683

Bracket Pnt Adj Pvt Bagger CRD
(Superseded to 532432755)

$

$

Not available

43

Electrolux/AYP 532174083

Plug Tubing End

$7.49

$

In Stock, only 2 left!

0

44

Electrolux/AYP 532193312

Pin Clevis 3/8 x 11/16

$

$

Not available

46

Electrolux/AYP 872110510

Bolt carr 5/16-18 x 1-1/4 Gr. 5

$7.49

$

In Stock, Qty 20+

0

47

Electrolux/AYP 532193704

Tube Upper
(Superseded to 583211501)

$363.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 532193305

Bar Spreader
(Superseded to 583208201)

$4.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 873800500

Nut Lock Hx W/Insert 5/16-18 unc
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

51

Electrolux/AYP 532199903

Latch Spring
(Superseded to 583255601)

$30.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 872140406

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available
