PP 16H36R B - Poulan Pro Lawn Tractor (2006-05) Chassis and Enclosures Parts Diagram

Lawn Tractor

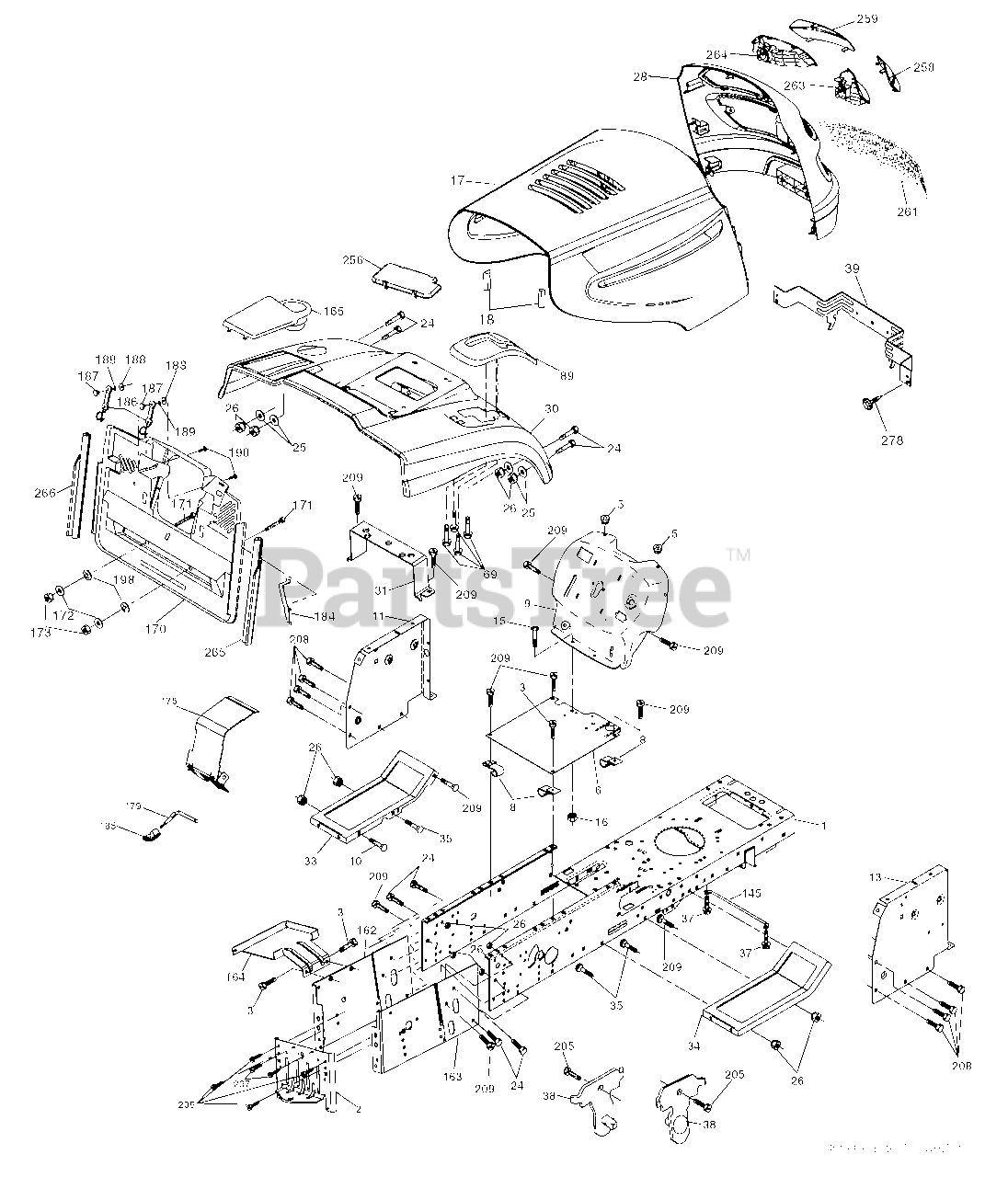

Chassis and Enclosures Parts Diagram

  • Title

1

Electrolux/AYP 532174620

Chassis
(Superseded to 174620)

$136.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532180384

Drawbar
(Superseded to 583101001)

$

$

Not available

3

Electrolux/AYP 817060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 532155272

Bumper Hood/Dash

$7.49

$

In Stock, Qty 5

0

6

Electrolux/AYP 532184419

Saddle
(Superseded to 583133601)

$12.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532126471

Clip Insulator 13/32 Mtg. Hole

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532405114

Dash

$

$

Not available

10

Electrolux/AYP 872140608

Bolt, Carriage 3/8-16 x 3/4
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532174996

Panel, Dash, L.H.
(Superseded to 174996)

$11.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532186952

Panel, Asm. Dash R.H.
(Superseded to 532186946)

$20.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 874180512

Screw, Machine, Truss Head 5/16-18 unc x 3/4

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 873510500

Nut
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532186580

Hood

$157.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532184921

Bumper Hood

$7.49

$

In Stock, Qty 12

0

24

Electrolux/AYP 874780616

Bolt

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 873800600

Nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532188224

Grille /Lens Asm

Note: (Includes Key nos. 258-261)

$

$

Not available

30

Electrolux/AYP 532197364

Fender

$133.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532165156

Bracket, Fender Support
(Superseded to 165156)

$

$

Not available

33

Electrolux/AYP 532182507

Footrest, L.H.

$27.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532182508

Footrest, R.H.

$27.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 872110606

Bolt

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 817490508

Screw Thdrol 5/16-18 x 1/2 TYT

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532181748

Bracket Asm Pivot Mower Rear
(Superseded to 583117401)

$9.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532174714

Bracket Pivot Laser LT
(Superseded to 532407807)

$26.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 532142432

Screw Hx Wsh Hi-Lo 1/4-1/2

$6.49

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 532197366

Console Crd Auto
(Superseded to 532197364)

$133.99

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 532156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 532180382

Bracket Exten Chassis Lh CRD
(Superseded to 583100801)

$47.99

$

Usually ships in 3-10 days

0

163

Electrolux/AYP 532180383

Bracket Exten Chassis Rh CRD
(Superseded to 583100901)

$42.99

$

Usually ships in 3-10 days

0

164

Electrolux/AYP 532165605

Support Battery CRD
(Superseded to 165605)

$

$

Not available

165

Electrolux/AYP 532181356

Cover Battery

$8.99

$

Usually ships in 3-10 days

0

170

Electrolux/AYP 532199488

Backplate CRD

$

$

Not available

171

Electrolux/AYP 872140620

Bolt Rdhd Sqnk 3/8-16 x 2-1/2 Gr. 5
(Superseded to 596337801)

$3.99

$

In Stock, Qty 20+

0

172

Electrolux/AYP 819132016

Washer 13/32 x 1-1/4 x 16 Ga.
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

173

Electrolux/AYP 873510600

Nut, Keps Hex 3/8-16 unc

$6.49

$

Usually ships in 3-10 days

0

175

Electrolux/AYP 532188203

Door Trap
(Superseded to 583707801)

$24.99

$

Usually ships in 3-10 days

0

179

Electrolux/AYP 532188202

Rod Pivot FBI CRD
(Superseded to 583170601)

$27.99

$

Usually ships in 3-10 days

0

184

Electrolux/AYP 532174662

Bracket Actuator Bagger CRD

$4.99

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 817968505

Knob Rod Brake Parking

$

$

Not available

186

Electrolux/AYP 532160793

Latch Asm Mulch/Bagger

$

$

Not available

187

Electrolux/AYP 532125004

Nut Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

188

Electrolux/AYP 819061216

Washer #10

$4.99

$

In Stock, Qty 20+

0

189

Electrolux/AYP 810071000

Washer Lock #10

$4.99

$

In Stock, Qty 20+

0

190

Electrolux/AYP 871081010

Screw Pan Hd Phillip 10-24 x 5/8

$6.49

$

Usually ships in 3-10 days

0

198

Electrolux/AYP 532168937

Nut, Push

$4.99

$

In Stock, only 1 left!

0

205

Electrolux/AYP 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

207

Electrolux/AYP 817670508

Screw Thdrol 5/16-18 x 1/2

$6.49

$

In Stock, only 2 left!

0

208

Electrolux/AYP 817670608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

In Stock, only 2 left!

0

209

Electrolux/AYP 817000612

Screw Hex Wsh Thdrol 3/8-16

$4.99

$

In Stock, Qty 20+

0

256

Electrolux/AYP 532181361

Cover Fender Rack

$3.99

$

Usually ships in 3-10 days

0

258

Electrolux/AYP 532189755

Lens Grille RH
(Superseded to 183835599)

$11.99

$

Usually ships in 3-10 days

0

259

Electrolux/AYP 532189754

Lens Grille LH
(Superseded to 183834599)

$

$

Not available

261

Electrolux/AYP 532189753

Insert Grille

$

$

Not available

263

Electrolux/AYP 532183833

Bezel Grille RH

$

$

Not available

264

Electrolux/AYP 532183832

Bezel Grille LH

$21.99

$

Usually ships in 3-10 days

0

265

Electrolux/AYP 532185704

Seal Side RH Bagger
(Superseded to 583146701)

$21.99

$

Usually ships in 3-10 days

0

266

Electrolux/AYP 532185703

Seal Side LH Bagger
(Superseded to 583146601)

$21.99

$

Usually ships in 3-10 days

0

278

Electrolux/AYP 532191611

Screw 10 x 3/4 Single Head Hex
(Superseded to 532416358)

$3.99

$

In Stock, Qty 20+

0

278

Electrolux/AYP 532005479

Plug, Button

$4.99

$

Usually ships in 3-10 days

0

278

Electrolux/AYP 532187801

Plug Switch Light

$4.99

$

Usually ships in 3-10 days

0
