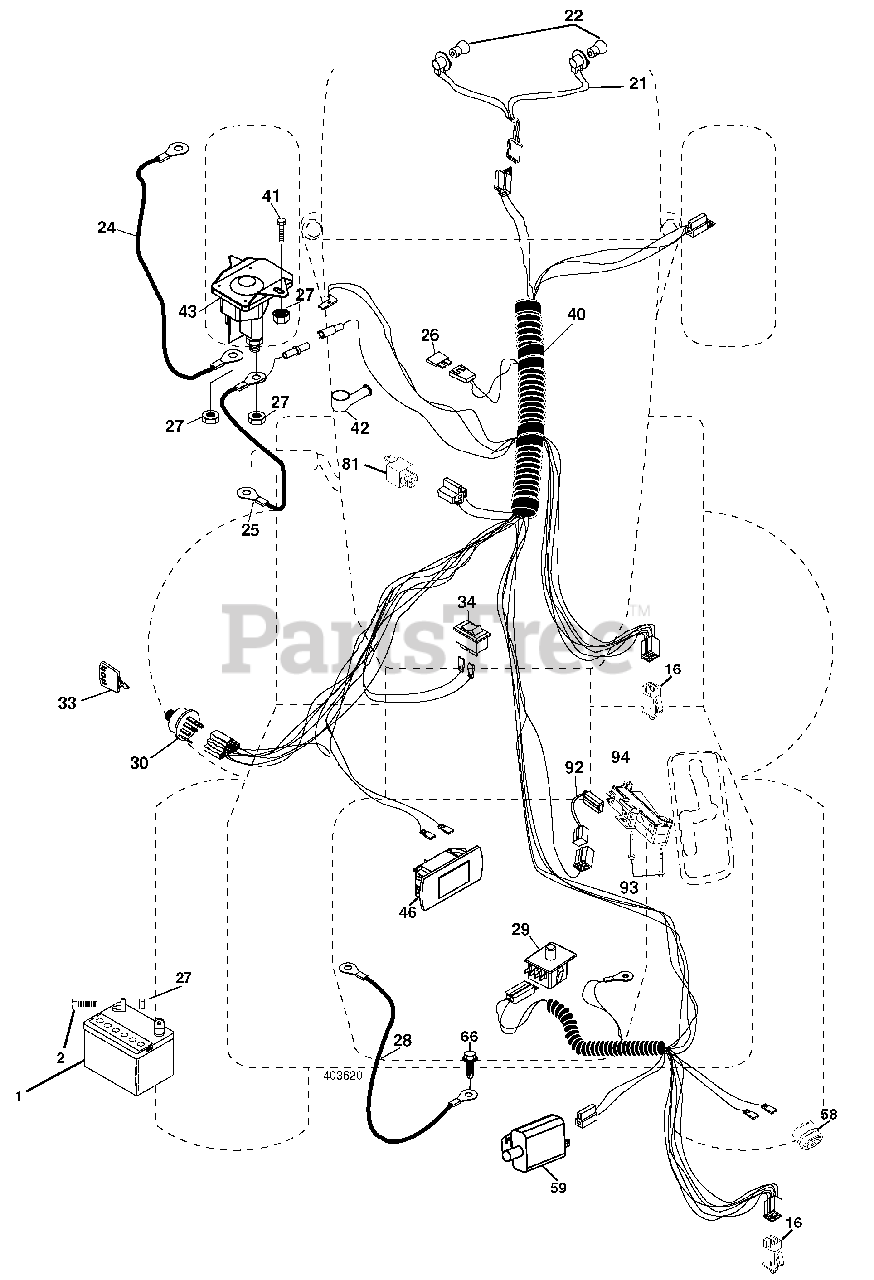

PP 16H36R B - Poulan Pro Lawn Tractor (2006-05) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Electrolux/AYP 532163465

Battery
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 874760412

Bolt Hex Hd 1/4-20 unc x 3/4

$7.49

$

In Stock, Qty 5

0

16

Electrolux/AYP 532176138

Switch Interlock

$15.99

$

In Stock, Qty 6

0

21

Electrolux/AYP 532183759

Harness Asm Light W/4152J

$47.99

$

In Stock, only 3 left!

0

22

Electrolux/AYP 532004152

Bulb Light #1156

$4.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 532124780

Cable Starter 6 Ga. 11" Red
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532165987

Cable Battery Crd 56" Red

$30.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532175158

Fuse

$7.49

$

In Stock, Qty 13

0

27

Electrolux/AYP 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 532127725

Cable Ground 6 Ga. 18" Black

$

$

Not available

29

Electrolux/AYP 532192749

Switch Seat

$21.99

$

In Stock, Qty 8

0

30

Electrolux/AYP 532193350

Switch Ignition

$13.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 532140401

Key Ignition

$6.49

$

In Stock, Qty 20+

0

34

Electrolux/AYP 532110712

Switch Light/Reset B/B/Red

$8.99

$

In Stock, Qty 12

0

40

Electrolux/AYP 532403620

Harness Ignition

$

$

Not available

41

Electrolux/AYP 871110408

Bolt Flk Fin Hex 1/4-20 unc x 1/2
(Superseded to 71110408)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 532192507

Solenoid
(Superseded to 582042802)

$13.99

$

In Stock, Qty 20+

0

46

Electrolux/AYP 532198138

Gauge Service Reminder/Hrmtr Rect
(Superseded to 532401763)

$24.99

$

In Stock, Qty 20+

0

58

Electrolux/AYP 532169419

Buzzer Crd
(Superseded to 532169420)

$72.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 532180379

Switch FBI CRD
(Superseded to 583100701)

$15.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 817490608

Screw Thdrol 3/8-16 x 1/2 Ty-Tt

$6.49

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 532109748

Relay Asm

$34.99

$

In Stock, only 1 left!

0

92

Electrolux/AYP 532196615

Harness Pigtail Console ROS

$18.99

$

In Stock, only 1 left!

0

93

Electrolux/AYP 532192540

Screw Plastite 10-14 x 2.0

$4.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 532191834

Module Reverse ROS

$37.99

$

In Stock, only 2 left!

0
