PP 16H44 B - Poulan Lawn Tractor (1992) LIFT ADJUSTMENT Parts Diagram

Lawn Tractor

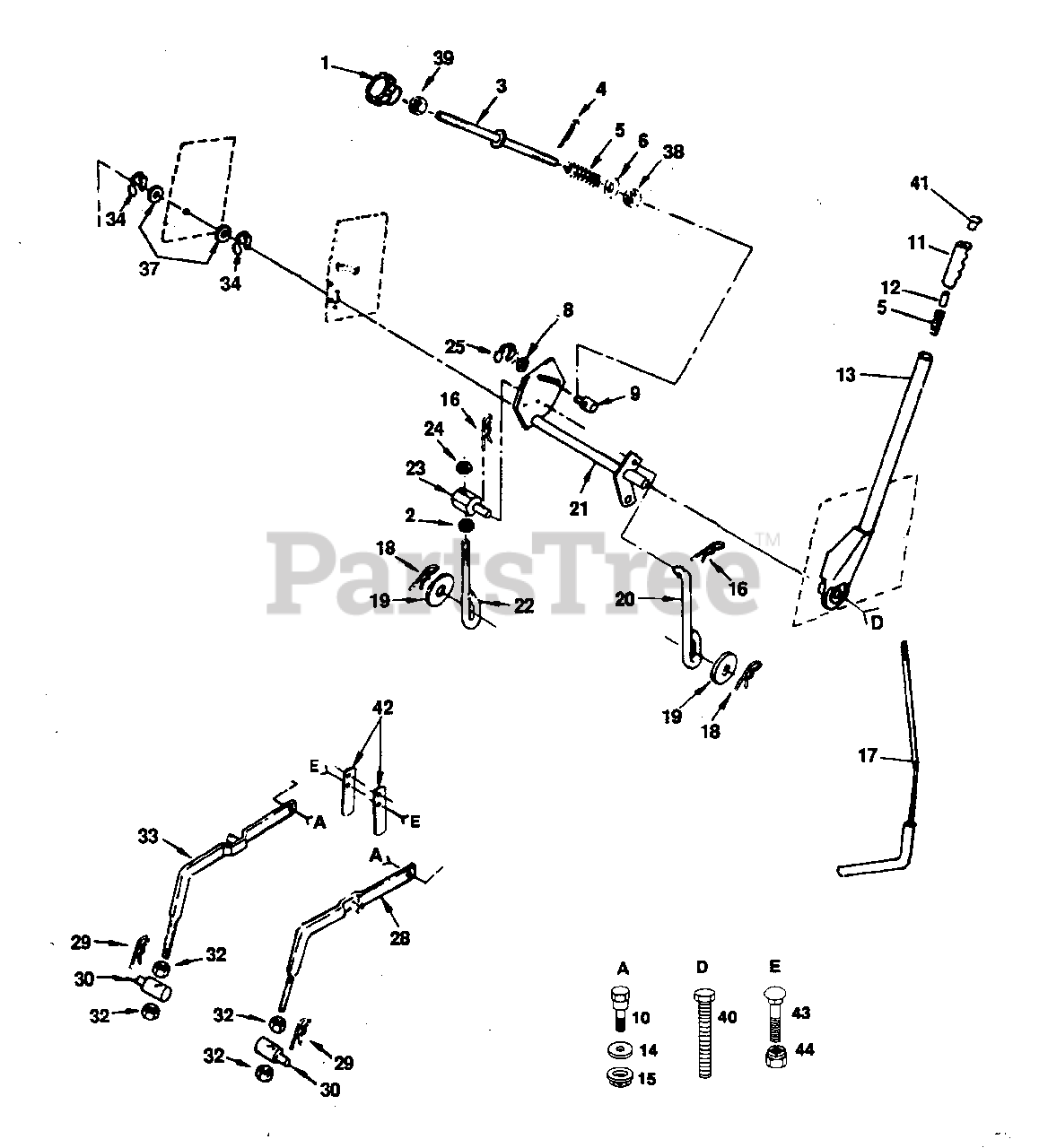

LIFT ADJUSTMENT Parts Diagram

  • Title

1

Electrolux/AYP 532121891

Knob, Depth Adjustment
(Superseded to 121891X)

$

$

Not available

2

Electrolux/AYP 873360700

Nut, Hex 3/8-16

$5.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532110729

Rod, Adjust, Lift

$

$

Not available

4

Electrolux/AYP 876020308

Pin, Cotter 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

5

Electrolux/AYP 532124874

Spring
(Superseded to 532002876)

$7.49

$

In Stock, only 1 left!

0

6

Electrolux/AYP 819131016

Washer 13/32 x 5/8 x 16 Ga.

$6.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 819151216

Washer 15/32 x 3/4 x 16 Ga.
(Superseded to 19151216)

$

$

Not available

9

Electrolux/AYP 532110810

Trunnion

$21.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532105848

Bolt, Shoulder 3/8-16

$

$

Not available

11

Electrolux/AYP 532109413

Grip Handle
(Superseded to 532125631)

$6.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 532122364

Plunger, Lever
(Superseded to 532125925)

$

$

Not available

13

Electrolux/AYP 532121002

Lever, Lift
(Superseded to 532123096)

Note: (Includes Key No. 17)

$

$

Not available

14

Electrolux/AYP 532110739

Spring Washer

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 873980600

Center Lock Flange Nut 3/8 x 16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532124670

Retainer, Spring
(Superseded to 532085902)

$

$

Not available

17

Electrolux/AYP 532121006

Rod, Lever

$34.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532124961

Retainer Spring
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

19

Electrolux/AYP 819171516

Washer, 17/32 x 15/16 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

20

Electrolux/AYP 532110029

Link, Lift

$

$

Not available

21

Electrolux/AYP 532131925

Shaft, Lift

$

$

Not available

22

Electrolux/AYP 532110448

Link Lift, Adjust

$7.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532110447

Trunnion, Lift
(Superseded to 532132793)

$

$

Not available

24

Electrolux/AYP 873710700

Nut, Lock 7/16-14
(Superseded to 73710700)

$2.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 812000037

Klip Ring

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532121598

Arm, Suspension R.H.

$

$

Not available

29

Electrolux/AYP 532124960

Retainer, Spring
(Superseded to 532009135)

$4.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532106308

Trunnion, Lift, Lower
(Superseded to 532130171)

$

$

Not available

32

Electrolux/AYP 873220800

Nut, Hex Fin. 1/2- 13
(Superseded to 873350800)

$

$

Not available

33

Electrolux/AYP 532121599

Arm, Suspension, L.H.

$

$

Not available

34

Electrolux/AYP 812000022

E - Ring, Truarc

$6.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 819292016

Washer 29/32 x 1-1/4 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532110807

Nut, Special

$3.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 873350600

Nut, Hex Jam 3/8 x 16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

40

Electrolux/AYP 874780624

Bolt, Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

$

$

Not available

41

Electrolux/AYP 532124526

Button, Plunger
(Superseded to 532125925)

$

$

Not available

42

Electrolux/AYP 532121252

Upstop, Mower

$4.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 872140608

Bolt, Carriage 3/8-16 x 1
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0
