PP 16H44 B - Poulan Lawn Tractor (1992) PUMP ASSEMBLY Parts Diagram

Lawn Tractor

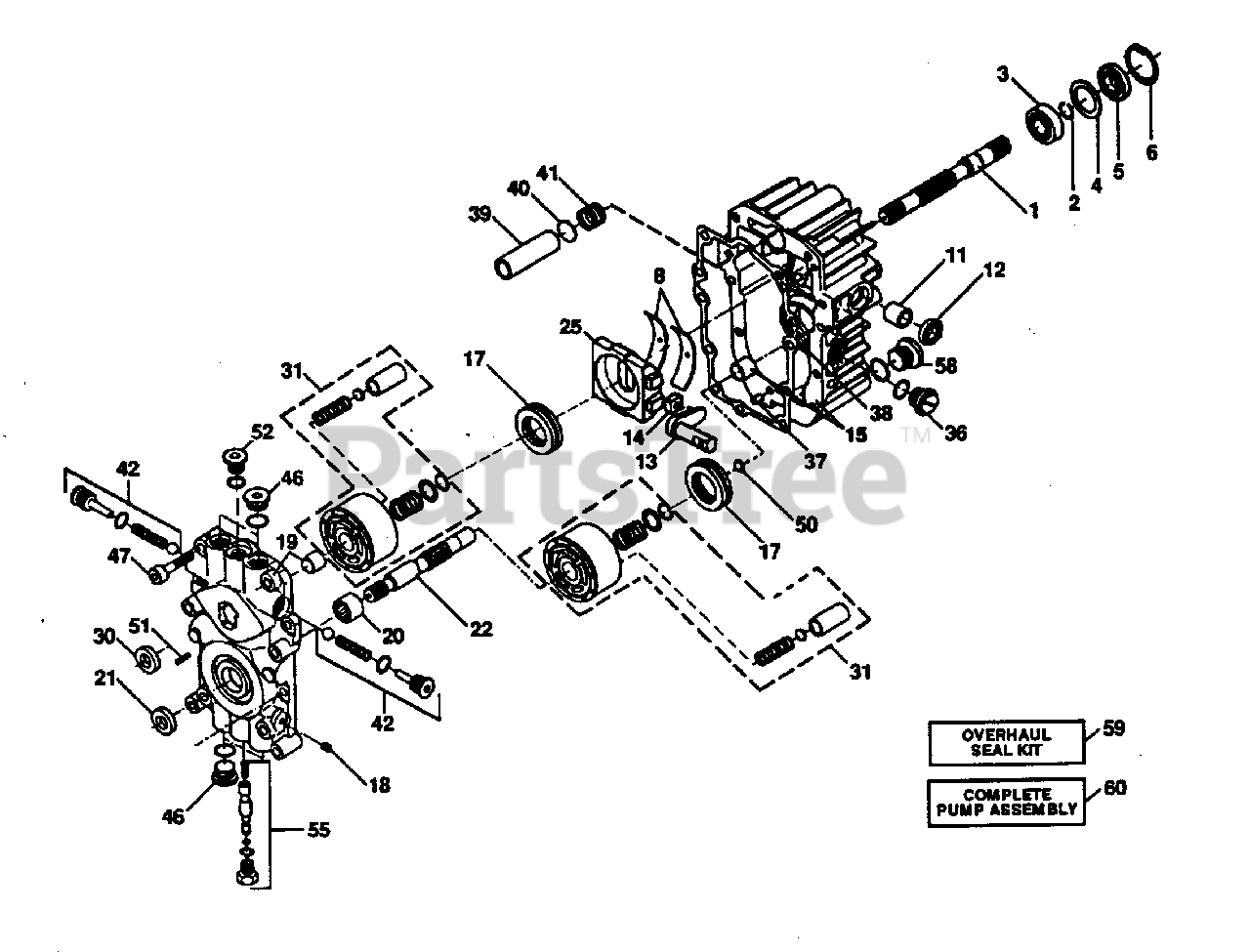

PUMP ASSEMBLY Parts Diagram

  • Title

1

Electrolux/AYP 532122756

Shaft, Pump
(Superseded to 122756X)

$

$

Not available

2

Electrolux/AYP 532122716

Ring, Retaining
(Superseded to 532142928)

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532122745

Bearing, Ball
(Superseded to 122745X)

$85.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532122715

Spacer

$

$

Not available

5

Electrolux/AYP 532122700

Seal, Lip
(Superseded to 532142932)

$14.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532122699

Ring, Retaining

$

$

Not available

8

Electrolux/AYP 532122767

Bearing, Cradle

$

$

Not available

11

Electrolux/AYP 532122747

Bearing, Journal

$

$

Not available

12

Electrolux/AYP 532122717

Seal, Lip

$

$

Not available

13

Electrolux/AYP 532122748

Arm, Trunnion

$

$

Not available

14

Electrolux/AYP 532122749

Guide, Slot
(Superseded to 122749X)

$

$

Not available

15

Electrolux/AYP 532127146

Housing Kit, Transmission
(Superseded to 532121430)

$

$

Not available

17

Electrolux/AYP 532122770

Bearing, Thrust, Ball
(Superseded to 532150771)

$36.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532122771

Plug, Pipe

$

$

Not available

19

Electrolux/AYP 532127147

Center Section Kit

$

$

Not available

20

Electrolux/AYP 532122773

Bearing, Needle

$78.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532122722

Seal, Lip
(Superseded to 122722X)

$6.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532122750

Shaft, Motor

$

$

Not available

25

Electrolux/AYP 532127148

Swashplate, Variable

$

$

Not available

30

Electrolux/AYP 532122723

Seal, Lip

$9.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532127149

Block Kit, Cylinder

$

$

Not available

36

Electrolux/AYP 532127151

Plug, Plastic

$

$

Not available

37

Electrolux/AYP 532122786

Pin, Stainless, Headless

$

$

Not available

38

Electrolux/AYP 532122718

Gasket, Center Section

$10.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532122731

Filter
(Superseded to 122731X)

$62.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 532122730

Washer, Thrust
(Superseded to 122730X)

$

$

Not available

41

Electrolux/AYP 532122728

Spring, Helical, Compression
(Superseded to 122728X)

$

$

Not available

42

Electrolux/AYP 532127152

Check Valve Kit

$26.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 532122787

Plug, Stainless, Threaded

$

$

Not available

47

Electrolux/AYP 532122752

Screw, Socket Head, Cap

$

$

Not available

50

Electrolux/AYP 532122788

Washer, Thrust

$

$

Not available

51

Electrolux/AYP 532122789

Pin, Spiral
(Superseded to 122789X)

$

$

Not available

52

Electrolux/AYP 532122754

Plug, Stainless, Threaded

$

$

Not available

55

Electrolux/AYP 532127153

Bypass Valve Kit

$94.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 532122790

Plug, Stainless, Threaded

$

$

Not available

59

Electrolux/AYP 532127154

Overhaul Seal Kit,BDU-10
(Superseded to 127154X)

Note: (Inc. 2,4,5,6,12,21, 30,38;O-Rings for Check Valves&Bypass Valve)

$

$

Not available

60

Electrolux/AYP 532121430

Pump Assembly, Complete

$

$

Not available
