PP 16H44 C - Poulan Lawn Tractor (1993) LIFT ADJUSTMENT Parts Diagram

Lawn Tractor

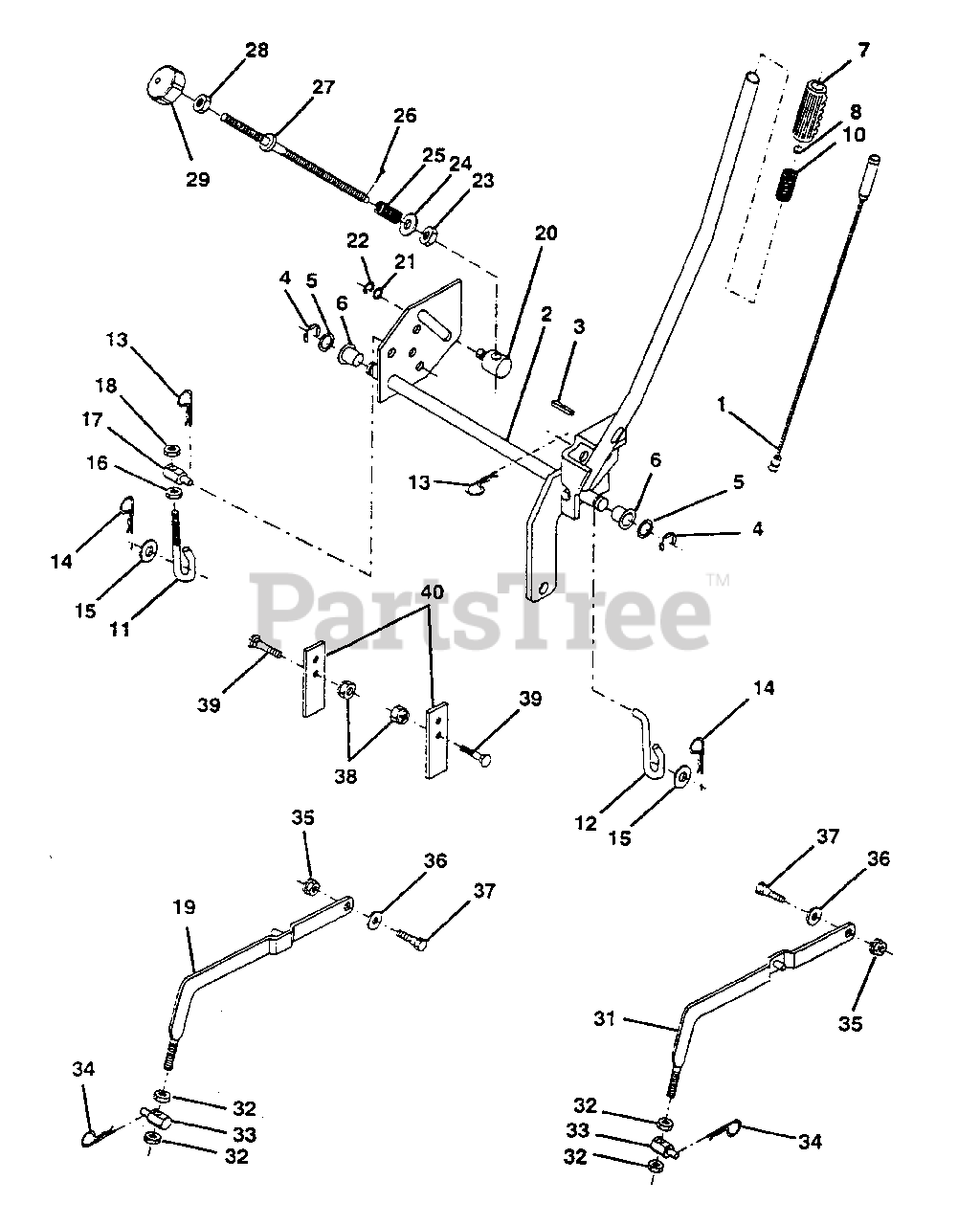

LIFT ADJUSTMENT Parts Diagram

  • Title

1

Electrolux/AYP 532136971

Wire Asm Inner W/Plunger 20 56
(Superseded to 532159461)

$15.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532136969

Shaft Asm Lift RH w/Inf W/T
(Superseded to 532138496)

$24.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532138284

Pine Groove 1 500 Zinc

$6.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 812000002

E Ring #5133-62

$7.49

$

In Stock, Qty 11

0

5

Electrolux/AYP 819211416

Washer 21/32 x 7/8 x 16 Ga.
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532120183

Bearing Nylon Bld 629 Id

$6.49

$

In Stock, Qty 8

0

7

Electrolux/AYP 532109413

Grip Handle Fluted Blk
(Superseded to 532125631)

$6.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 532124526

Button Plunger Black
(Superseded to 532125925)

$

$

Not available

10

Electrolux/AYP 532122512

Spring Cprsn 3 750 Oiled

$7.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532110448

Link, Lift LH

$7.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532110029

Link, Lift RH

$

$

Not available

13

Electrolux/AYP 532124961

Retainer Spring
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

14

Electrolux/AYP 532124670

Retainer Spring
(Superseded to 532085902)

$

$

Not available

15

Electrolux/AYP 819171516

Washer 17/32 x 15/16 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

16

Electrolux/AYP 873360700

Nut Hex 7/16-20 UNF

$5.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532110447

Trunnion Lift
(Superseded to 532132793)

$

$

Not available

18

Electrolux/AYP 873710700

Nut, Crownlock 7/16-20
(Superseded to 73710700)

$2.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532121599

Arm Suspension LH 44"

$

$

Not available

20

Electrolux/AYP 532124670

Retainer Spring
(Superseded to 532085902)

$

$

Not available

21

Electrolux/AYP 819151216

Washer 15/32 x 3/4 x 16 Ga.
(Superseded to 19151216)

$

$

Not available

22

Electrolux/AYP 812000037

Ring Klip #t5304-37

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532110807

Nut Special

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 819131016

Washer 13/32 x 5/8 x 16 Ga.

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 532124874

Spring 2-1/8"
(Superseded to 532002876)

$7.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 876020308

Pin Cotter 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

27

Electrolux/AYP 532110729

Rod Adj Lift Zinc 9 00 Wrk Lg

$

$

Not available

28

Electrolux/AYP 873350600

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

29

Electrolux/AYP 532138057

Knob Inf 3/8-16 Unc Blk W/sym

$8.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 532110810

Trunnion Dp Stop Dbl Thds PLT

$21.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532121598

Arm. Asm. Suspension RH 44"

$

$

Not available

32

Electrolux/AYP 873220800

Nut Hex 1/2-13 Unc
(Superseded to 873350800)

$

$

Not available

33

Electrolux/AYP 532106308

Trunnion Lift Lower
(Superseded to 532130171)

$

$

Not available

34

Electrolux/AYP 532124960

Retainer Spring
(Superseded to 532009135)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 873980600

Nut Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532110739

Washer, Spring, Oiled

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532105848

Bolt Shoulder 3/8-16

$

$

Not available

38

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

39

Electrolux/AYP 872140608

Bolt Carriage 3/8-16 x 1
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532121252

Upstop Mower

$4.99

$

Usually ships in 3-10 days

0
