PP 175G46 (960420195-00) - Poulan Lawn Tractor (2016-08) ENGINE Parts Diagram

Lawn Tractor

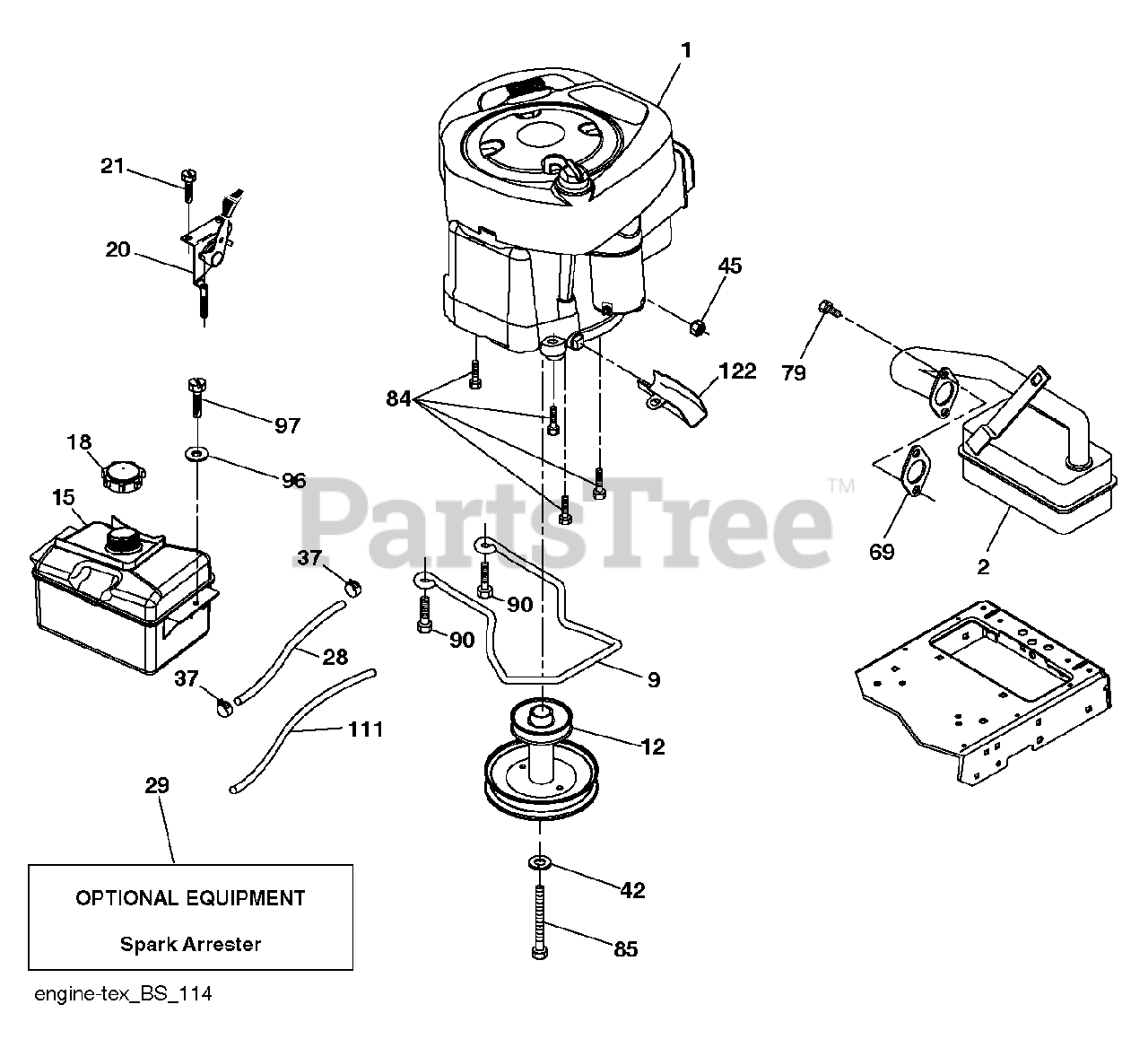

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: ENGINE B S MODEL NO 31R907-0018-G1 (586044401)

$

$

Not available

2

Poulan 532137352

MUFFLER.LT.BRIGGS.14HP.IC/OHV

$53.99

$

In Stock, Qty 19

0

9

Poulan 582540302

KEEPER.BELT.ENG.3.25"2BOLT.PNT

$8.49

$

Usually ships in 3-10 days

0

12

Poulan 532405140

PULLEY.ENGINE.5.0.PD

$37.99

$

Usually ships in 3-10 days

0

15

Poulan 532433003

TANK.ASM.1.5GAL.FRT.W/CAP.EPA

$

$

Not available

18

Poulan 581176101

CAP.FUEL.2 WAY VENT

$39.99

$

In Stock, only 2 left!

0

20

Poulan 532170545

(Superseded to 583045801)

$35.99

$

In Stock, only 2 left!

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 9

0

28

Poulan 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$14.99

$

In Stock, only 2 left!

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

Note: FLAT SCRN

$203.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

45

Poulan 873510400

NUT
(Superseded to 586668901)

Note: 7351040

$3.99

$

In Stock, Qty 20+

0

69

Poulan 532165291

(Superseded to 532272293)

$14.99

$

Usually ships in 3-10 days

0

79

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

84

Poulan 817060620

SCREW.3/8-16

Note: 1706062

$7.49

$

In Stock, Qty 20+

0

85

Poulan 501606501

Hex Bolt, 7/16-20 X 4-1/4" Grade 5

$3.99

$

In Stock, only 2 left!

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

96

Poulan 819091416

WASHER
(Superseded to 596135301)

Note: 1909141

$3.99

$

In Stock, Qty 6

0

97

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

Note: 1767041

$4.99

$

In Stock, only 2 left!

0

111

Poulan 532414119

RP PURGE LINE
(Superseded to 587044580)

$15.99

$

Usually ships in 3-10 days

0

122

Poulan 532421922

EXTENSION DRAIN OIL

$31.99

$

In Stock, Qty 6

0
