PP 195 - Poulan Pro String Trimmer CUTTING HEAD & DRIVE SHAFT Parts Diagram

String Trimmer

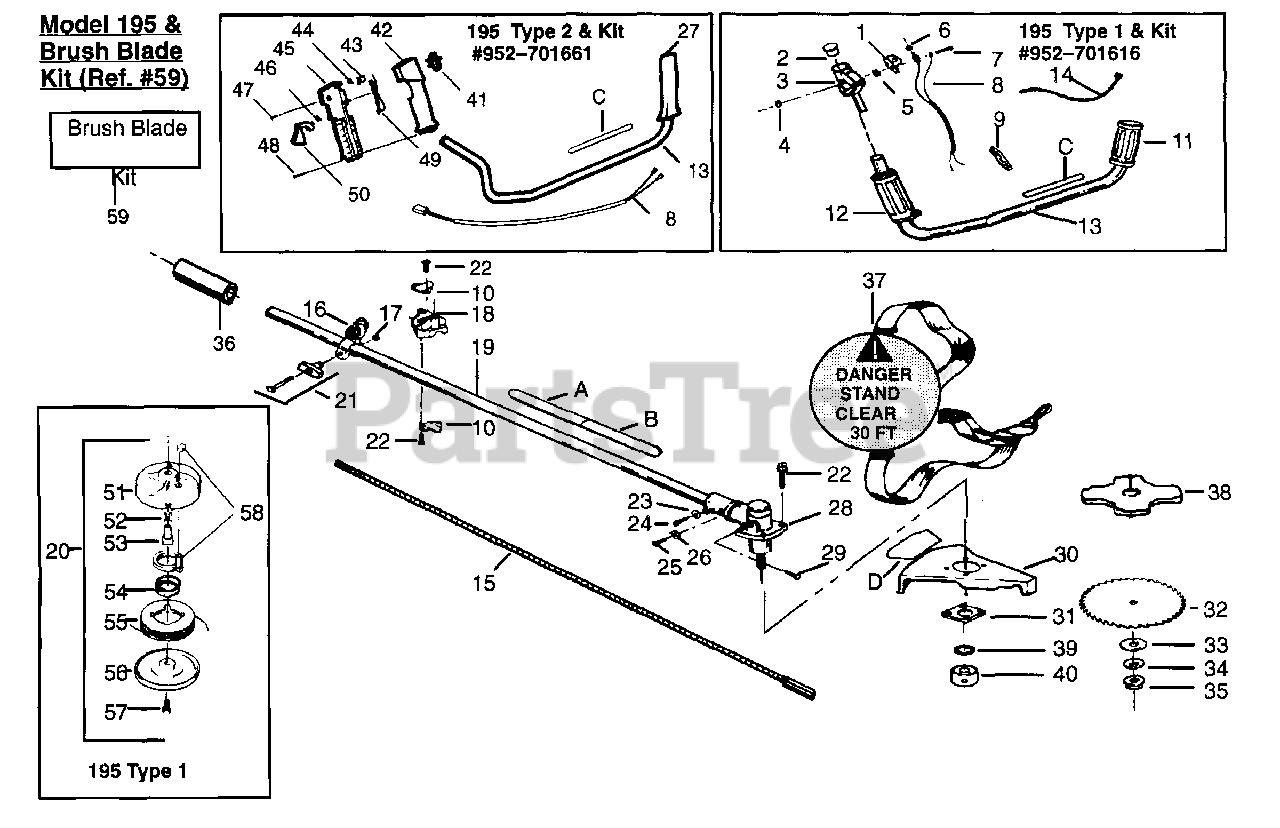

CUTTING HEAD & DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 530027900

Switch Bracket

$

$

Not available

2

Poulan 530027588

Handlebar Cap

$

$

Not available

3

Poulan 530010965

Throttle Lever Ass'y w/Lock(Incl 4 & 17)

$

$

Not available

4

Poulan 530015768

Nut

$3.49

$

In Stock, Qty 12

0

5

Poulan 530027689

Spacer

$

$

Not available

6

Poulan 530023575

Nut
(Superseded to 530002582)

$

$

Not available

7

Poulan 530015767

Screw

$3.49

$

In Stock, only 2 left!

0

8

Poulan 530027726

Type 1

$

$

Not available

8

Poulan 530047144

Type 2

$

$

Not available

9

Poulan 530027893

Terminal Lock

$

$

Not available

10

Poulan 530094572

Handlebar Backet

$3.49

$

In Stock, only 1 left!

0

11

Poulan 530027766

Handlebar Grip-Right

$

$

Not available

12

Poulan 530027736

Handlebar Grip-Left

$

$

Not available

13

Poulan 530014103

Type 1

$

$

Not available

13

Poulan 530047139

Type 2

$

$

Not available

14

Poulan 530091426

Tie Strap

$

$

Not available

15

Poulan 530094566

Drive Shaft

$96.99

$

Usually ships in 3-10 days

0

16

Poulan 530094686

Clamp-Harness Ass'y

$

$

Not available

17

Poulan 530015197

Nut

$3.49

$

In Stock, only 3 left!

0

18

Poulan 530012207

Handlebar Clamp

$

$

Not available

19

Poulan 530094650

Drive Shaft Housing

$

$

Not available

20

Poulan 530094689

Twin Line Cutting Head

$

$

Not available

21

Poulan 530069252

"T" Handle Ass'y
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

22

Poulan 530015791

Screw (Use w/Metal Shield)

$

$

Not available

23

Poulan 530015328

Lockwasher

$

$

Not available

24

Poulan 530094612

Screw

$

$

Not available

25

Poulan 530001711

Screw

$2.49

$

In Stock, only 1 left!

0

26

Poulan 530001642

Lockwasher

$

$

Not available

27

Poulan 502145101

Grip-Handlebar-Type 2
(Superseded to 502145102)

$22.99

$

Usually ships in 3-10 days

0

28

Poulan 530094568

Gear Box Ass'y
(Superseded to 530071781)

$

$

Not available

29

Poulan 530094616

Screw

$

$

Not available

30

Poulan 530094627

Metal Shield
(Superseded to 530094633)

$

$

Not available

31

Poulan 530027615

Shield Retention Plate.

$13.99

$

Usually ships in 3-10 days

0

32

Poulan 952711508

8" Brush Blade
(Superseded to 530054867)

$

$

Not available

33

Poulan 530015792

Washer-Flat-Blade

$5.99

$

In Stock, only 1 left!

0

34

Poulan 530015492

Washer-Blade
(Superseded to 530016240)

$4.99

$

In Stock, only 2 left!

0

35

Poulan 530015793

Nut-Blade

$5.99

$

In Stock, only 2 left!

0

36

Poulan 530027706

Pad-Drive Shaft Hsg.

$

$

Not available

37

Poulan 530094417

Shoulder Strap

$

$

Not available

38

Poulan 952711506

4-Point Blade Optional

$

$

Not available

39

Poulan 530094640

Seal-Gear Box

$

$

Not available

40

Poulan 530094639

Dust Cup

$

$

Not available

41

Poulan 503718201

Rocker Switch

$14.99

$

In Stock, Qty 9

0

42

Poulan 502208502

Throttle Housing-Left
(Superseded to 502208507)

$28.99

$

Usually ships in 3-10 days

0

43

Poulan 502209602

Throttle Lock

$

$

Not available

44

Poulan 502209701

Throttle Spring
(Superseded to 530403152)

$3.49

$

In Stock, only 2 left!

0

45

Poulan 502208602

Throttle Housing - Right

$

$

Not available

46

Poulan 502199301

Trigger Spring
(Superseded to 503794101)

$3.49

$

In Stock, only 3 left!

0

47

Poulan 503210719

Screw

$

$

Not available

48

Poulan 503210738

Screw

$

$

Not available

49

Poulan 502199403

Throttle Lockout

$

$

Not available

50

Poulan 502199203

Trigger

$

$

Not available

51

Poulan 530091656

Hub

$

$

Not available

52

Poulan 530091424

Line Saver

$

$

Not available

53

Poulan 530094690

Drive Adaptor

$

$

Not available

54

Poulan 530091657

Spring

$

$

Not available

55

Poulan 952711515

Spool w/Line

$

$

Not available

56

Poulan 530091424

Cover

$

$

Not available

57

Poulan 530091662

Screw

$

$

Not available

58

Poulan 530093602

Release Button Ass'y

$

$

Not available

59

Poulan 952701661

Brush Blade Kit (Inc. 8, 10, 13, 16-19, 22, 27, 30, 31-37 & 41-50)

$

$

Not available

A

Poulan 530029162

Warning-Upper

$

$

Not available

B

Poulan 530029163

Warning-Lower

$

$

Not available

C

Poulan 530027884

Handlebar Warning

$

$

Not available

D

Poulan 530027749

Blade Direction (Not a serviceable part)

$

$

Not available
