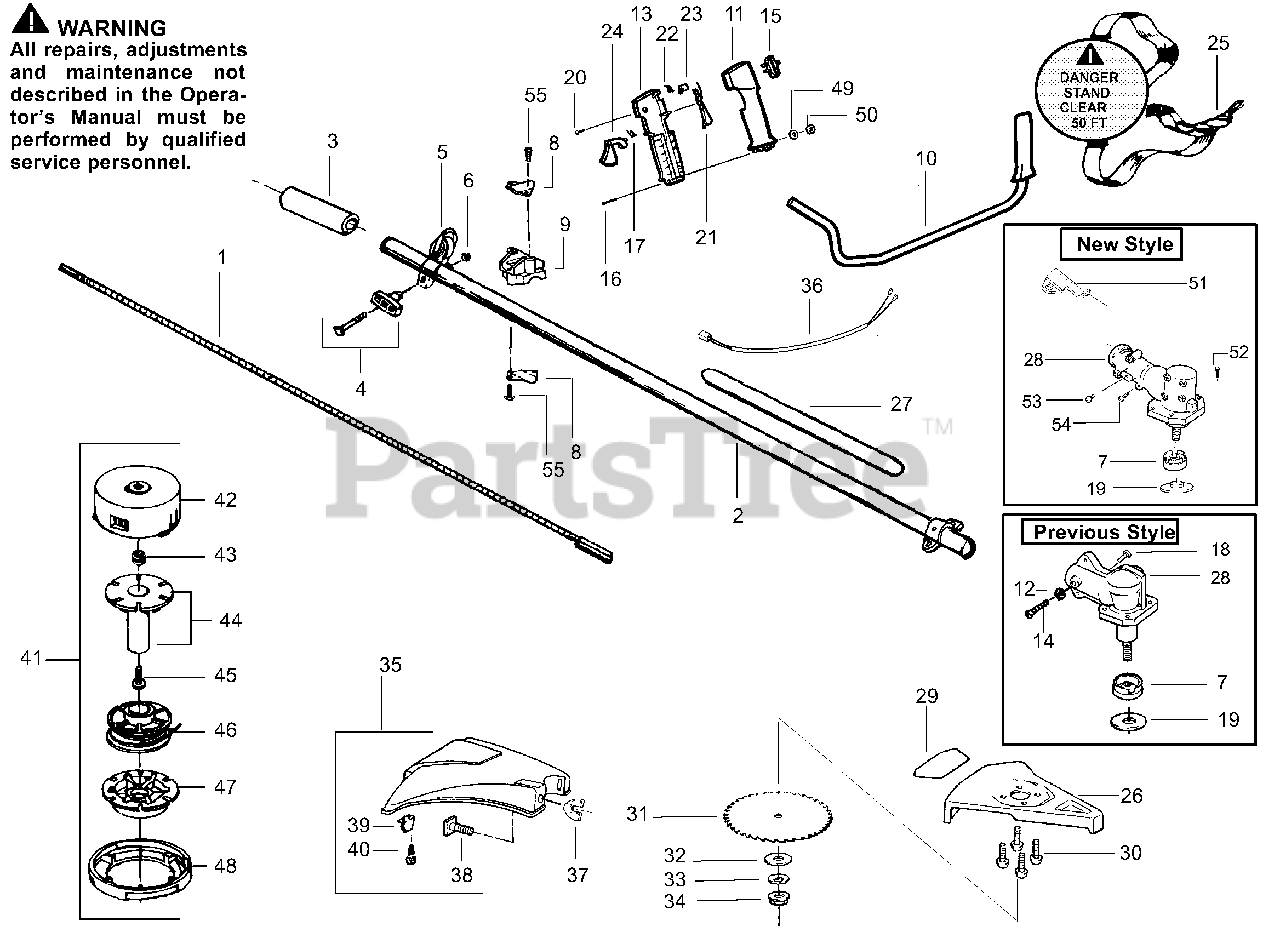

PP 196 - Poulan Pro String Trimmer Drive Shaft & Cutting Head Parts Diagram

String Trimmer

Drive Shaft & Cutting Head Parts Diagram

  • Title

1

Flex-Shaft-57"

Note: Refer To The Service Reference Indicated For More Information. (Located At End Of IPL)

$

$

Not available

2

Drive Shaft Housing

Note: Refer To The Service Reference Indicated For More Information. (Located At End Of IPL)

$

$

Not available

3

Poulan 530027706

Pad-Drive Shaft

$

$

Not available

4

Poulan 530069252

"T" Handle Ass'y.
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

5

Poulan 530094686

Clamp Harness Assy.

$7.49

$

Usually ships in 3-10 days

0

6

Poulan 530015197

Nut

$6.49

$

In Stock, Qty 5

0

7

Dust Cup

Note: Refer To The Service Reference Indicated For More Information. (Located At End Of IPL)

$

$

Not available

8

Poulan 530094572

Handlebar Bracket

$3.99

$

In Stock, only 1 left!

0

9

Poulan 530012207

Clamp-Handlebar

$8.99

$

Usually ships in 3-10 days

0

10

Poulan 530047139

Handlebar Ass'y.

$

$

Not available

11

Poulan 502208507

Throttle Hsg. Left

$24.99

$

Usually ships in 3-10 days

0

12

Poulan 530015328

Lockwasher-Locator

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 502208607

Throttle Hsg. Right

$

$

Not available

14

Poulan 530016140

Screw-Locator

$2.49

$

Usually ships in 3-10 days

0

15

Poulan 503718201

Rocker Switch

$13.99

$

In Stock, Qty 9

0

16

Poulan 530015933

Screw

$0.99

$

Usually ships in 3-10 days

0

17

Poulan 502199301

Trigger Spring
(Superseded to 503794101)

$6.99

$

In Stock, Qty 6

0

18

Poulan 530015650

Screw-Pinch Clamp

$

$

Not available

19

Washer-Blade Ret.

Note: Refer To The Service Reference Indicated For More Information. (Located At End Of IPL)

$

$

Not available

20

Poulan 503210719

Screw

$2.49

$

In Stock, only 1 left!

0

21

Poulan 502199403

Throttle Lockout

$

$

Not available

22

Poulan 530403152

Spring Throttle Lock

$3.99

$

In Stock, only 4 left!

0

23

Poulan 502209602

Throttle Lock

$2.49

$

Usually ships in 3-10 days

0

24

Poulan 502199203

Throttle Trigger

$

$

Not available

25

Poulan 530094417

Shoulder Strap

$

$

Not available

26

Poulan 530069780

Blade Shield Kit

$

$

Not available

27

Poulan 530055349

Shaft Warning Decal

$

$

Not available

28

Gear Box Ass'y.

Note: Refer To The Service Reference Indicated For More Information. (Located At End Of IPL)

$

$

Not available

29

Poulan 530049211

Decal Blade Direction

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 530016141

Screw

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 952701610

Brush Blade
(Superseded to 952711585)

$

$

Not available

32

Poulan 530015792

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 530015492

Washer-Spring Bevel
(Superseded to 530016240)

$6.49

$

In Stock, Qty 5

0

34

Poulan 530015793

Nut-Flange

$6.49

$

In Stock, Qty 10

0

35

Poulan 530069779

Shield Kit Ass'y.

Note: (Incls. 37-40)

$

$

Not available

36

Poulan 530053255

Wire Harness Ass'y.

$7.49

$

Usually ships in 3-10 days

0

37

Poulan 530401992

Wingnut
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

38

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

39

Poulan 530052285

Line Limiter

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

41

Poulan 952711565

Cutting Head Ass'y.

Note: (Incls. 42-48)

$

$

Not available

42

Poulan 530014194

Hub Ass'y.

$

$

Not available

43

Poulan 530094956

Spring

$0.99

$

Usually ships in 3-10 days

0

44

Poulan 530069312

Locking Plate Kit

$

$

Not available

45

Poulan 530015542

Screw

$

$

Not available

46

Poulan 952711564

Spool w/Line

$

$

Not available

47

Poulan 530094522

Release Button

$

$

Not available

48

Poulan 530094521

Cover

$10.99

$

Usually ships in 3-10 days

0

49

Poulan 530016285

Washer, Split Lock

$

$

Not available

50

Poulan 530016284

Nut

$4.99

$

In Stock, only 4 left!

0

51

Poulan 530095812

Bracket-Shield (Type 3)

$3.99

$

Usually ships in 3-10 days

0

52

Poulan 530016312

Screw (Type 3)

$6.49

$

In Stock, Qty 6

0

53

Poulan 530016301

Screw (Type 3)

$6.49

$

In Stock, only 4 left!

0

54

Poulan 530016309

Screw (Type 3)

$4.99

$

Usually ships in 3-10 days

0

55

Poulan 530015791

Screw

$3.99

$

Usually ships in 3-10 days

0

Poulan 530088777

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530031098

Hex Wrench (3/16)

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

Poulan 530031159

Hex Wrench (5/32)

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
