PP 19A42 (960460078-00) - Poulan Pro Lawn Tractor (2015-09) ELECTRICAL Parts Diagram

Lawn Tractor

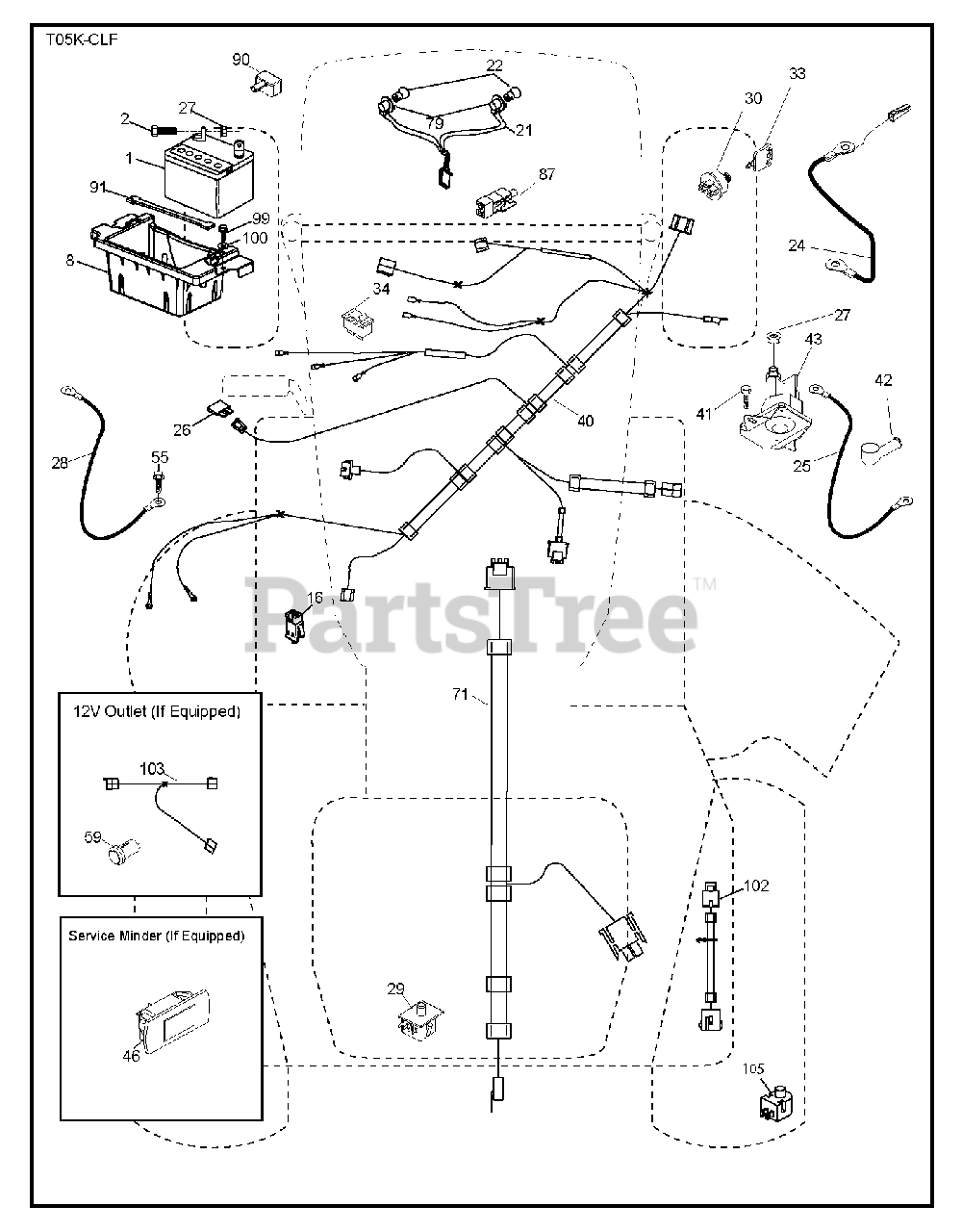

ELECTRICAL Parts Diagram

  • Title

1

Poulan 532144925

(Superseded to 532123899)

$205.99

$

In Stock, only 2 left!

0

2

Poulan 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

8

Poulan 532414126

TRAY.ASM.BATTERY.FRT.TEX.CARB

$39.99

$

In Stock, only 1 left!

0

16

Poulan 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 13

0

21

Poulan 532400252

HARNESS.LIGHT W/4152J BULBS

$26.99

$

Usually ships in 3-10 days

0

22

Poulan 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

24

Poulan 585555601

Battery Cable with Wire, Front 8 Ga 8

$9.49

$

In Stock, only 4 left!

0

25

Poulan 585555501

Starter Cable, 8 Ga 17.5"

$9.49

$

In Stock, Qty 6

0

26

Poulan 532175158

FUSE 20AMP

$7.49

$

In Stock, Qty 16

0

27

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Poulan 532416588

Ground Cable, 21" Black 8 Ga 90T

$13.99

$

Usually ships in 3-10 days

0

29

Poulan 532192749

SWITCH.SEAT.DP W/RAMPS

$21.99

$

In Stock, only 4 left!

0

30

Poulan 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$26.99

$

In Stock, Qty 20+

0

33

Poulan 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA

$

$

Not available

34

Poulan 532110712

SWITCH LT

$9.49

$

In Stock, Qty 9

0

40

Poulan 532401098

HARNESS IGN. DASH

$120.99

$

In Stock, Qty 6

0

41

Poulan 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

42

Poulan 532131563

TERMINAL COVER
(Superseded to 532154336)

$6.99

$

In Stock, Qty 10

0

43

Poulan 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$28.99

$

In Stock, Qty 20+

0

55

Poulan 817060512

SCREW 5/16"
(Superseded to 817490508)

$

$

Not available

71

Poulan 532194276

HARNESS-CHASSIS SUB

$34.99

$

In Stock, only 1 left!

0

79

Poulan 532175242

BULB HOLDER ASM.

$11.99

$

Usually ships in 3-10 days

0

87

Poulan 532197802

SWITCH.INTRLCK.CLUTCH.

$20.99

$

In Stock, only 4 left!

0

90

Poulan 532435395

COVER.TERMINAL.BATTERY

$5.99

$

In Stock, only 2 left!

0

91

Poulan 532190270

STRAP.BATTERY.MOUNT.FRONT

$7.99

$

In Stock, Qty 9

0

99

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

100

Poulan 819091416

WASHER

$

$

Not available

102

Poulan 581023401

HARNESS.PIGTAIL.VARIATOR.SD

$24.99

$

Usually ships in 3-10 days

0

105

Poulan 532407568

REVERSE SWITCH

$17.99

$

In Stock, Qty 6

0
