PP 2050 - Poulan Pro Lawn Tractor ATTACHING PARTS Parts Diagram

Lawn Tractor

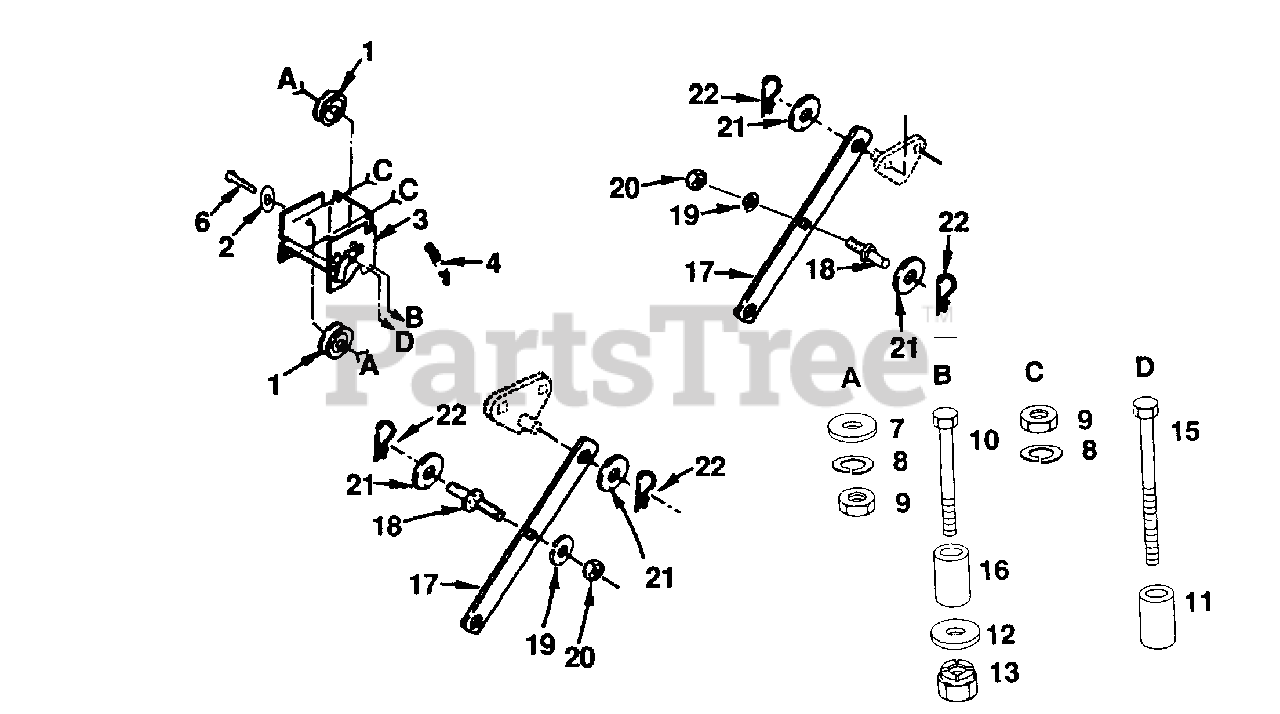

ATTACHING PARTS Parts Diagram

  • Title

1

Poulan 532124858

Pulley, Idler (AYP part number)

$

$

Not available

2

Poulan 819133808

Washer 13/32 x 2-3/8 x 8 Gauge (AYP part number)
(Superseded to 583789501)

$

$

Not available

3

Poulan 532120542

Bracket, Idler (AYP part number)

$

$

Not available

4

Poulan 532007190

Spring (AYP part number)

$

$

Not available

6

Poulan 874760632

Bolt, Hex 3/8-16 x 2 (AYP part number)
(Superseded to 874930632)

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 819131413

Washer 13/32 x 7/8 x 13 Gauge (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

8

Poulan 810040600

Washer, Lock 3/8 (AYP part number)
(Superseded to 539990118)

$3.49

$

Usually ships in 3-10 days

0

9

Poulan 873220600

Nut, Hex 3/8-16 (AYP part number)

$6.49

$

In Stock, only 4 left!

0

10

Poulan 874930516

Bolt, Hex 5/16-18 x 1 (AYP part number)
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 532100644

Bushing, Handle, Clutch (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 819111416

Washer 11/32 x 7/8 x 16 Gauge (AYP part number)
(Superseded to 734116541)

$5.99

$

Usually ships in 3-10 days

0

13

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

15

Poulan 874760636

Bolt, Hex 3/8-16 x 2-1/4 (AYP part number)

$6.49

$

In Stock, only 1 left!

0

16

Poulan 532102933

Spacer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

17

Poulan 532105429

Arm, Suspension (AYP part number)

$

$

Not available

18

Poulan 532105413

Stud, Pivot Center (AYP part number)

$

$

Not available

19

Poulan 810040800

Washer, Lock 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 873220800

Nut, Hex 1/2-13 (AYP part number)
(Superseded to 873350800)

$

$

Not available

21

Poulan 819171616

Washer 17/32 x 1-1/6 x 13 Gauge (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

22

Poulan 532124960

Retainer Spring (AYP part number)
(Superseded to 532009135)

$4.99

$

Usually ships in 3-10 days

0
